Konektory RX anténní

Antenna coupler RX series

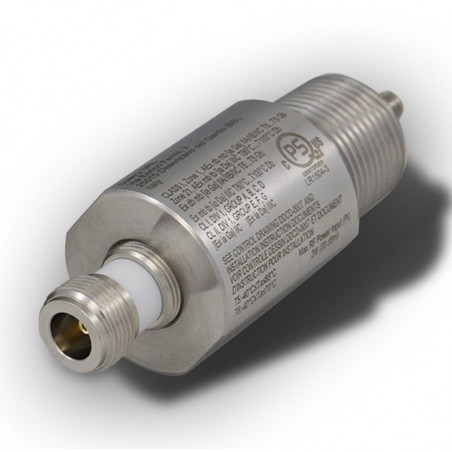

Solexy’s patented (7,057,577)Explosion-Proof Anten- na Coupler permits the installation of a passive antenna in hazardous areas. This coupler is designed to be used directly with listed explosion proof housings or conduit fittings. An integrated blocking circuit prevents potentially hazardous energy from reaching the antenna in case of radio, modem, or access point failure. It also allows for antenna removal in hazardous areas. The coupler’s robust design allows for connection to practically any radio and antenna. It is a highly flexible and cost effective solution to hazardous area radio system deployment. The coupler can also be used as a cable bulkhead.



Features
Short Circuit Protection Includes integrated blocking circuitry.
No Sealing Fitting Required Fitting is approved for hazardous locations and can be installed with a simple wrench.
Environmental Protection 300 series stainless steel construction and integral potting protects electronics from corrosive environments.
Flexibility Permits a wide variety of passive antennas to be installed in hazardous areas. Antennas may be removed and/or installed with power on. Perfect for a cable bulkhead connection
Certification The RX Series is certified Atex and IECEx as an apparatus, and can be installed per the conditions of acceptability, without further assessment.

Speciofications

ATEX Apparatus Certification I M2 (M1) Ex db mb [ia Ma] I Mb
II 2 (1) G Ex db mb [ia Ga] IIA/IIB/IIC T5/T6 Gb
II 2 (1) D Ex tb mb [ia Da] IIIC T100oC/T80oC Db
UL Component Certification Class I, II Div I Group A, B, C, D, F, G (UL File nr E358609)
Maximum Fault Voltage 250V DC, 250V AC, 50-60 Hz
Maximum Antenna Power Output (EIRP)
Grupa IEC I i III IIA IIB IIC
Max Threshold Power Limit 6 W 6 W 3,5 W 2 W
Approximate Insertion Loss
Frequency 100MHz 500MHz 1,4GHz 1,7GHz 2,5GHz 3,9GHz 4,9GHz 5,4GHz 6,0GHz
version J 1,0 0,4 0,4 0,5 0,8

-

-

-

-
version R

-

 1,3 0,6 0,6 0,6 1,2 1,2 0,8 2,0
Approximate weight 0,32 kg
Impedance 50 Ω
Housing material series stainless steel 300
Ambient temperature range -40oC do +85oC


Dimensional drawings


nomenclature
RX N 3 S 02 00 J XO
  a b c dd ee f gg
a Antenna side coccector
  F RP-SMA female
  N N female
  S SMA female
b Theread connection
  3 3/4” NPT
  M M25x1.5 (IECEx and Atex only)
c Housing material
  S AISI 303
  L AISI 316L
dd Radio Side Connector
  02 RP-SMA Female (RXF and RXN only)
  04 SMA Female (RXS only)
ee Coax cable length radio side (optional on request)
  00 no cable (with connector on body
f Version (frequency range)
  J optimized from 100 MHz to 1.4 GHz
  R optimized from 500 MHz to 3.9 GHz
and from 4.6 GHz to 6 GHz
  L optimized from 3.9 GHz to 4.6 GHz
gg Approval
  N0 cURus Recognized Component Marking
  X0 IECEx and ATEX Apparatus Marking
  XN IECEx and ATEX Apparatus Marking and
cURus Recognized Component Marking
(dual marking)
