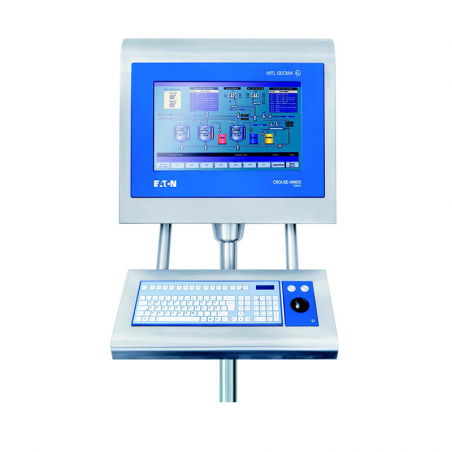

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

PC pro zónu 1/21 a 2/22 MTL Gecma

The MTL GECMA Work Station range has been designed to address the environmental challenges of obtaining visualisation within harsh and hazardous areas. Building upon decades of experience and expertise and the significantly large installed base of its predecessor, the MTL GECMA Work Station is packed full of features and state-of-the-art technology. The range includes Remote Terminal (RT), Thin Client (TC) and Personal Computer (PC) to meet a wide variety of applications. Suitable for the strictest of hygienic conditions and aggressive production environments, its slim, flexible modular construction also includes individually certified modules to allow safe maintenance even in hazardous areas.



Unique modular design concept - key features


The MTL GECMA PC is a powerful personal computer offering flexibility on software and incorporating a Quad Core 2GHz CPU with up to 8GB RAM and up to 256GB SSD. Numerous Ex i and Ex e connections are available, allowing easy integration of locally connected devices into the system such as barcode scanners, card readers or scales. A dual Ethernet port provides redundancy on the network connection increasing availability of the client on the network.







Electrical specification


  19" 22" 24"
Screen size 19" (48 cm) 21.5" (54 cm) 24" (61 cm)
Display 1280 x 1024 px, 5:4 picture format, 16.7 million colours 1920 x 1080 px, 16:9 picture format, 16.7 million colours 1920 x 1200 px, , 16:10 picture format, 16.7 million colours
Brightness 250 cd/m2
Contrast ratio 1000:1 typical
Viewing angle 170/160° typical at CR ≥ 10
Touch screen (optional) Rezystancyjny 5-przewodowy szklany ekran dotykowy
CPU Quad core Intel Celeron J1900
Frequency 2.42 GHz
Memory 4GB DDR3L (max. 8GB)
Video Intel Gen7 graphic engine
Terminal unit
Power supply AC 100-240V AC, 50/60Hz, DC 20-30V DC
Input power 80W (typical) / 88W (max)
Ethernet 2x Ex e 1000Mbps copper port OR 2x Ethernet fibre ports with 2x LC connectors (Single-Mode or Multi-Mode)
WatchDog Timer Output system reset, programmable counter from 1 ~ 255 minutes/seconds
Storage 64GB SSD (larger storage size upon request)
Serial 1x Ex e RS232, 1x Ex i RS232
USB 2x Ex e USB 2.0, 4x Ex i USB 2.0
Pointing devices 2x Ex i PS/2 pod klawiaturę lub Urządzenie wskazujące
Operating system Windows 10 Professional 64bit
Client application installed Remote desktop connection (pre-installed), others on request



Mechanical specification


  19" 22" 24"
Housing material Stainless steel
V2A, EN std 1.4301, SAE grade 304
V4A, EN std 1.4404, SAE grade 316L (optional)
Electro polishing (optional)
Weight 65 kg (full terminal) 69 kg (full terminal) 75 kg (full terminal)
Dimensions [mm] (W x H x D) 509 x 429 x 50 (W x H x D) 610 x 400 x 50 (W x H x D) 675 x 461 x 50
Module assembly dimension without housing [mm] 509 (W) x 429 (H) x 125 (D*) 610 (W) x 400 (H) x 125 (D*) 675 (W) x 461 (H) x 125 (D*)



Enviromental specification


Temperature Operating ambient temperature: -20°C to +50°C (10-90% RH, non-condensing)
Certified ambient temperature: -30°C to +60°C (10-90% RH, non-condensing)
Ambient storage temperature: -40°C to +70°C (10-90% RH, non-condensing)
Ingress protection Front IP66/NEMA 4 (when mounted and assembled correctly)



Certification


Authority Certificate Com Module: IECEx: SIR 16.0062X ATEX: 16ATEX5180X
Cecha Certificate Code Com Module: Ex eb mb[ib] op is IIC T4 Gb
