CI 6-50 stykače
  • CI 6-50 stykače

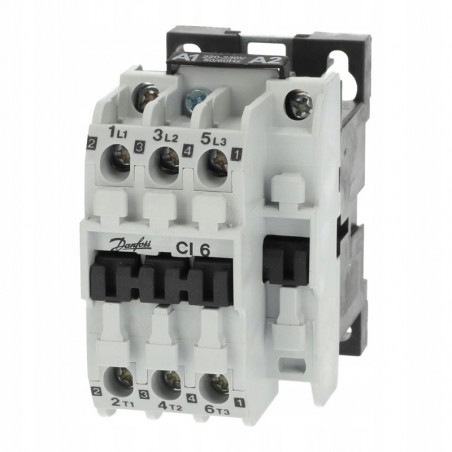

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: Danfoss

CI 6-50 stykače

Main circuit Additional contact Catalogue number Typ
 AC - 3 Load Ith
(AC - 1) open
[A]		 Ithe
(AC - 1) cased
[A]		 Max. Ith
(AC - 1)
open
[A]		 Main contact quantity
Ue
220-240 V
[kW]		 Ue
380-690 V [kW]		 Ie

[A]
CONTACTORS CI 6-50 WITH AC COIL
1/5 2,2 6 20 16 - 3 1-4 037H0015 Cl 6
1/5 2,2 6 20 16 - 4 1-4 037H0018 Cl 6
2,2 4 9 25 16 - 3 1-4 037H0021 Cl 9
2,2 4 9 25 16 - 4 1-4 037H0022 Cl 9
3 5,5 12 25 20 - 3 1-4 037H0031 Cl 12
3 5,5 12 25 20 - 4 1-4 037H0032 Cl 12
4 7,5 16 25 20 30 3 1-4 037H0049 Cl 15
4 7,5 16 25 20 30 4 1-4 037H0050 Cl 15
4 7,5 16 40 25 45 3 1-4 037H0041 Cl 16
5,5 10 20 40 25 45 3 1-4 037H0045 Cl 20
5,5 11 25 40 25 45 3 1-4 037H0051 Cl 25
7,5 15 30 40 30 50 3 1-4 037H0055 Cl 30
8,5 15 32 63 63 - 3 1-4 037H0061 Cl 32
10 18,5 37 80 63 - 3 1-4 037H0056 Cl 37
11 22 45 80 80 90 3 1-4 037H0071 Cl 45
15 25 52 80 80 90 3 1-4 037H0080 Cl 50
CONTACTORS CI 6-50 WITH DC COIL
1,5 2,2 6 20 16 - 3 1-3 037H0013 Cl 6
1,5 2,2 6 20 16 - 4 1-3 037H0014 Cl 6
2,2 4 9 25 16 - 3 1-3 037H0025 Cl 9
2,2 4 9 25 16 - 3 1-3 037H0026 Cl 9
3 5,5 12 25 20 - 3 1-3 037H0035 Cl 12
3 5,5 12 25 20 - 4 1-3 037H0036 Cl 12
4 7.5 16 40 25 45 3 1-3 037H0043 Cl 16
5,5 11 25 40 25 45 3 1-3 037H0053 Cl 25



Coil voltage Terminal number Coil for CI 6-30 Coil for CI 32-50
50Hz [V] 60Hz [V] Type Type
12 12 12 037H64861 -
20 24 14 037H6461 037H6061
24 24 13 037H64841 037H60841
24 29 16 037H6462 037H6062
42 50 17 037H6463 037H6063
48 57 18 037H6464 037H6064
92 110 21 037H6465 037H6065
110 110 23 037H64871 037H60871
- 115 24 037H64512 -
110 132 22 037H6466 037H6066
167 200 91 037H6470 -
- 208-230 28 037H64502 037H60502
183 220 29 037H6469 037H6069
200 240 30 037H6471 037H6071
220-230 220 32 037H64881 037H60881
220-230 - 31 037H6472 037H6072
220-240 - 34 037H64522 -
240 288 33 037H6473 037H6073
317 380 92 037H6476 -
380-400 440 37 037H6478 037H6078
380 - 96 037H64853 -
415 500 38 037H6479 037H6079
440 550 93 037H6477 -
500 600 94 037H6481 037H6081



Main circuit Control cricuit Catalogue number Type
AC 3 Load  AC 1 Load Coil PLC
Ue
220-240V
[kW]		 Ue
380-690V
[kW]		 Ie
[A]		 I th
[A]		 I the
[A]		 A2 - A2
[V]		 B+ - B-
[V]
2,2 4,0 9 25 16 24 V DC 24 V DC 037H8011 Cl 9 El 24
          220-240 V AC   037H8061 Cl 9 El 230
4,0 7,5*) 15 25 20 24 V DC 24 V DC 037H8013 Cl 15 El 24
          220-240 V AC   037H8063 Cl 15 El 230
5,5 11,0 25 40 25 24 V DC 24 V DC 037H8016 Cl 25 El 24
          220-240 V AC   037H8066 Cl 25 El 230
7,5 15,0 30 40 30 24 V DC 24 V DC 037H8017 Cl 30 El 24
          220-240 V AC   037H8067 Cl 30 El 230



Contact function Load Colour Catalogue number Type
Ie
(AC - 15)
[A]		 I th
(AC - 1)
open		 I the
(AC - 1) cased Ue
[V]
start 6 10 10 500 green 037H0110 CB - S
start, impuls2 6 10 10 500 green 037H0117 CB - I
short circuit 6 10 10 500 green 037H0111 CB - NO
open 6 10 10 500 red 037H0112 CB - NC
early short circuit 6 10 10 500 white 037H0113 CB - EM
late open 6 10 10 500 blue 037H0114 CB - LB
extra late open 6 10 10 500 black 037H0115 CB - DC



Contact function Load Colour Catalogue number Type
Ie
[mA]		 Ue
[V]
NO 1 - 30 5 - 30 white 037H0121 CB-NO
NC 1 - 30 5 -30 blue 037H0122 CB-NC










//

Méně
Přečtěte si více

Zašlete dotaz

Máte zájem o tento produkt? Potřebujete další informace nebo individuální ceny?

Kontaktujte nás
ZEPTEJTE SE O PRODUKT close
Děkujeme za zaslání zprávy. Odpovíme co nejdříve.
ZEPTEJTE SE O PRODUKT close
Procházet
pošlete dotaz

Přidat do seznamu přání

musíš být přihlášen
