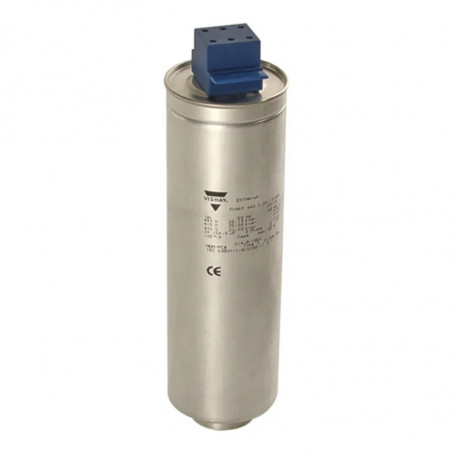

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: Vishay

Kondenzátory

It is possible to purchase the whole battery with regulator. For details please contact DACPOL
Electrical data:
Voltage range:
 230V/50Hz - 910V/50Hz
Power:
2,3kVAr - 250 kVAr
Standards:
IEC 831-1+2/88, EN 60831-1+2/93, VDE 560-46+47 3/95
Over voltage
Ucn + 10% (up to 8 hours per day)

Ucn + 15% (up to 30 minutes per day)

Ucn + 20% (up to 5 minutes)

Ucn + 30% (up to 1 minute)
Over current
1,3 * In,

1,3 * with 10% over voltage,

with 15% over capacity and THD


capacity tolerance
-5/ + 10%
Voltage test
(terminal - terminal) 2,15 * Ucn, AC, 2 sec

(terminal - casing) 4800 VAC, 2 sec
Test current
200 *In
Losses
< 0,50 W/kVAr
Life time:
> 100 000 hours
IP
IP00, IP43, IP54
Operation temperature
-25 -. 55°C )
Casing temperature
60°C
Cooling: Natural air

Humidity
max. 95%
Maximum operation height:
2000 m above sea level
Assembly
vertical
Assembly
4 holes Ø 9mm on the bottom
Protection
Over pressure safety device, self regenerating
Casing:
steel, plate
Dielectric
polypropylene foil , metallized with zinc
Impregnate:
Natural oil
Electrical terminals
screw M6, M8, M12

Type Catalogue number Power
[kVAr]		 Capacity
[µF]		 Current[A] Dimensions
ØxH[mm]		 Weight
[kg]
PhMKP400/10BE 33240 10 3x66,3 14,4 260x135x445 5
PhMKP400/12,5BE 33241 12,5 3x82,9 18 260x135x445 5
PhMKP400/15BE 33242 15 3x99,5 21,6 260x135x445 6
PhMKP400/16,7BE 33243 16,7 3x110,7 24,1 260x135x445 6
PhMKP400/20BE 33244 20 3x133 28,9 260x135x445 6,5
PhMKP400/25BE 33245 25 3x166 36 260x135x445 6,5
PhMKP400/30BE 33246 30 3x199 43,3 260x135x445 8
PhMKP400/33,3BE 33247 33,3 3x221 48 260x135x445 8
PhMKP400/40BE 33248 40 3x265 57,7 260x135x445 9
PhMKP400/50BE 33249 50 3x332 72,2 260x135x445 10
PhMKP400/60BE 33183 60 3x398 86,6 260x135x445 11
PhMKP400/66,7BE 33250 66,7 3x442 96,3 260x135x445 12,5
PhMKP400/70BE 33251 70 3x464 101 395x135x445 13
PhMKP400/75BE 33252 75 3x497 108 395x135x445 14
PhMKP400/83,3BE 33253 83,3 3x552 120 395x135x445 15
PhMKP400/100BE 33254 100 3x663 144 395x135x445 17

Caution
  IP00
Nominal voltage 400V*, 50Hz, 3 phase Delta connection
