Snímač Dol 114.
  • Snímač Dol 114.

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: Dol-sensors

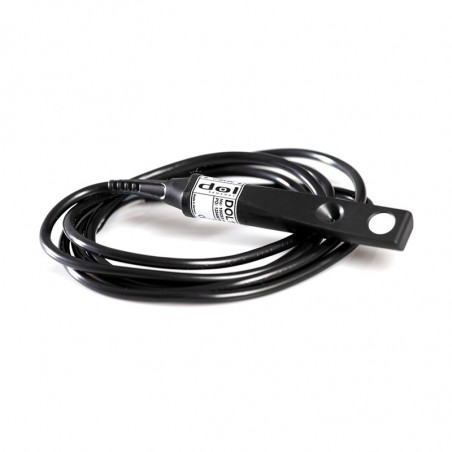

Snímač Dol 114.

Climate sensor for measuring relative humidity and temperature

DOL 114 is a high-precision sensor for measuring relative humidity and temperature. It is intended for application in livestock houses but is also well suited for a number of industrial applications.

The sensor features two analogue outputs with very low output resistances and full protection against short circuits and wiring failures.

The special sensor element and the built-in Teflon filter enables application in livestock houses with constantly high humidity. The sensor can be supplied with built-in connector or cable, and with a specific adapted specification area - all according to your needs

Sensor is microprocessor-controlled and has a two-colour light emitting diode (LED) to communicate the operation status and the error diagnostic. Sensor can be supplied with blinded LED for applications where this is needed

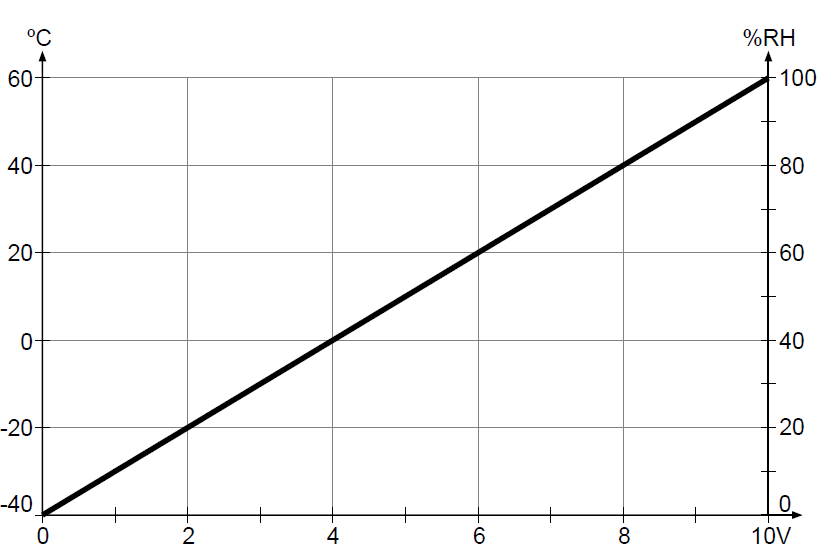

FUNCTIONAL GRAPH

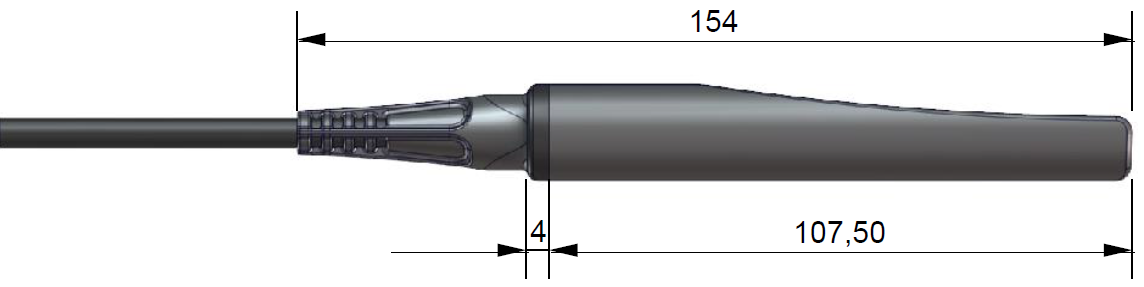

Dimensions (mm)





140252

DOL 114 HUMIDITY AND TEMPERATURE SENSOR 0-10V

140255

DOL 114 HUMIDITY AND TEMPERATURE SENSOR 0-10V – LED OFF

140256

DOL 114 HUMIDITY AND TEMPERATURE SENSOR 0-5V

140260

DOL 114 HUMIDITY AND TEMPERATURE SENSOR 0-60 °C 0-6V / 0-100 % RH 0-10V


140254

DOL 114 HUMIDITY SENSOR 0-10V INCL. HIRSCHMANN PLUG

140258

DOL 114 HUMIDITY AND TEMPERATURE 0-10 V MED M12 PLUG


140292

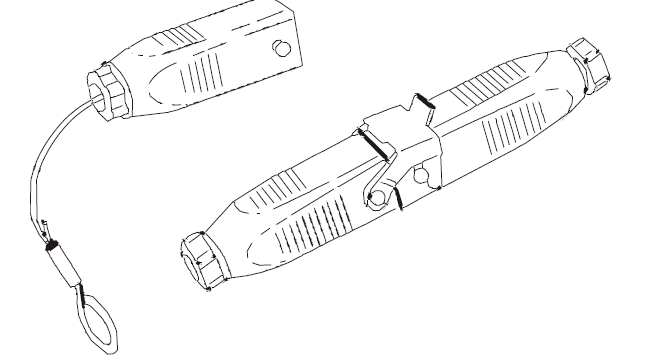

PLUG SYSTEM DOL 14/DOL 114


140298

DOL 114 PROTECTIVE CAP 5 PCS.




CABLE 2M M12 PLUG INCL SEALING PLUG


380101

BRACKET FOR DOL 14/15/114/16



Dane techniczne (140252, 140255, 140256)





Humidity measurement

Temperature measurement

Measuring range

0-100%rh

-40°C…60°C

Accuracy 1 0-10V

±2%RH (40-85%) ±3%RH (10-95%) w temp. 0-40°C

10°C…40°C ±0,5°C

-30°C…60°C ±1,5°C

Accuracy 1 0-5V

±3%RH (40-85%) ±4%RH (10-95%) w temp. 0-40°C

10°C…40°C ±0,6°C

-30°C…60°C ±1,5°C

Output signal 0-10V

0,1V/%RH

0,1V/°C; 0°C dla 4V

Output signal 0-5V

0,05V/%RH

0,05V/°C; 0°C dla 2V

Supply Voltage

11-30V DC

Supply Current 140252, 140252

12 mA no load

55 mA max. load

Supply Current 140256

12 mA no load

35 mA max. load

Load

>500Ω - <10MΩ

Recommended load

≥100kΩ

Output current

20 mA per output (current limited)

Output impendence

<1Ω

Temperature, operation and storage

-40°C…60°C

IP classification

IP67

Cable

2m 4x22AWG/0,34mm2

Max. cable length/

100m dla 0,75 mm2    200m dla 1, 5 mm2

Shipment weight ex. connector

150g

Measure, shipment

275x200x20mm
Méně
Přečtěte si více
