KEW2056R svorka metr 1000A AC / DC TRMS
  • KEW2056R svorka metr 1000A AC / DC TRMS

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: Kyoritsu

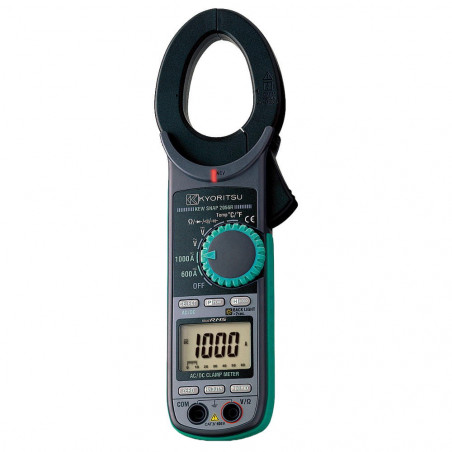

KEW2056R svorka metr 1000A AC / DC TRMS

  • 104878

The clamp meter KEW2056R has been designed, manufactured and tested in accordance with the PN-EN 61010 standard (safety requirements for electronic measuring instruments) and is approved for sale after passing control tests.

  • Safety in accordance with PN-EN 61010-1, PN-EN 61010-031 and PN-EN 61010-2-032, cat. IV 600V, pollution degree 2
  • The two-component casing allows the meter to be conveniently operated in one hand. Thanks to the position of the rotary switch and the anti-slip cap on the knob, it is also possible to change the measuring functions with one hand.
  • 6039 max LCD display with analog bargraph
  • The display backlight enables measurements in the dark.
  • Overvoltage protection of measuring inputs up to 600V.
  • Automatic shutdown of the meter after 15 minutes of inactivity.
  • NCV - the function of non-contact electric field detection allows for approximate detection of voltage in the conductors.
  • Temperature measurement with indication in either ° C or ° F
  • Capacitance measurement, continuity test and diode test
  • HOLD - holding the current measurement result on the LCD display.
  • PEAK HOLD - holding the peak value of the measurement on the LCD display during ACA measurements.
  • ZERO - differential measurement mode in relation to the previously measured value of current, voltage or resistance.
  • MIN / MAX - maximum or minimum value measurement mode.
  • Hz / DUTY - instant switch to frequency and duty cycle measurements during ACA and ACV measurements
