Výrobce: Eaton / CEAG

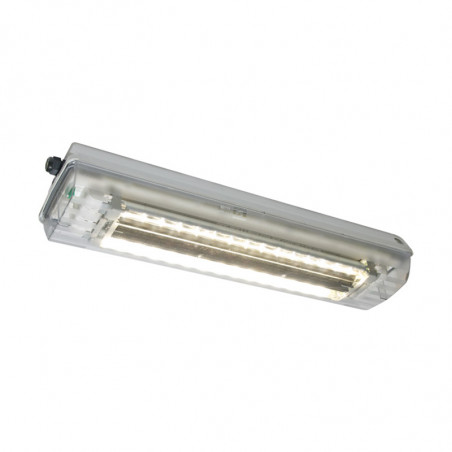

Ellk 92 LED (NE) - Lineární základní svítidlo


eLLK/M 92 LED 400A / eLLK/M 92 LED 800A / eLLK/M 92 LED 400A NE / eLLK 92 LED 800A NE


(Zone 1, 2, 21, 22)

The efficient solution for your explosion-protected lighting concept

The explosion-protected linear light fittings series eLLK/M 92 LED 400A/800A combines the latest LED technology with the protection of a reliable housing solution. As a result, this light fitting series is the ideal solution for lighting tasks in harsh and hazardous environments.

Latest lighting technology for a proven lighting concept

As a leading manufacturer of explosion- protected luminaires, we have redesigned our revolutionary LED module to fit into the eLLK/M... linear light fitting series.

With the new Gen2 modules, our LED linear luminaires are even more efficient and brighter than before. In addition, they now also have an extended temperature range from -25 °C to +55 °C. The new eLLK-2/4-C/W LED module can also be used for converting existing eLLK/M 92 light fittings with fluorescent lamps and an electronic ballast (EVG 09) into LED linear light fittings in just few simple steps.

The LED system design and certification allow the use in the proved Ex e technology of the eLLK/M 92 light fittings. With the use of our electronic ballast EVG 09 as the driver, we can rely on more than 20 years successful and safe operation in harsh and hazardous environments.

The advantages of the LED module:

  • Environmentally friendly, no mercury
  • Shock and vibration resistant, no filament or glass to break
  • Immediate start, instant full illumination
  • No life time reduction due to switching cycles
  • Reduced disposal costs

Energy and cost savings

  • >20% energy savings compared to fluorescent lamps
  • Additional energy savings due to operation on demand (night/day and presencemode)
  • Reduced maintenance costs compared to standard fluorescent lamps
  • Lower overall cost of ownership

Operating life

  • The expected operating life of this LED module is up to 110,000 hours. This is a significant improvement compared to traditional light sources.
  • Heat sinks are specifically engineered to remove heat from the LEDs to ensure a longer life, better lumen output and accurate colour temperature.
  • Fully operational with V-CG-S modules for connection to CEAG central battery emergency lighting systems.
  • Also available as self-contained emergency luminaire eLLK 92 LED ... NE.

Easy and cost-effective installation

Like all the luminaires in the eLLK lighting family, our standard LED linear luminaires feature a single-ended throughwiring, which, in conjunction with the generously dimensioned terminal compartment,
allows a cost-effective installation. The double-sided locking facility with 10 or 20 latch points
allows the protective bowl to be hinged on both sides, meaning that the fitting can be mounted
on either side.

Features

  • >20 % energy savings compared to similar fluorescent luminaires
  • Special LED design with direct light distribution
  • Proved technology. The EVG 09 has been used as a driver for more than 20 years
  • Various light colour temperatures available - 4000 K / 5700 K
  • Selected LED chips with perfect binning, low power loss and long life
  • Ex-e technology for easy maintenance
  • For ambient temperatures from -25 °C up to +55 °C

Technical data


eLLK 92 LED 400A/800A

  eLLK/M 92 LED 400A eLLK/M 92 LED 800A
EC-Type Examination Certificate BVS 09 ATEX E 034 BVS 09 ATEX E 034
IECEx Certificate of Conformity IECEx BVS 09.0033 IECEx BVS 09.0033
Marking accd. to 2014/34/EU II 2 G Ex db eb mb op is IIC T4 Gb
II 2 D Ex tb IIIC T80 °C Db IP66		 II 2 G Ex db eb mb op is IIC T4 Gb
II 2 D Ex tb IIIC T80 °C Db IP66
Marking accd. to IECEx Ex db eb mb op is IIC T4 Gb
Ex tb IIIC T80 °C Db		 Ex db eb mb op is IIC T4 Gb
Ex tb IIIC T80 °C Db
Permissible ambient temperature -25 °C up to +55 °C -25 °C up to +55 °C
IK-class according to IEC/EN 62262 IK 10 ≙ 20 J IK 10 ≙ 20 J
Rated voltage 110 V - 254 V AC
110 V - 250 V DC		 110 V - 254 V AC
110 V - 250 V DC
Power consumtion 29 W 57 W
Frequency 50 – 60 Hz 50 – 60 Hz
Life expectancy LED module L 70 = 110.000 h at ta=25 °C L 70 = 110.000 h at ta=25 °C
Power factor cos ϕ ≥ 0.95 ≥ 0.95
Circuit EVG EVG
Protection class I I
Immunity to surge voltages according to EN 61000-4-5 4 kV, L - N oraz L - PE 4 kV, L - N oraz L - PE
Illuminance at measurement plane comparable with luminaires for fluorescent lamps comparable with luminaires for fluorescent lamps
CRI > 80 > 80
Lamp/Illuminant eLLK-2-C - 2 x 13 W eLLK-2-C - 2 x 26 W
Light colour 5700 K (4000 K on request) 5700 K (4000 K on request)
Rated luminous flux of the luminaire
(typical, ± 10 %)		 2700 lm (5700 K)/2565 lm (4000 K) 5350 lm (5700 K)/5085 lm (4000 K)
Dimensions (L x W x H) 760 x 188 x 130 [mm] (eLLK)
1060 x 188 x 130 [mm] (eLLM)		 1360 x 188 x 130 [mm]
Connecting terminals L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal
Enclosure colour RAL 7035 light grey RAL 7035 light grey
Enclosure material Glass-fibre reinforced polyester Glass-fibre reinforced polyester
Weight 7.2 kg (eLLK)/9.2 kg (eLLM) 11.1 kg (eLLK)/13.1 kg (eLLM)
Cable glands/gland plates/enclosure drilling Ex-e cable glands M25 x 1.5 (plastic),
option: M20/M25 x 1.5 metal thread1)		 Ex-e cable glands M25 x 1.5 (plastic),
option: M20/M25 x 1.5 metal thread1)
Degree of protection accd. to EN 60529 IP66/IP67 IP66/IP67
Protective cover/protective bowl Polycarbonat Polycarbonat
1) with dustcover if entry/thread is not closed

eLLK 92 LED 400A V-CG-S / eLLK 92 LED 800A V-CG-S

  eLLK 92 LED 400A V-CG-S eLLK 92 LED 800A V-CG-S
EC-Tye Examination Certificate BVS 09 ATEX E 034 BVS 09 ATEX E 034
IECEx Certificate of Conformity IECEx BVS 09.0033 IECEx BVS 09.0033
Marking to 2014/34/EU II 2 G Ex db eb mb op is IIC T4 Gb
II 2 D Ex tb IIIC T80 °C Db IP66		 II 2 G Ex db eb mb op is IIC T4 Gb
II 2 D Ex tb IIIC T80 °C Db IP66
Marking to IECEx Ex db eb mb op is IIC T4 Gb
Ex tb IIIC T80 °C Db		 Ex db eb mb op is IIC T4 Gb
Ex tb IIIC T80 °C Db
Permissible ambient temperature -25 °C up to +50 °C -25 °C up to +50 °C
IK-class according to IEC/EN 62262 IK 10 ≙ 20 J IK 10 ≙ 20 J
Rated voltage 220 - 254 V AC
195 - 250 V DC		 220 - 254 V AC
195 - 250 V DC
Power consumtion 29 W 57 W
Frequency 50 – 60 Hz 50 – 60 Hz
Lifetime LED module L 70 = 110 000 h przy ta=25 °C L 70 = 110 000 h przy ta=25 °C
Power factor cos ϕ ≥ 0.95 ≥ 0.95
Circuit EVG/V-CG-S EVG/V-CG-S
Insulation class I I
Illuminance at measurement plane comparable with luminaires for fluorescent lamps comparable with luminaires for fluorescent lamps
CRI > 80 > 80
Lamp/Illuminant eLLK-2-C - 2 x 13 W eLLK-2-C - 2 x 26 W
Light colour 5700 K (4000 K on request) 5700 K (4000 K on request)
Rated luminous flux of the luminaire (typical, ± 10 %) 2700 lm (5700 K)/2565 lm (4000 K) 5350 lm (5700 K)/5085 lm (4000 K)
Rated luminous flux in emergency operation of the luminaire (one LED-row) 1350 lm (5700 k)/1282 lm (4000 K) 2675 lm (5700 k)/2542 lm (4000 K)
Rated emergency operating time - -
Dimensions (L x W x H) 760 x 188 x 130 [mm] 1360 x 188 x 130 [mm]
Connecting terminals L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal
Enclosure colour RAL 7035 light grey RAL 7035 light grey
Enclosure material Glass-fibre reinforced polyester Glass-fibre reinforced polyester
Weight 7.6 kg 11.5 kg
Cable glands/Gland plates/Enclosure drilling Ex-e cable glands M25 x 1.5 (plastic),
option: M20/M25 x 1.5 metal thread1)		 Ex-e cable glands M25 x 1.5 (plastic),
option: M20/M25 x 1.5 metal thread1)
Degree of protection accd. EN 60529 IP66/IP67 IP66/IP67
Protective cover/protective bowl Polycarbonat Polycarbonat

1) with dustcover if entry/thread is not closed



eLLK/M 92 LED 400A NE / eLLK 92 LED 800A NE

  eLLK/M 92 LED 400A NE eLLK 92 LED 800A NE
EC-Tye Examination Certificate BVS 09 ATEX E 034 BVS 09 ATEX E 034
IECEx Certificate of Conformity IECEx BVS 09.0033 IECEx BVS 09.0033
Marking to 2014/34/EU II 2 G Ex db eb mb op is IIC T4 Gb
II 2 D Ex tb IIIC T80 °C Db IP66		 II 2 G Ex db eb mb op is IIC T4 Gb
II 2 D Ex tb IIIC T80 °C Db IP66
Marking to IECEx Ex db eb mb op is IIC T4 Gb
Ex tb IIIC T80 °C Db		 Ex db eb mb op is IIC T4 Gb
Ex tb IIIC T80 °C Db
Permissible ambient temperature -25 °C up to +55 °C
(specified data: -5 °C up to +35 °C)		 -25 °C up to +55 °C
(specified data: -5 °C up to +35 °C)
IK-class according to IEC/EN 62262 IK 10 ≙ 20 J IK 10 ≙ 20 J
Battery Battery set with 7 Ah-NC battery,
with LED display and monitoring via microprocessor		 Battery set with 7 Ah-NC battery,
with LED display and monitoring via microprocessor
Rated voltage 120 - 254 V AC 120 - 254 V AC
Power consumtion 34 W 62 W
Frequency 50 – 60 Hz 50 – 60 Hz
Charging duration ≥ 14h ≥ 14h
Lifetime LED module L 70 = 110 000 h przy ta=25 °C L 70 = 110 000 h przy ta=25 °C
Power factor cos ϕ ≥ 0.95 ≥ 0.95
Circuit EVG with emergency lighting supply EVG with emergency lighting supply
Insulation class I I
Illuminance at measurement plane comparable with luminaires for fluorescent lamps comparable with luminaires for fluorescent lamps
CRI > 80 > 80
Lamp/Illuminant eLLK-2-C - 2 x 13 W eLLK-2-C - 2 x 26 W
Light colour 5700 K (4000 K on request) 5700 K (4000 K on request)
Rated luminous flux of the luminaire (typical, ± 10 %) 2700 lm (5700 K)/2565 lm (4000 K) 5350 lm (5700 K)/5085 lm (4000 K)
Rated luminous flux in emergency operation of the luminaire (one LED-row) 1282 lm (5700 k)/1217 lm (4000 K) 1739 lm (5700 k)/1653 lm (4000 K)
Rated emergency operating time 877 lm (5700 k) / 834 lm (4000 K) 1204 lm (5700 k) / 1144 lm (4000 K)
Luminous flux relation normal/ emergency opration (one LED line) 1,5 h or 3 h, adjustable on site 1,5 h or 3 h, adjustable on site
luminous flux ratio in emergency mode (one LED line) 95 % (1,5 h) - 65 % (3 h) 65 % (1,5 h) - 45 % (3 h)
Dimensions (L x W x H) 900x188x130/1500x188x 30 [mm] 900x188x130/1500x188x130 [mm]
Connecting terminals L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal
Enclosure colour RAL 7035 light grey RAL 7035 light grey
Enclosure material Glass-fibre reinforced polyester Glass-fibre reinforced polyester
Weight 10.3 kg 14.4 kg
Cable glands/Gland plates/Enclosure drilling Ex-e-cable glands M25 x 1,5 (plastic),
option: M20 x 1,5 metal thread 1)		 Ex-e-cable glands M25 x 1,5 (plastic),
option: M20 x 1,5 metal thread 1)
Degree of protection accd. EN 60529 IP66/IP67 IP66/IP67
Protective cover/protective bowl Polycarbonate Polycarbonate

1) with dustcover if entry/thread is not closed


Accessories

Type Order No for 4000 K Order No for 5700 K
eLLK-2 LED module for eLLK/M 92 018/18 incl. conversion kit for standard fluorescent light fittings CCL 1635 129 CCL 1635 127
eLLK-4 LED module for eLLK/M 92 036/36 incl. conversion kit for standard fluorescent light fittings CCL 1635 130 CCL 1635 128
eLLK-2 LED module for eLLK/M 92 018/18 LED Ready / eLLK 92 LED 400A CCL 1634 699 CCL 1634 697
eLLK-4 LED module for eLLK/M 92 036/36 LED Ready / eLLK 92 LED 800A CCL 1634 700 CCL 1634 698
Type Order No
Single sided through wiring 2/6 with 2 entries M25, incl. terminals and mounting material 2 2218 602 000
Battery set Type 2710-12 with LED display for eLL..92..NE 2 2710 906 000
Single sided through wiring 2/6 with 2 entries M25, incl. terminals and mounting material for eLLM 92 LED 400A/800A 2 2218 602 000
Protective bowl with green filter for eye wash safety shower facilities (eLLK 92 LED 400A) 2 2215 402 018


Polar curve / Dimension drawing


Polar curve eLLK/M 92 LED 400A/800A

Polar curve eLLK/M 92 LED 400A/800A NE in emergency mode


Dimensions


Ordering details – eLLK/M 92 LED 400A/800A

Version Terminals Through-wiring Cable gland/thread Threaded plug Blanking plug Order No for 4000 K Order No for 5700 K
single-ended twin-ended
eLLK 92 LED 400A
1/6-1K 1 x 6 X - 2 x M25, Plastic   1 1 2265 505 101 1 2265 504 101
2/6-2K 2 x 6 - X 2 x M25, Plastic 2 x M25   1 2265 505 103 1 2265 504 103
1/6-1M 1) 1 x 6 X - 2 x M20, Metal thread 1 x M20   1 2265 505 109 1 2265 504 109
2/6-2M 1) 2 x 6 - X 4 x M20, Metal thread 2 x M20   1 2265 505 111 1 2265 504 111
eLLK 92 LED 800A
1/6-1K 1 x 6 X - 2 x M25, Plastic   1 1 2266 505 101 1 2266 504 101
2/6-2K 2 x 6 - X 2 x M25, Plastic 2 x M25   1 2266 505 103 1 2266 504 103
1/6-1M1) 1 x 6 X - 2 x M20, Metal thread 1 x M20   1 2266 505 109 1 2266 504 109
2/6-2M1) 2 x 6 - X 4 x M20, Metal thread 2 x M20   1 2266 505 111 1 2266 504 111
eLLM 92 LED 400A/800A
1/3-1K 1 x 3 - - 1 x M25, Plastic     1 2268 505 101 1 2268 504 101
1/3-1K 1 x 3 - - 1 x M25, Plastic     1 2269 505 101 1 2269 504 101
eLLK 92 LED 400A V-CG-S 2)
2/6-2K 2 x 6 - X 2 x M25, Plastic 2 x M25   1 2265 517 103 1 2265 516 103
2/6-2M 1) 2 x 6 - X 4 x M20, Metal thread 2 x M25   1 2265 517 111 1 2265 516 111
eLLK 92 LED 800A V-CG-S 2)
2/6-2K 2 x 6 - X 2 x M25, Plastic 2 x M25   1 2266 517 103 1 2266 516 103
2/6-2M 1) 2 x 6 - X 4 x M20, Metal thread 2 x M25   1 2266 517 111 1 2266 516 111
eLLK 92 LED 400A NE 3)
1/6-1K 1 x 6 X - 2 x M25, Plastic   1 1 2260 588 101 1 2260 587 101
2/6-2K 2 x 6 - X 2 x M25, Plastic 2 x M25   1 2260 588 103 1 2260 587 103
1/6-1M 1) 1 x 6 X - 2 x M20, Metal thread 1 x M20   1 2260 588 109 1 2260 587 109
2/6-2M 1) 2 x 6 - X 4 x M20, Metal thread 2 x M20   1 2260 588 111 1 2260 587 111
1/6-1M 1) 1 x 6 X - 2 x M25, Metal thread 2 x M25   1 2260 588 609 1 2260 587 609
2/6-2M 1) 2 x 6 - X 4 x M25, Metal thread 4 x M25   1 2260 588 611 1 2260 587 611
eLLK 92 LED 800A NE 3)
1/6-1K 1 x 6 X - 2 x M25, Plastic   1 1 2261 588 101 1 2261 587 101
2/6-2K 2 x 6 - X 2 x M25, Plastic 2 x M25   1 2261 588 103 1 2261 587 103
1/6-1M 1) 1 x 6 X - 2 x M20, Metal thread 1 x M20   1 2261 588 109 1 2261 587 109
2/6-2M 1) 2 x 6 - X 4 x M20, Metal thread 2 x M20   1 2261 588 111 1 2261 587 111
1/6-1M 1) 1 x 6 X - 2 x M25, Metal thread 2 x M25   1 2261 588 609 1 2261 587 609
2/6-2M 1) 2 x 6 - X 4 x M25, Metal thread 4 x M25   1 2261 588 611 1 2261 587 611
eLLM 92 LED 400A NE 3)
1/3-1K 1 x 3 - - 1 x M25, Plastic     1 2273 588 101 1 2273 587 101

Scope of delivery including LED-module, without fixing material. Metal cable glands see catalogue part 2: 2.3.12 ff

1) with metal thread, without cable gland / 2) for operation with CEAG-emergency supply system / 3) self-contained emergency light fitting
Méně
Přečtěte si více

Zašlete dotaz

Máte zájem o tento produkt? Potřebujete další informace nebo individuální ceny?

Kontaktujte nás
ZEPTEJTE SE O PRODUKT close
Děkujeme za zaslání zprávy. Odpovíme co nejdříve.
ZEPTEJTE SE O PRODUKT close
Procházet
pošlete dotaz

Přidat do seznamu přání

musíš být přihlášen


eLLK/M 92 LED 400A / eLLK/M 92 LED 800A / eLLK/M 92 LED 400A NE / eLLK 92 LED 800A NE


(Zone 1, 2, 21, 22)

The efficient solution for your explosion-protected lighting concept

The explosion-protected linear light fittings series eLLK/M 92 LED 400A/800A combines the latest LED technology with the protection of a reliable housing solution. As a result, this light fitting series is the ideal solution for lighting tasks in harsh and hazardous environments.

Latest lighting technology for a proven lighting concept

As a leading manufacturer of explosion- protected luminaires, we have redesigned our revolutionary LED module to fit into the eLLK/M... linear light fitting series.

With the new Gen2 modules, our LED linear luminaires are even more efficient and brighter than before. In addition, they now also have an extended temperature range from -25 °C to +55 °C. The new eLLK-2/4-C/W LED module can also be used for converting existing eLLK/M 92 light fittings with fluorescent lamps and an electronic ballast (EVG 09) into LED linear light fittings in just few simple steps.

The LED system design and certification allow the use in the proved Ex e technology of the eLLK/M 92 light fittings. With the use of our electronic ballast EVG 09 as the driver, we can rely on more than 20 years successful and safe operation in harsh and hazardous environments.

The advantages of the LED module:

  • Environmentally friendly, no mercury
  • Shock and vibration resistant, no filament or glass to break
  • Immediate start, instant full illumination
  • No life time reduction due to switching cycles
  • Reduced disposal costs

Energy and cost savings

  • >20% energy savings compared to fluorescent lamps
  • Additional energy savings due to operation on demand (night/day and presencemode)
  • Reduced maintenance costs compared to standard fluorescent lamps
  • Lower overall cost of ownership

Operating life

  • The expected operating life of this LED module is up to 110,000 hours. This is a significant improvement compared to traditional light sources.
  • Heat sinks are specifically engineered to remove heat from the LEDs to ensure a longer life, better lumen output and accurate colour temperature.
  • Fully operational with V-CG-S modules for connection to CEAG central battery emergency lighting systems.
  • Also available as self-contained emergency luminaire eLLK 92 LED ... NE.

Easy and cost-effective installation

Like all the luminaires in the eLLK lighting family, our standard LED linear luminaires feature a single-ended throughwiring, which, in conjunction with the generously dimensioned terminal compartment,
allows a cost-effective installation. The double-sided locking facility with 10 or 20 latch points
allows the protective bowl to be hinged on both sides, meaning that the fitting can be mounted
on either side.

Features

  • >20 % energy savings compared to similar fluorescent luminaires
  • Special LED design with direct light distribution
  • Proved technology. The EVG 09 has been used as a driver for more than 20 years
  • Various light colour temperatures available - 4000 K / 5700 K
  • Selected LED chips with perfect binning, low power loss and long life
  • Ex-e technology for easy maintenance
  • For ambient temperatures from -25 °C up to +55 °C

Technical data


eLLK 92 LED 400A/800A

  eLLK/M 92 LED 400A eLLK/M 92 LED 800A
EC-Type Examination Certificate BVS 09 ATEX E 034 BVS 09 ATEX E 034
IECEx Certificate of Conformity IECEx BVS 09.0033 IECEx BVS 09.0033
Marking accd. to 2014/34/EU II 2 G Ex db eb mb op is IIC T4 Gb
II 2 D Ex tb IIIC T80 °C Db IP66		 II 2 G Ex db eb mb op is IIC T4 Gb
II 2 D Ex tb IIIC T80 °C Db IP66
Marking accd. to IECEx Ex db eb mb op is IIC T4 Gb
Ex tb IIIC T80 °C Db		 Ex db eb mb op is IIC T4 Gb
Ex tb IIIC T80 °C Db
Permissible ambient temperature -25 °C up to +55 °C -25 °C up to +55 °C
IK-class according to IEC/EN 62262 IK 10 ≙ 20 J IK 10 ≙ 20 J
Rated voltage 110 V - 254 V AC
110 V - 250 V DC		 110 V - 254 V AC
110 V - 250 V DC
Power consumtion 29 W 57 W
Frequency 50 – 60 Hz 50 – 60 Hz
Life expectancy LED module L 70 = 110.000 h at ta=25 °C L 70 = 110.000 h at ta=25 °C
Power factor cos ϕ ≥ 0.95 ≥ 0.95
Circuit EVG EVG
Protection class I I
Immunity to surge voltages according to EN 61000-4-5 4 kV, L - N oraz L - PE 4 kV, L - N oraz L - PE
Illuminance at measurement plane comparable with luminaires for fluorescent lamps comparable with luminaires for fluorescent lamps
CRI > 80 > 80
Lamp/Illuminant eLLK-2-C - 2 x 13 W eLLK-2-C - 2 x 26 W
Light colour 5700 K (4000 K on request) 5700 K (4000 K on request)
Rated luminous flux of the luminaire
(typical, ± 10 %)		 2700 lm (5700 K)/2565 lm (4000 K) 5350 lm (5700 K)/5085 lm (4000 K)
Dimensions (L x W x H) 760 x 188 x 130 [mm] (eLLK)
1060 x 188 x 130 [mm] (eLLM)		 1360 x 188 x 130 [mm]
Connecting terminals L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal
Enclosure colour RAL 7035 light grey RAL 7035 light grey
Enclosure material Glass-fibre reinforced polyester Glass-fibre reinforced polyester
Weight 7.2 kg (eLLK)/9.2 kg (eLLM) 11.1 kg (eLLK)/13.1 kg (eLLM)
Cable glands/gland plates/enclosure drilling Ex-e cable glands M25 x 1.5 (plastic),
option: M20/M25 x 1.5 metal thread1)		 Ex-e cable glands M25 x 1.5 (plastic),
option: M20/M25 x 1.5 metal thread1)
Degree of protection accd. to EN 60529 IP66/IP67 IP66/IP67
Protective cover/protective bowl Polycarbonat Polycarbonat
1) with dustcover if entry/thread is not closed

eLLK 92 LED 400A V-CG-S / eLLK 92 LED 800A V-CG-S

  eLLK 92 LED 400A V-CG-S eLLK 92 LED 800A V-CG-S
EC-Tye Examination Certificate BVS 09 ATEX E 034 BVS 09 ATEX E 034
IECEx Certificate of Conformity IECEx BVS 09.0033 IECEx BVS 09.0033
Marking to 2014/34/EU II 2 G Ex db eb mb op is IIC T4 Gb
II 2 D Ex tb IIIC T80 °C Db IP66		 II 2 G Ex db eb mb op is IIC T4 Gb
II 2 D Ex tb IIIC T80 °C Db IP66
Marking to IECEx Ex db eb mb op is IIC T4 Gb
Ex tb IIIC T80 °C Db		 Ex db eb mb op is IIC T4 Gb
Ex tb IIIC T80 °C Db
Permissible ambient temperature -25 °C up to +50 °C -25 °C up to +50 °C
IK-class according to IEC/EN 62262 IK 10 ≙ 20 J IK 10 ≙ 20 J
Rated voltage 220 - 254 V AC
195 - 250 V DC		 220 - 254 V AC
195 - 250 V DC
Power consumtion 29 W 57 W
Frequency 50 – 60 Hz 50 – 60 Hz
Lifetime LED module L 70 = 110 000 h przy ta=25 °C L 70 = 110 000 h przy ta=25 °C
Power factor cos ϕ ≥ 0.95 ≥ 0.95
Circuit EVG/V-CG-S EVG/V-CG-S
Insulation class I I
Illuminance at measurement plane comparable with luminaires for fluorescent lamps comparable with luminaires for fluorescent lamps
CRI > 80 > 80
Lamp/Illuminant eLLK-2-C - 2 x 13 W eLLK-2-C - 2 x 26 W
Light colour 5700 K (4000 K on request) 5700 K (4000 K on request)
Rated luminous flux of the luminaire (typical, ± 10 %) 2700 lm (5700 K)/2565 lm (4000 K) 5350 lm (5700 K)/5085 lm (4000 K)
Rated luminous flux in emergency operation of the luminaire (one LED-row) 1350 lm (5700 k)/1282 lm (4000 K) 2675 lm (5700 k)/2542 lm (4000 K)
Rated emergency operating time - -
Dimensions (L x W x H) 760 x 188 x 130 [mm] 1360 x 188 x 130 [mm]
Connecting terminals L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal
Enclosure colour RAL 7035 light grey RAL 7035 light grey
Enclosure material Glass-fibre reinforced polyester Glass-fibre reinforced polyester
Weight 7.6 kg 11.5 kg
Cable glands/Gland plates/Enclosure drilling Ex-e cable glands M25 x 1.5 (plastic),
option: M20/M25 x 1.5 metal thread1)		 Ex-e cable glands M25 x 1.5 (plastic),
option: M20/M25 x 1.5 metal thread1)
Degree of protection accd. EN 60529 IP66/IP67 IP66/IP67
Protective cover/protective bowl Polycarbonat Polycarbonat

1) with dustcover if entry/thread is not closed



eLLK/M 92 LED 400A NE / eLLK 92 LED 800A NE

  eLLK/M 92 LED 400A NE eLLK 92 LED 800A NE
EC-Tye Examination Certificate BVS 09 ATEX E 034 BVS 09 ATEX E 034
IECEx Certificate of Conformity IECEx BVS 09.0033 IECEx BVS 09.0033
Marking to 2014/34/EU II 2 G Ex db eb mb op is IIC T4 Gb
II 2 D Ex tb IIIC T80 °C Db IP66		 II 2 G Ex db eb mb op is IIC T4 Gb
II 2 D Ex tb IIIC T80 °C Db IP66
Marking to IECEx Ex db eb mb op is IIC T4 Gb
Ex tb IIIC T80 °C Db		 Ex db eb mb op is IIC T4 Gb
Ex tb IIIC T80 °C Db
Permissible ambient temperature -25 °C up to +55 °C
(specified data: -5 °C up to +35 °C)		 -25 °C up to +55 °C
(specified data: -5 °C up to +35 °C)
IK-class according to IEC/EN 62262 IK 10 ≙ 20 J IK 10 ≙ 20 J
Battery Battery set with 7 Ah-NC battery,
with LED display and monitoring via microprocessor		 Battery set with 7 Ah-NC battery,
with LED display and monitoring via microprocessor
Rated voltage 120 - 254 V AC 120 - 254 V AC
Power consumtion 34 W 62 W
Frequency 50 – 60 Hz 50 – 60 Hz
Charging duration ≥ 14h ≥ 14h
Lifetime LED module L 70 = 110 000 h przy ta=25 °C L 70 = 110 000 h przy ta=25 °C
Power factor cos ϕ ≥ 0.95 ≥ 0.95
Circuit EVG with emergency lighting supply EVG with emergency lighting supply
Insulation class I I
Illuminance at measurement plane comparable with luminaires for fluorescent lamps comparable with luminaires for fluorescent lamps
CRI > 80 > 80
Lamp/Illuminant eLLK-2-C - 2 x 13 W eLLK-2-C - 2 x 26 W
Light colour 5700 K (4000 K on request) 5700 K (4000 K on request)
Rated luminous flux of the luminaire (typical, ± 10 %) 2700 lm (5700 K)/2565 lm (4000 K) 5350 lm (5700 K)/5085 lm (4000 K)
Rated luminous flux in emergency operation of the luminaire (one LED-row) 1282 lm (5700 k)/1217 lm (4000 K) 1739 lm (5700 k)/1653 lm (4000 K)
Rated emergency operating time 877 lm (5700 k) / 834 lm (4000 K) 1204 lm (5700 k) / 1144 lm (4000 K)
Luminous flux relation normal/ emergency opration (one LED line) 1,5 h or 3 h, adjustable on site 1,5 h or 3 h, adjustable on site
luminous flux ratio in emergency mode (one LED line) 95 % (1,5 h) - 65 % (3 h) 65 % (1,5 h) - 45 % (3 h)
Dimensions (L x W x H) 900x188x130/1500x188x 30 [mm] 900x188x130/1500x188x130 [mm]
Connecting terminals L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal
Enclosure colour RAL 7035 light grey RAL 7035 light grey
Enclosure material Glass-fibre reinforced polyester Glass-fibre reinforced polyester
Weight 10.3 kg 14.4 kg
Cable glands/Gland plates/Enclosure drilling Ex-e-cable glands M25 x 1,5 (plastic),
option: M20 x 1,5 metal thread 1)		 Ex-e-cable glands M25 x 1,5 (plastic),
option: M20 x 1,5 metal thread 1)
Degree of protection accd. EN 60529 IP66/IP67 IP66/IP67
Protective cover/protective bowl Polycarbonate Polycarbonate

1) with dustcover if entry/thread is not closed


Accessories

Type Order No for 4000 K Order No for 5700 K
eLLK-2 LED module for eLLK/M 92 018/18 incl. conversion kit for standard fluorescent light fittings CCL 1635 129 CCL 1635 127
eLLK-4 LED module for eLLK/M 92 036/36 incl. conversion kit for standard fluorescent light fittings CCL 1635 130 CCL 1635 128
eLLK-2 LED module for eLLK/M 92 018/18 LED Ready / eLLK 92 LED 400A CCL 1634 699 CCL 1634 697
eLLK-4 LED module for eLLK/M 92 036/36 LED Ready / eLLK 92 LED 800A CCL 1634 700 CCL 1634 698
Type Order No
Single sided through wiring 2/6 with 2 entries M25, incl. terminals and mounting material 2 2218 602 000
Battery set Type 2710-12 with LED display for eLL..92..NE 2 2710 906 000
Single sided through wiring 2/6 with 2 entries M25, incl. terminals and mounting material for eLLM 92 LED 400A/800A 2 2218 602 000
Protective bowl with green filter for eye wash safety shower facilities (eLLK 92 LED 400A) 2 2215 402 018


Polar curve / Dimension drawing


Polar curve eLLK/M 92 LED 400A/800A

Polar curve eLLK/M 92 LED 400A/800A NE in emergency mode


Dimensions


Ordering details – eLLK/M 92 LED 400A/800A

Version Terminals Through-wiring Cable gland/thread Threaded plug Blanking plug Order No for 4000 K Order No for 5700 K
single-ended twin-ended
eLLK 92 LED 400A
1/6-1K 1 x 6 X - 2 x M25, Plastic   1 1 2265 505 101 1 2265 504 101
2/6-2K 2 x 6 - X 2 x M25, Plastic 2 x M25   1 2265 505 103 1 2265 504 103
1/6-1M 1) 1 x 6 X - 2 x M20, Metal thread 1 x M20   1 2265 505 109 1 2265 504 109
2/6-2M 1) 2 x 6 - X 4 x M20, Metal thread 2 x M20   1 2265 505 111 1 2265 504 111
eLLK 92 LED 800A
1/6-1K 1 x 6 X - 2 x M25, Plastic   1 1 2266 505 101 1 2266 504 101
2/6-2K 2 x 6 - X 2 x M25, Plastic 2 x M25   1 2266 505 103 1 2266 504 103
1/6-1M1) 1 x 6 X - 2 x M20, Metal thread 1 x M20   1 2266 505 109 1 2266 504 109
2/6-2M1) 2 x 6 - X 4 x M20, Metal thread 2 x M20   1 2266 505 111 1 2266 504 111
eLLM 92 LED 400A/800A
1/3-1K 1 x 3 - - 1 x M25, Plastic     1 2268 505 101 1 2268 504 101
1/3-1K 1 x 3 - - 1 x M25, Plastic     1 2269 505 101 1 2269 504 101
eLLK 92 LED 400A V-CG-S 2)
2/6-2K 2 x 6 - X 2 x M25, Plastic 2 x M25   1 2265 517 103 1 2265 516 103
2/6-2M 1) 2 x 6 - X 4 x M20, Metal thread 2 x M25   1 2265 517 111 1 2265 516 111
eLLK 92 LED 800A V-CG-S 2)
2/6-2K 2 x 6 - X 2 x M25, Plastic 2 x M25   1 2266 517 103 1 2266 516 103
2/6-2M 1) 2 x 6 - X 4 x M20, Metal thread 2 x M25   1 2266 517 111 1 2266 516 111
eLLK 92 LED 400A NE 3)
1/6-1K 1 x 6 X - 2 x M25, Plastic   1 1 2260 588 101 1 2260 587 101
2/6-2K 2 x 6 - X 2 x M25, Plastic 2 x M25   1 2260 588 103 1 2260 587 103
1/6-1M 1) 1 x 6 X - 2 x M20, Metal thread 1 x M20   1 2260 588 109 1 2260 587 109
2/6-2M 1) 2 x 6 - X 4 x M20, Metal thread 2 x M20   1 2260 588 111 1 2260 587 111
1/6-1M 1) 1 x 6 X - 2 x M25, Metal thread 2 x M25   1 2260 588 609 1 2260 587 609
2/6-2M 1) 2 x 6 - X 4 x M25, Metal thread 4 x M25   1 2260 588 611 1 2260 587 611
eLLK 92 LED 800A NE 3)
1/6-1K 1 x 6 X - 2 x M25, Plastic   1 1 2261 588 101 1 2261 587 101
2/6-2K 2 x 6 - X 2 x M25, Plastic 2 x M25   1 2261 588 103 1 2261 587 103
1/6-1M 1) 1 x 6 X - 2 x M20, Metal thread 1 x M20   1 2261 588 109 1 2261 587 109
2/6-2M 1) 2 x 6 - X 4 x M20, Metal thread 2 x M20   1 2261 588 111 1 2261 587 111
1/6-1M 1) 1 x 6 X - 2 x M25, Metal thread 2 x M25   1 2261 588 609 1 2261 587 609
2/6-2M 1) 2 x 6 - X 4 x M25, Metal thread 4 x M25   1 2261 588 611 1 2261 587 611
eLLM 92 LED 400A NE 3)
1/3-1K 1 x 3 - - 1 x M25, Plastic     1 2273 588 101 1 2273 587 101

Scope of delivery including LED-module, without fixing material. Metal cable glands see catalogue part 2: 2.3.12 ff

1) with metal thread, without cable gland / 2) for operation with CEAG-emergency supply system / 3) self-contained emergency light fitting
Méně
Přečtěte si více
Komentáře (0)
