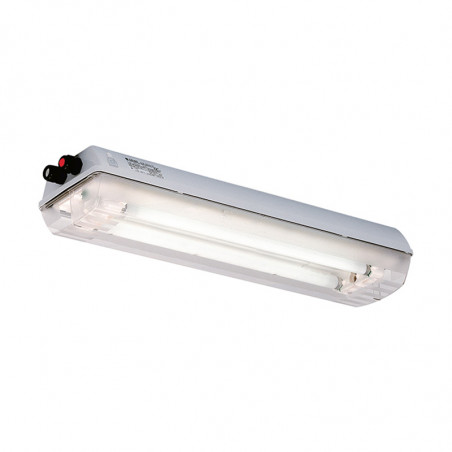

eLLK 92... 18 W – 58 W
Oprawy świetlówkowe w wykonaniu przeciwwybuchowym dla dwupinowych świetlówek z serii eLLK 92 wykonane są zgodnie z zasadniczymi wymaganiami Dyrektywy ATEX (94/9/WE). Wyposażone są w nowoczesny statecznik elektroniczny EVG 09, który umożliwia bezpieczną i oszczędną pracę dwupinowych świetlówek G13. Pod koniec okresu swojej żywotności świetlówki są monitorowane i bezpiecznie wyłączane. Szeroki zakres napięcia wejściowego pozwala na użytkowanie tej oprawy na całym świecie. Standardowe jednostronne okablowanie przelotowe oraz przestronny przedział zaciskowy, zapewniają szybką i wygodną instalację. Dzięki dwustronnej blokadzie z 10, 20 lub 24 zatrzaskami, przy montażu oprawy nie trzeba zwracać uwagi na to, która strona jest właściwa. Automatyczny wyłącznik bezpieczeństwa chroni użytkownika gdy pokrywa oprawy jest otwarta. Odcina jednocześnie zasilanie od wszystkich przewodzących części oprawy, które mogą stać się zagrożeniem dla pracowników wykonujących prace konserwacyjne i eksploatacyjne. Opcjonalny moduł CG-S stanowi optymalne rozwiązanie do indywidualnego monitorowania opraw oświetleniowych połączonych z systemami zasilania awaryjnego
eLLK 92... (18-58 W)
|
|
1 x 36 W |
2 x 36 W |
eLLK 92018/18 | eLLK 92036 / eLLK 92036/3 | eLLK 92058 / eLLK 92058/58 | |
---|---|
Marking to 94/9/EC | Ex II 2G Ex de IIC T4 Gb/ Ex II 2G Ex de mb IIC T4 Gb (wersja: CG-S) Ex II 2D Ex tb IIIC T80 °C Db IP66 |
EC-Type Examination Certificate | BVS 09 ATEX E 034 |
IECEx-Certificate of Confrmity | IECEx BVS 09.0033 |
Marking to IECEx | Ex de IIC T4 Gb / Ex de mb IIC T4 Gb (6/5000 version: CG-S) Ex tb IIIC T80°C Db |
Permisible ambient temeperature | -25 °C do +55 °C (Un ≥ 220 V) |
-25 °C do +50 °C (Un < 220 V) 1) | |
-25 °C do +40 °C (eLL. 92 2x58W) | |
Frequency | 50-60 Hz |
Power factor cos φ | ≥ 0,95 |
Circuit | EVG or EVG/CG-S |
Connecting terminals | L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal |
Insulation class | I |
Lamp cap | G13 accd. to IEC 60081 |
Dergee of protecion accd. EN 60529 | IP66 |
Cable gldand/gland pater/enclosure drilling |
Ex-e cable glands M25 x 1.5 (plastic) for cables from Ø 8 - 17 mm,
Option: M20 x 1.5 metal thread (eLLK 92 NIB)
|
Enclosure material | Glass-fibre reinforced polyester |
Protective cover/protective bowl | Polycarbonate |
eLLK 92018/18 | eLLK 92036 | eLLK 92036/36 | |
---|---|---|---|
Rated voltage | 110-254 V AC / | 110-254 V AC / | 110-254 V AC / |
110-250 V DC | 110-250 V DC | 110-250 V DC | |
Rated voltage CG-S | 220-254 V AC / | 220-254 V AC / | 220-254 V AC / |
195-250 V DC | 195-250 V DC | 195-250 V DC | |
Rated current | 0,18 A | 0,18 A | 0,34 A |
0,19 A (CG-S wariant) | 0,35 A (CG-S wariant) | ||
Lamp/illuminant | 2 x T26 / 18 W (T8) | 1 x T26 / 36 W (T8) | 2 x T26 / 36 W (T8) |
Rated luminous flux | 2700 lm | 3350 lm | 6700 lm |
Dimensions (L x W x H) | 760 x 188 x 130 mm | 1360 x 188 x 130 mm | 1360 x 188 x 130 mm |
Weight | approx 5,2 kg / approx 5,6 kg (CG-S wariant) |
approx 7,2 kg | approx 7,4 kg / approx 7,7 kg (CG-S wariant) |
eLLK 92058 | eLLK 92058/58 | |
---|---|---|
Rated voltage | 220-254 V AC / | 220-254 V AC / |
195-250 V DC | 195-250 V DC | |
Rated voltage CG-S | 220-254 V AC / | 220-254 V AC / |
195-250 V DC | 195-250 V DC | |
Rated current | 0,27 A | 0,53 A / 0,54 A (CG-S wariant) |
Lamp/illuminant | 1 x T26 / 58 W (T8) | 2 x T26 / 58 W (T8) |
Rated luminous flux | 5200 lm | 10400 lm |
Dimensions (L x W x H) | 1660 x 188 x 130 mm | 1660 x 188 x 130 mm |
Weight | około 8,2 kg | około 9,1 kg / około 9,6 kg (CG-S wariant) |
eLLM 92.../..
eLLM
Technical data
eLLM 92018/18 | eLLM 92036/36 | |
---|---|
Marking accd. to 94/9/EC | Ex II 2G Ex de IIC T4 Gb/ Ex II 2G Ex de mb IIC T4 Gb (wersja: CG-S) Ex II 2D Ex tb IIIC T80 °C Db IP66 |
EC-Type Examination Certificate | BVS 09 ATEX E 034 |
IECEx Certificate of Conformity | IECEx BVS 09.0033 |
Marking accd. to IECEx | Ex de IIC T4 Gb / Ex de mb IIC T4 Gb (wersja: CG-S) Ex tb IIIC T80°C Db |
Permissible ambient temperature | -25 °C up to +55 °C (Un ≥ 220 V) |
-25 °C up to +50 °C (Un < 220 V) | |
Rated voltage | 110-254 V AC / 110-250 V DC |
Frequency | 50-60 Hz |
Power factor cos Ø | > 0,95 |
Circuit | EVG |
Connecting terminals | L1, N, PE; max. 2 x 6 mm2 per terminal |
Protection class | I |
Lamp cap | G13 accd. to IEC 60081 |
Degree of protection accd. to EN 60529 | IP66 |
Cable glands / gland plates / enclosure drilling | Ex-e cable glands M25 x 1.5 (plastic), option: M20 x 1.5 metal thread |
Housing material | Glass Reinforced Polyester |
Material Shade | Polycarbonate |
eLLM 92018/18 | eLLM 92036/36 1 | |
---|---|---|
Rated voltage | 110-254 C AC / 110-250 V DC | |
Rated current | 0,18 A | 0,34 A |
Lamp/illuminant | 2 x T26 / 18 W (T8) | 2 x T26 / 36 W (T8) |
Rated luminous flux | 2700lm | 6700 lm |
Dimensions (L x W x H) | 1060 x 188 x 130 mm | 1660 x 188 x 130 mm |
Hole for mounting a pole | 0 44 mm x 150 mm | 0 44 mm x 150 mm |
Weight | około 7,0 kg | około 9,5 kg |
eLLK 92... (18-58 W) | eLLM 92.../.. (18 + 36 W)
![]() |
![]() |
![]() |
||
2 x 18 W | 1 x 36 W | 2 x 36 W | 2 x 36 W | 2 x 18 W |
Szczegóły zamówienia
Grupa Produktowa | Podgrupa | Opis | Numer seryjny | |
---|---|---|---|---|
Ex-Fluorescent Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 018/18 1/6-1 | 12265875101 | |
Ex-Fluorescent Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 018/18 1/6-2 | 12265875103 | |
Ex-Fluorescent Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 018/18 1/6-1 M | 12265875109 | |
Ex-Fluorescent Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 018/18 1/6-2 M | 12265875111 | |
Ex-Fluorescent Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 018/18 1/6-1 level gauge P2 | 12265875126 | |
Ex-Fluorescent Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 018/18 2/6-2 double terminal | 12265881111 | |
Ex-Fluorescent Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 018/18 V-CG-S 2/6-2 | 12265881103 | |
Ex-Fluorescent Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 018/18 V-CG-S 2/6-2M double terminal | 12265881311 | |
Ex-Fluorescent Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 018/18 V-CG-S 2/6-2 | 12265881211 | |
Ex-Fluorescent Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 036 1/6-1 | 12263875101 | |
Ex-Fluorescent Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 036 2/6-2 | 12263875103 | |
Ex-Fluorescent Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 036 level gauge P2 | 12263875125 | |
Ex-Fluorescent Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 036/36 1/6-1 | 12266875101 | |
Ex-Fluorescent Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 036/36 2/6-2 | 12266875103 | |
Ex-Fluorescent Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 036/36 1/6-1 M | 12266875109 | |
Ex-Fluorescent Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 036/36 2/6-2 M | 12266875111 | |
Ex-Fluorescent Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 036/36 2/6-2 double terminal | 12266881111 | |
Ex-Fluorescent Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 036/36 V-CG-S 2/6-2 | 12266881103 | |
Ex-Fluorescent Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 036/36 V-CG-S 2/6-2 double terminal | 12266881311 | |
Ex-Fluorescent Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 036/36 V-CG-S 2/6-2 M | 12266881211 | |
Ex-Fluorescent Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 058 1/6-1 | 12264875101 | |
Ex-Fluorescent Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 058 2/6-2 | 12264875103 | |
Ex-Fluorescent Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 058 2/6-2 M | 12264875111 | |
Ex-Fluorescent Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 058/58 1/6-1 | 12267875101 | |
Ex-Fluorescent Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 058/58 2/6-2 | 12267875103 | |
Ex-Fluorescent Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 058/58 2/6-2 M | 12267875111 | |
Ex-Fluorescent Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 058/58 V-CG-S 2/6-2 | 12267881103 | |
Ex-Fluorescent Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 058/58 V-CG-S 2/6-2 M | 12267881211 | |
Ex-Fluorescent Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-pole mounted light fitting eLLM 92 018/18 | 12268875101 | |
Ex-Fluorescent Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-pole mounted light fitting eLLM 92 036/36 | 12269875101 | |
Ex-LED-Ready Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 18W LED ready 1/6-1K,2x M25K 110-254V AC/DC | 12265600101 | |
Ex-LED-Ready Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 18W LED ready 2/6-2K M25K 110-254V AC/DC | 12265600103 | |
Ex-LED-Ready Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 18W LED ready 1/6-1M M20M 110-254V AC/DC | 12265600109 | |
Ex-LED-Ready Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 18W LED ready 2/6-2M M20M 110-254V AC/DC | 12265600111 | |
Ex-LED-Ready Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLM 92 18W LED ready 1/3-1K 25K 110-254V AC/DC | 12268600101 | |
Ex-LED-Ready Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 36W LED ready 1/6-1K M25K 110-254V AC/DC | 12266600101 | |
Ex-LED-Ready Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 36W LED ready 2/6-2K M25K 110-254V AC/DC | 12266600103 | |
Ex-LED-Ready Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 36W LED ready 1/6-1M M20M 110-254V AC/DC | 12266600109 | |
Ex-LED-Ready Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLK 92 36W LED ready 2/6-2M M20M 110-254V AC/DC | 12266600111 | |
Ex-LED-Ready Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent light fitting eLLM 92 36W LED ready 1/3-1K M25K 110-254V AC/DC | 12269600101 | |
Ex-LED-Ready Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent emergency light fitting eLLK 92 018/18 LED ready NIB 1/6-1K M25K 220-254 V/50/60 Hz | 12260679101 | |
Ex-LED-Ready Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent emergency light fitting eLLK 92 018/18 LED Ready NIB 2/6 -2M M20M 220-254 V/50/60 Hz | 12260679111 | |
Ex-LED-Ready Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent emergency light fitting eLLK 92 018/18 LED Ready NIB 2/6-1K M25 220-254 V/50/60 Hz | 12273679101 | |
Ex-LED-Ready Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent emergency light fitting eLLK 92 036/36 LED ready NIB 2/6-2M M20M 220-254 V/50/60 Hz | 12261679101 | |
Ex-LED-Ready Light Fittings | Ex-Light Fitting eLLK 92... and eLLK 92 ...LED-Ready | Ex-fluorescent emergency light fitting eLLK 92 036/36 LED ready NIB 1/6-1K M25K 220-254 V/50/60 Hz | 12261679111 | |
eLLK 92... (18-58 W) | eLLM 92.../.. (18 + 36 W)
![]() |
![]() |
eLLM |
eLLK |
Dimensions
Polar curve
Polar curve eLLK 92018/18 / eLLK 92036/36 |
Polar curve eLLK 92036 / eLLK 92058 |
Polar curve eLLK 92058/58 |
![]() |
![]() |
![]() |
Fixing materials eLLK 92 | |||
---|---|---|---|
Type | Corrosion protection | Number of Binding | no product |
Eye bolt A2 | galvanized | 2 | 22 480 002 000 |
Hexagen screw S4 | stainless steel | 2 | 22 480 054 000 |
Ceiling mounting bracket D92 incl. screws and washer |
stainless steel | 2 | 22 480 092 000 |
Fixing materials | |||||
---|---|---|---|---|---|
Type | Corrosion protection | for pipes DIN | Outer Ø D (mm) | Qty per light fitting | Order No. |
Pipe clamp | |||||
R12 | hot galvanizde | 1 1/4" | 38-42 | 2 | 22 480 462 000 |
R14 | CrNi | 1 1/4" | 38-42 | 2 | 22 480 464 000 |
R22 | hot galvanizde | 1 1/2" | 47-51 | 2 | 22 480 472 000 |
R24 | CrNi | 1 1/2" | 47-51 | 2 | 22 480 474 000 |
R32 | hot galvanizde | 2" | 56-60 | 2 | 22 480 482 000 |
R34 | CrNi | 2" | 56-60 | 2 | 22 480 484 000 |
Wall bracket W27 | hot galvanizde | 42,4 | 1 | 22 483 027 000 | |
Luminaire wall suspension 30° z incl. screws and washer | hot galvanizde | 2 | 22 480 000 122 |
