Výrobce: Sisel

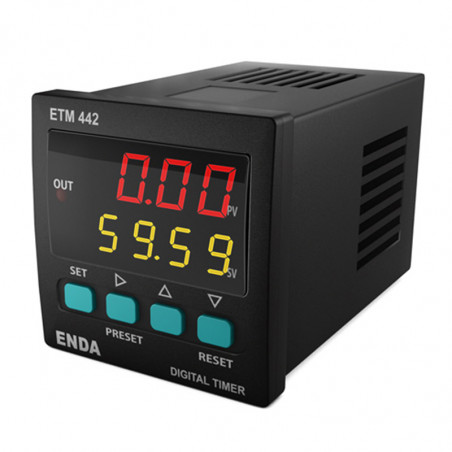

Digitální časové relé Etm442

Product withdrawn from sale
Replacement model - ENDA EM4401 Digital Timer

* 48x48mm sized.
* 2x4 digits display.
* Easy to use by front panel keypad.
* Selectable 9 different time bases between 0-99.99s and 0-9999h.
* Selectable PNP or NPN sensor type.
* Selectable up/down counting direction for time.
* Adjustable Minimum On and Off times for pulses.
* Operation with or without memory for each output type.
* 9 different output types.
* Bottom display can be adjusted to show time unit or set value.
* Selectable functional reset.
* Parameter access protection on 3 levels.
* Easy connection by removable screw terminal.
* CE marked according to European Norms.

Technical data
- Dimensions
48x48x87mm
- Scale
Selectable 9 different time bases between 0-99.99s and 0-9999h.
- Accuracy
±0,1% ±20ms
- Start
at impulse
- Output functions
9 programmable output functions
- output 1
1 relay(250VAC, 2A for resistive load, NC+NO)
- output II
Open collector (S. S. OUT), max 30 V DC, 100 mA
- Reset
By reset input
- Supply voltage
230VAC, +10%,-20%, 50/60Hz;  24 AC ±10% lub9-30VDC/7-24VAC±10%SMPS
- Power consumption
5VA
-Operation temperature
0...50°C
- Wiring
Panel assembly, screw clamps
- Weight
210g


Type Power supply
ETM442 230VAC+10% -20%
ETM442-SM 9-30VDC /7 7-24VAC


Dimensions


Terminals


Output functions
