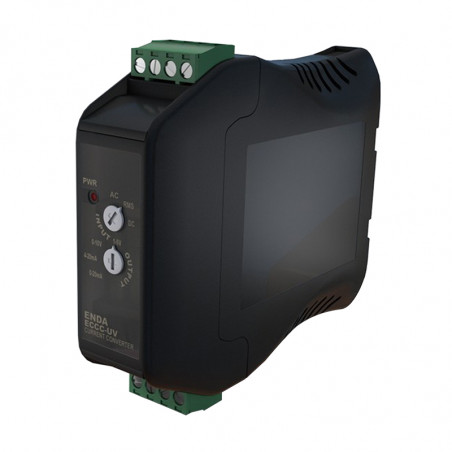

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: Sisel

Konfigurovatelný převodník ENA ECCC

ENDA ECCC Configurable Current Converter

Features:
  • Can be used with current transformer or shunt.
  • Measuring type can be selected as AC, DC
  • Configurable mAand V outputs.
  • Three-way isolation between Input, output and power supply .
  • Communication feature over RTU (Optional).
  • Rail mounted.
  • With screw-terminal connections.
  • CE marked according to European Norms..


Technical data

Inputs 0-5A AC/DC (Device may be damaged at 10Aand above currents)
0-60mV AC/DC (Device may be damaged at 50V and above voltages)
Input Impedances For 0-5A AC/DC (with internal shunt) input : 17mΩ.
For 0-60mV AC/DC (with external shunt) input : 100Ω.
Frequency Range AC , 10Hz - 200Hz (10Hz-70Hz for squarewave form )
Sampling Duration 250ms
A/D Converter 12 bit
D/A Converter 12 bit
Output 0-20mADC, 4-20mADC, 0-10V DC or 1-5V DC selectable.
(Load resistance for current outputs up to 500Ω)
Accuracy For AC : ±%1 (±%2 For square wave form)
For DC : ±%1
For RMS : ±%1 (±%2 For square wave form)
Supply For ECCC-UV : 90-250V AC, 50/60Hz
For ECCC-LV : 9-30V DC or 7-24V AC, 50/60Hz
Power Consumption Max. 7 VA
Connection 2,5mm² screw-terminal connections
EMC EN 61326-1: 2006
Security Requirements EN 61010-1: 2010 (Pollution degree 2, overvoltage category II)
Isolation T est Voltage For 3kV AC, at 1 minute min.. For 4,2kV DC, at 1 minute min..


Pin and diagrams

ENDA ECCC Configurable Current Converter
Dimensions

ENDA ECCC Configurable Current Converter
