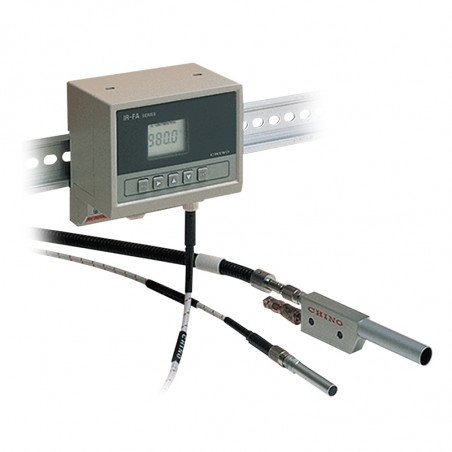

Fiber Optic pyrometry série IR-FA

IR-FA is monochromatic fibre pyrometers which allow to measure temperature in range 200 - 3000°C.

Type IR-FAI IR-FAS
Measuring system Single color type
Element InGaAs Si
Wavelength monochromatic
Accuracy ratings Lower than 1000°C: ±5°C
1000°C to 1500°C: ±0.5% of measured value
1500°C to 2000°C: ±1.0% of measured value
Higher than 2000°C: ±2% of measured value
Repeatability 0,2°C
Temperature drift 0.1°C/°C or 0.015% of measured value,
whichever is larger
Resolution 0,5°C
Response time 0,01 s
Emissivity (ratio) compensation: 1,999 ... 0,500
Signal modulation DELAY: Tracing of average value (smoothing) (Modulation ratio: 0.0 to 99.9 seconds, 0.1 second increment)
Modulation ratio 0 = REAL
PEAK: Tracing of maximum value ( Modulation ratio: 0, 2, 5, 10°C/second ), Modulation ratio 0 = PEAK HOLDi
Display LCD 4-digit (Temperature display, parameter display), °C/°F (key selection)
Analog output 4 to 20mADC isolated output (load resistance: 500Ω or lower)
Accuracy rating: ±0.2% of output range
Output resolution: 0.01% of output range (IR─FAC); 0.01% of output range (except IR─FAC)
Output scaling: Setting within measuring temperature range
Dummy output: Setting within 0 to 100% of analog output
Contact output 1-point, High (low) alarm or error signal, Photo-coupler 30VDC
Maximum 50mA
Contact input 1-point, peak hold reset or sample hold, Dry contact or open collector
Parameter setting by keys Operator mode: Settings of emissivity, signal modulation, alarms, etc.
Engineering mode: Settings of engineering unit (°C/°F), output scaling,
zero, span, reference temperature input for automatic
emissivity calculation, output correction, etc., Settings
of optional functions
Computing function Zero/span adjustment, automatic emissivity (ratio) computation (*2), Output correction
Self-diagnosis Thermometer temperature abnormal, Parameter error
Options Laser function Solid state built-in laser unit, 1mW (645nm) or less, Class 2 (not available in high sensitivity type)
Analog input Input signal: 4 to 20mADC
Remote setting of emissivity (ratio) or reference temperature input setting for automatic emissivity (ratio) computation
Communications IF RS─485, Transmitting of measured data (down to 1 decimal point), Transmitting/receiving of parameters
Working temperature 0...50oC
Rated power supply 24VDC (Allowable voltage fluctuation range: 22 to 28VDC), Recommended power unit: IR─ZFEP
Power consumption Maximum 3VA
Connection Cramp type no screw terminals
Mounting DIN rail mounting or wall mounting
Case material Resin
Dimensions 90x90x60 mm
Weight About 0,25 kg
CE CE EN55011 Grupa 1 Klasa A, EN50082-2
Type Distance/diameter [mm] Type Distance/diameter [mm]
IR-FL0H
IR-FL0N		 rysunek IR-FL4H
IR-FL4N		 rysunek
IR-FL1H
IR-FL1N		 rysunek IR-FL5H
IR-FL5N		 rysunek
IR-FL2H
IR-FL2N		 rysunek IR-FL6H
IR-FL6N		 rysunek
IR-FL3H
IR-FL3N		 rysunek IR-FL8H
IR-FL8N		 rysunek

STANDARD RANGES
Type Measuring
range Lens assembly
IR-FAI 150...450°C*
200...700°C
250...1000°C
300...1300°C		 IR-FL5
IR-FL6
250...1000°C
300...1300°C
350...1600°C		 IR-FL0,IR-FL1
IR-FL2,IR-FL3
IR-FL4,IR-FL8
IR-FAS 400...900°C*
500...1200°C
600...1800°C
700...2400°C		 IR-FL5
IR-FL6
600...1800°C
700...2400°C
800...3000°C		 IR-FL0,IR-FL1
IR-FL2,IR-FL3
IR-FL4,IR-FL8


Dimensions [mm]

Pyrometer
rysunek

Fiber without metallic protection tube

Fiber with metallic protection tube
rysunek rysunek
Lens assembly

Air purge case
rysunek rysunek
Soczewki0,1,2,345678
IR-FAI,FAS L 35 15 10 10,5 - 45
D 7,5 - 7,5
Soczewki0,1,2,345678
IR-FAI,FAS
FAQ		 L 10 30 35 34,5 - 0

Lens assembly

Air purge case
rysunek rysunek
rysunek Element
I: InGaAs
S: Si
rysunek External input/output (option)
N: Not provided
S: Communications interface
RS-485
5: Analog input, 4 to 20mADC
rysunek Laser function (option)
N: Not provided
L: Built-in
rysunek High sensitivity type
N: Not provided
U: High sensitivity type
(without laser)
rysunek Distance and diameter
0: Ø 1mm/100mm
1: Ø 12mm/1000mm
2: Ø 5mm/500mm
3: Ø 2mm/200mm
4: Ø 4mm/200mm
5: Ø 5mm/150mm
6: Ø 20mm/600mm
8: Ø 8mm/1000mm
rysunek Air purge case
N: Not provided
A: Provided
rysunek Fiber sheath
H: Without metallic protective
tube
M: With metallic protective
tube
rysunek Fiber length
02:2 m
04:4 m
Méně
Přečtěte si více

Zašlete dotaz

Máte zájem o tento produkt? Potřebujete další informace nebo individuální ceny?

Kontaktujte nás
ZEPTEJTE SE O PRODUKT close
Děkujeme za zaslání zprávy. Odpovíme co nejdříve.
ZEPTEJTE SE O PRODUKT close
Procházet
pošlete dotaz

Přidat do seznamu přání
