Výrobce: SOLEXY

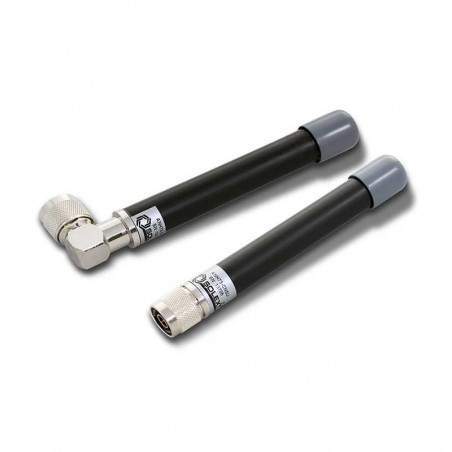

Anh Type J Series Antény

Heavy duty antenna J-pole ANH series

The range and performance of a RF link is critically dependent upon the antenna and it is one of the more complex aspects of on RF design. An antenna can make or break a wireless network. The proper antenna can optimize the range, reliability and performance of a radio network.



Features
J-Poletechnology This highly stable, higher gain antenna goes the distance and is in a smaller package compared to other high gain antennas. With a higher gain ground plane it is less sensitive to its installed environment ensuring stable communication at longer distances
ANH Heavy Duty series Rugged construction allows the use of our antennas in hostile envinronments where weather and abuse are a factor
Frequency Available for 868 MHz, 900 MHz and 2.4 GHz
N Male connector Available for vertical or 90°mounting

Specifications

Radiation Omni
Polarization Vertical
Wave J-Pole configuration
Connector N Male Brass nickel plated
Materiał UV resistant ABS
Ambient temp. range -40°C +80°C


ANF43
Frquency Range 855 - 883 MHz
Impedance (nominal) 50 Ohm at 868 MHz
VSWR 1.14 : 1 (Average)
Gain max 2.00 dBi




ANF53
Frquency Range 902 - 928 MHz
Impedance (nominal) 500 Ohm at 915 MHz
VSWR 1.14 : 1 (Average)
Gain max 2.00 dBi




ANF73
Frquency Range 2.35 - 2.55 GHz
Impedance (nominal) 500 Ohm at 2.45 GHz
VSWR 1.14 : 1 (Average)
Gain max 2.00 dBi




Rysunek



Nomenclature
ANF 5 2 C N S U
  a   b   c
a Frequency
  4 868 MHz
  5 900 MHz
  7 2,4GHz
b Antenna connection
  3 Female
  C Male
c Antenna mounting
  S Straight (vertical)
  R Elbow (90°)

Méně
