Výrobce: DACPOL

Dioda vysoké napětí svazky

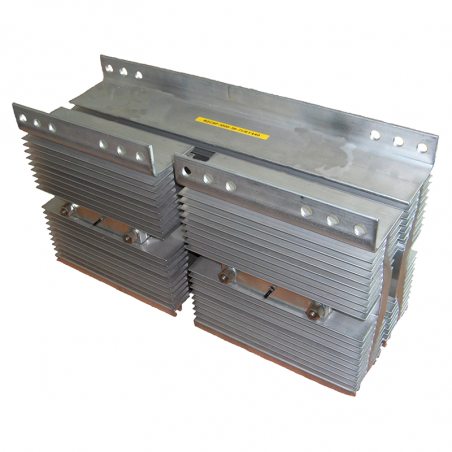

High voltage diode stacks are mounted from 7 diodes of size 6 connected in series and correct radiator system. There are : high voltage diode stacks type S7EU-B100-1 and S7EU-B103-1.


High voltage diode stacks are used in power electronic systems
- Anode voltage rectifiers in HF lamp generators
- Rail heating rectifiers
- high voltage supplies

TabelaTYP S7EU -B100-1, S7EU-B103-1

Stack type

S7eU-B100-1N

S7eU-B100-1R

S7eU-B103-1N

S7eU-B103-1R
Nominal voltage - peak value UB 19000V 19000V
Mean current IB(AV) According to drawing 3 According to drawing 3
Overcurrent IFSM 5000A 5000A
AC voltage frequency 45 - 500 Hz
Cooling Natural air
Protection
Over voltage protection Needs to be additionally protected
Over current protection Needs to be additionally protected
Circuits which  improves backward voltages distribution and allow for correct nominal voltage value. (B) -resistor 500kW,5W
-Circuit RC R=20W,C=0,5mF Uł3000V
Environmental conditions
Ambient temperature +10 - 60°C
Atmospheric pressure 860 do 1060 hPa
humidity @ +40°C up to 80%
Weight and dimensions
Stack dimensions Drawing 1 Drawing 2
Weight 1,5 kg 1,7 kg

Drawing 1


Caution
high voltage diode stack S7EU-B100
1 - conducting direction S7EU-B100-1N
2 - conducting direction S7EU-B100-1R

Drawing 2


Caution
  high voltage diode stackS7EU-B100
1 - conducting direction S7EU-B103-1N
2 - conducting direction S7EU-B103-1R


Drawing 3
Current vs ambient temperature: 1 - S7EU-B103-1 2 - S7EU-B100-1
