4. Modul generování IPM - série S-DASH
  • 4. Modul generování IPM - série S-DASH

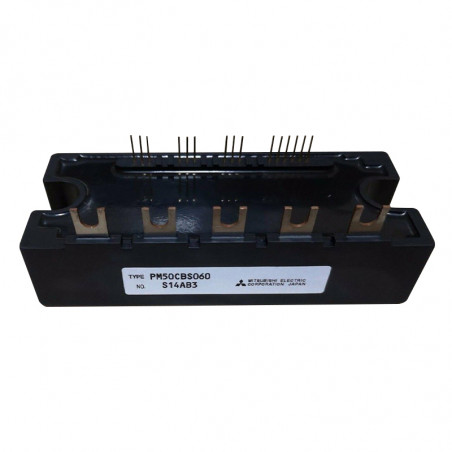

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: Mitsubishi

4. Modul generování IPM - série S-DASH

Type numberMaximum parametersVce(sat)
@ Tj=25°C
[V]
Casing
V CES
[V]
lc
[A]
Pt
[W]
300V
PM50CBS060 600 50 152 1/7 SD1
PM50CSD060 600 50 125 1,7 SD3
PM50RSD060 600 50 125 1/7 SD3
PM75CBS060 600 75 462 1/7 SD1
PM75CSD060 600 75 255 1/7 SD3
PM75RSD060 600 75 255 1/7 SD3
PM100CBS060 600 100 568 1/7 SD1
PM100CSD060 600 100 328 1/7 SD3
PM100RSD060 600 100 328 1/7 SD3
PM150CBS060 600 150 735 1/7 SD1
PM150CSD060 600 150 416 1/7 SD3
PM150RSD060 600 150 416 1/7 SD3
PM200CBS060 600 200 961 1/7 SD2
PM200CSD060 600 200 595 1/7 SD4
PM200RSD060 600 200 595 1/7 SD4
PM300CBS060 600 300 1250 1/7 SD2
PM300CSD060 600 300 781 1/7 SD4
PM300RSD060 600 300 781 1,7 SD4
1200V
PM50CSD120 1200 50 328 2,4 SD3
PM50RSD120 1200 50 328 2,4 SD3
PM75CSD120 1200 75 416 2,4 SD3
PM75RSDl 20 1200 75 416 2,4 SD3
PM100CSD120 1200 100 595 2,4 SD4
PM100RSD120 1200 100 595 2,4 SD4
PM150CSD120 1200 150 781 2,4 SD4
PM150RSD120 1200 150 781 2,4 SD4

SymbolInternal functions
C 3 phase device with driver and protection: OC/SC/OT/UV
R 3 phase device with driver, break and protection: OC/SC/OT/UV

PM100CBS060, PM150CBS060, PM50CBS060, PM75CBS060, PM200CBS060, PM300CBS060 PM100CSD060, PM100RSD060, PM150CSD060, PM150RSD060, PM50CSD060, PM50CSD120,
PM50RSD060, PM50RSD120, PM75CSD060, PM75CSD120, PM75RSD060, PM75RSDl20
PM200CBS060, PM300CBS060 PM100CSD120, PM100RSD120, PM150CSD120, PM150RSD120, PM200CSD060, PM200RSD060, PM300CSD060, PM300RSD060
