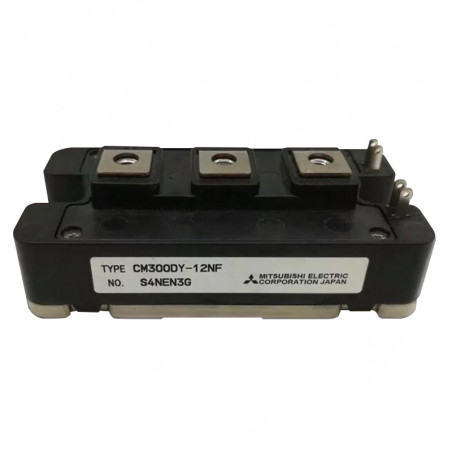

![5. generace IGBT moduly TRENTCH - NF série 5. generace IGBT moduly TRENTCH - NF série](https://www.dacpol.eu/6299-large_default/5-generace-igbt-moduly-trentch-nf-serie.jpg)
![5. generace IGBT moduly TRENTCH - NF série 5. generace IGBT moduly TRENTCH - NF série](https://www.dacpol.eu/6299-large_default/5-generace-igbt-moduly-trentch-nf-serie.jpg)
Musíte být přihlášen
Category
Montaż urządzeń
Modernizacja induktorów
Urządzenia indukcyjne
asd
Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu
please use latin characters
Newest generation IGBT modules with CSTBT structure (Carrier Stored Trench Bipolar Transistor), have very low switching and conducting power losses which allow to use them in fast applications(~50kHz).
Type | Maximal parameters | Vce(sat) | td(on) (ns) |
IGBT Rth(j-c) (°C/W) |
Diode R th(j-c) (°C/W) |
Casing | |
---|---|---|---|---|---|---|---|
Vces [V] |
Ic [A] |
@ Tj=25°C [V] |
|||||
600 V (half-bridge) | |||||||
CM150DY-12NF | 600 | 150 | 1,7 | 100 | 0.21 | 0.47 | NF1 |
CM200DY-12NF | 600 | 200 | 1,7 | 120 | 0.19 | 0.35 | NF1 |
CM300DY-12NF | 600 | 300 | 1,7 | 120 | 0.16 | 0.25 | NF1 |
CM400DY-12NF | 600 | 400 | 1,7 | 200 | 0.11 | 0.19 | NF2 |
CM600DY-12NF | 600 | 600 | 1,7 | 300 | 0.11 | 0.18 | NF3 |
600V (3-phase bridge) | |||||||
CM75TL-12NF | 600 | 75 | 1.7 | 100 | 0.29 | 0.51 | NF4 |
CM100TL-12NF | 600 | 100 | 1.7 | 100 | 0.23 | 0.41 | NF4 |
CM150TL-12NF | 600 | 150 | 1.7 | 100 | 0.17 | 0.31 | NF4 |
CM200TL-12NF | 600 | 200 | 1.7 | 100 | 0.14 | 0.22 | NF5 |
600V (3-phase bridge + chopper) | |||||||
CM75RL-12NF | 600 | 75 | 1.7 | 100 | 0.29 | 0.51 | NF4 |
CM100RL-12NF | 600 | 100 | 1.7 | 100 | 0.23 | 0.41 | NF4 |
CM150RL-12NF | 600 | 150 | 1.7 | 100 | 0.17 | 0.31 | NF4 |
CM200RL-12NF | 600 | 200 | 1.7 | 100 | 0.14 | 0.22 | NF5 |
Typ | Maximal parameters | Vce(sat) | IGBT Rth(j-c) (°C/W) |
Diode R th(j-c) (°C/W) |
Casing | |
---|---|---|---|---|---|---|
Vces [V] |
Ic [A] |
@ Tj=25°C [V] |
||||
1200V (half-bridge) | ||||||
CM75DY-24NF | 1200 | 75 | 1.8 | 0.290 | 0.470 | NF1 |
CM100DY-24NF | 1200 | 100 | 1.8 | 0.190 | 0.350 | NF1 |
CM150DY-24NF | 1200 | 150 | 1.8 | 0.160 | 0.250 | NF1 |
CM200DY-24NF | 1200 | 200 | 1.8 | 0.110 | 0.190 | NF2 |
CM300DY-24NF | 1200 | 300 | 1.8 | 0.110 | 0.180 | NF3 |
CM400DY-24NF | 1200 | 400 | 1.8 | 0.085 | 0.150 | NF3 |
CM600DU-24NF | 1200 | 600 | 1.95 | 0.060 | 0.110 | NF6 |
CM900DU-24NF | 1200 | 900 | 1.8 | 0.049 | 0.078 | NF7 |
CM1400DU-24NF | 1200 | 1400 | 1.8 | 0.032 | 0.053 | NF7 |
1200V (3-phase bridge) | ||||||
CM50TL-24NF | 1200 | 50 | 2.1 | 0.32 | 0.43 | NF4 |
CM75TL-24NF | 1200 | 75 | 2.1 | 0.24 | 0.36 | NF4 |
CM100TL-24NF | 1200 | 100 | 2.1 | 0.20 | 0.28 | NF4 |
CM150TL-24NF | 1200 | 150 | 2.1 | 0.14 | 0.23 | NF5 |
CM200TL-24NF | 1200 | 200 | 2.1 | 0.11 | 0.17 | NF5 |
1200V (3-phase bridge + chopper) | ||||||
CM50RL-24NF | 1200 | 50 | 2.1 | 0.32 | 0.43 | NF4 |
CM75RL-24NF | 1200 | 75 | 2.1 | 0.24 | 0.36 | NF4 |
CM100RL-24NF | 1200 | 100 | 2.1 | 0.20 | 0.28 | NF4 |
CM150RL-24NF | 1200 | 150 | 2.1 | 0.14 | 0.23 | NF5 |
CM200RL-24NF | 1200 | 200 | 2.1 | 0.11 | 0.17 | NF5 |
1700V (half-bridge) | ||||||
CM1000DU-34NF | 1700 | 1000 | 2.2 | 0.014 | 0.023 | MPD1 |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
