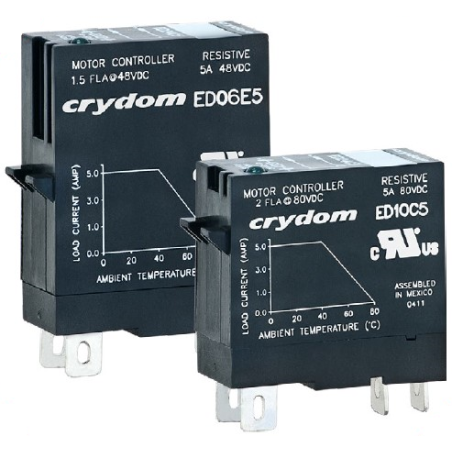

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: Crydom

SÉRIE ED

Sensata | Crydom ED series plug-in DC output solid-state relays have been designed to replace standard 12 x 29mm industrial electromechanical relays, offering significant performance advantages over traditional EMR switching solutions in many applications.

Available in SPST N.O. configuration, the ED series offers a 5 or 10 amp output range at 1 to 100 VDC and is recognized by UL 508, classified by IEC, and approved by CE.

Features

  • DC output solid-state relay in a plug-in standard industrial EMR housing
  • 5 and 10 amp output range
  • Load voltage range of 1-48, 1-80, and 1-100 VDC
  • Fits DIN rail and is PCB socket mountable
  • LED status indicator
  • AC or DC control
  • Recognized by cUL, classified by IEC, compliant with CE and RoHS
  • Motor controller

Applications

  • Battery management systems
  • Uninterruptible power supplies (UPS)
  • Valves
  • Vending machines
  • Lighting control
  • Medical equipment
  • Test equipment

Product Selection

Control Voltage 5A 5A 10A
5-15 VDC ED06D5 ED10D5 ED10D10
18-32 VDC ED06C5 ED10C5 ED10C10
48-72 VDC ED06F5 ED10F5
18-36 VDC ED06E5 ED10E5
90-140 VDC ED06B5 ED10B5


DC Output Specification

Description 5A 5A 10A
Operating Voltage [VDC] 1-48 1-80 1-100
Maximum Load Current at 40 degrees Celsius [ADC] 5 5 10
Maximum Load Current for UL 508 Motor Controller [FLA] 2.0 2.0 N/A
Minimum Load Current [mAdc] 2.5 2.5 2.5
Maximum Leakage Current at Rated Voltage [uA] 20 20 20
Maximum Voltage Drop during Operation at Rated Current and 40 degrees Celsius [Vdc] 0.3 0.3 0.5
Maximum Surge Current (10ms) [Adc] 60 60 80
Maximum PWM Frequency (Hz) 500 500 25


Input Specification

Description EDxxD5 ED10D10 EDxxC5 ED10C10 EDxxF5 EDxxE5 EDxxB5
Control Voltage Range 5-15 VDC 5-15 VDC 18-32 VDC 18-32 VDC 48-72 VDC 18-36 VAC 90-140 VAC
Minimum Turn-On Voltage 5 VDC 5 VDC 18 VDC 18 VDC 48 VDC 18 VAC 90 VAC
Minimum Turn-Off Voltage 1.3 VDC 1.3 VDC 2 VDC 2 VDC 4 VDC 4 VAC 11 VDC
Maximum Reverse Voltage 3 VDC 3 VDC 3 VDC 3 VDC 3 VDC N/A N/A
Minimum Input Current [mA] 11 12 10.7 8 10.8 12 7.3
Maximum Input Current [mA] 42.8 44 19.7 13 16.3 25.3 10.9
Rated Input Impedance 350 350 1.6K 3K 4.4K 1.5K 12.5K
Maximum Turn-On Time [msec] 0.6 0.6 0.6 0.6 0.6 0.6 0.6
Maximum Turn-Off Time [msec] 0.3 0.2 0.3 0.2 0.3 0.3 0.3


General Specification

Description Parameters
Dielectric Strength, Input to Output (50/60Hz) 2500 Vrms
Minimum Insulation Resistance (at 500V DC) 109 Ohms
Maximum Capacitance, Input/Output 10pF
Ambient Operating Temperature Range -30 to 80 degrees Celsius
Ambient Storage Temperature Range -40 to 125 degrees Celsius
Weight (typical) 30 g
Maximum Humidity 95% non-condensing
Enclosure Material PBT 30% GF, UL94 V-0
Contact Material Copper with nickel sulfide finish
