Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: John-Guest

Spojky

PM products for metric pipes are made from black acetal copolymer and designed for food industry ring washer made from nitrile.
Products from this series are destined to cooperate with liquids, air and neutral gasses. They are also good for pneumatic and under pressure installations in industrial applications.

Male connector
Producer number pipe external diameter Thread
BSP		 A B C ØD Ø E
PM010411E 4 1/8” 17 14 5.5 2.5 15
PM010412E 4 1/4" 16 17 8.0 2.5 18
PM010511E 5 1/8" 17 14 5.5 3.5 15
PM010512E 5 1/4" 16 17 8.0 3.5 18
PM010611E 6 1/8" 20 15 5.5 4.0 16
PM010612E 6 1/4" 16 17 8.0 5.0 18
PM010811E 8 1/8" 20 17 5.5 4.0 18
PM010812E 8 1/4" 16 17 8.0 6.0 18
PM010813E 8 3/8" 16 22 9.5 6.5 24
PM011012E 10 1/4" 23 20 8.0 7.0 22
PM011013E 10 3/8" 19 22 9.5 7.5 24
PM011014E 10 1/2" 18 27 12.5 7.5 30
PM011213E 12 3/8" 21 24 9.5 8.5 26
PM011214E 12 1/2" 22 27 12.5 8.5 30
PM011514E 15 1/2" 26 27 12.5 12.0 8.5 30
PM011516E 15 3/4" without washer
PM011814E 18 1/2" 46 30 12.5 12.7 36
PM012216E 22 3/4" 46 32 15.0 17.0 36

Male connector
producer number pipe external diameter Thread
BSP		 A B C ØD Ø E
PM010401E 4 1/8" 15 15 10 25 17
PM010402E 4 1/4" 14 17 11 25 18
PM010501E 5 1/8" 15 15 10 3.5 17
PM010502E 5 1/4" 14 17 11 3.5 18
PM010601E 6 1/8" 18 17 10 4.0 18
PM010602E 6 1/4" 14 17 11 5.0 18
PM010801E 8 1/8" 19 17 10 4.0 18
PM010802E 8 1/4" 14 17 11 6.0 18
PM010803E 8 3/8" 14 20 13 7.0 22
PM011002E 10 1/4" 21 20 11 7.0 22
PM011003E 10 3/8" 17 20 13 7.0 22
PM011004E 10 1/2" 15 22 16 7.5 24
PM011203E 12 3/8" 27 24 13 8.5 26
PM011204E 12 1/2 22 24 16 8.5 26
PM010622E* 6 1/4" na życzenie

Union tee
producer number external pipe diameter A B C ØD
PM0204E 4 35 24 18 2.5
PM0205E 5 35 24 18 3.5
PM0206E 6 40 27 20 5.0
PM0208E 8 42 30 21 6.5
PM0210E 10 50 35 25 7.5
PM0212E 12 65 44 32 8.5
PM0215E 15 73 50 37 12.0
PM0218E 18 89 61 44 16.0
PM0222E 22 98 67 49 19.2
PM0228E 28 121 85 60 23.0

Union elbow
producer number external pipe diameter A B C ØD
PM0304E 4 24 24,00 18 2.5
PM0305E 5 24 24,00 18 3.5
PM0306E 6 27 27,00 20 5.0
PM0308F 8 30 30,00 21 6.5
PM0310E 10 35 35,00 25 7.5
PM0312E 12 44 44,00 32 8.5
PM0315E 15 50 50,00 37 12.0
PM0318E 18 60 60,00 44 16.0
PM0322E 22 67 67,00 49 19.2
PM0328E 28 85 85,00 60 23.0
PM0228E 28 121 85 60 23.0

Union connector
producer number external pipe diameter A ØB ØC
PM0404E 4 32 14 2.5
PM0405E 5 32 14 3.5
PM0406E 6 35 15 5.0
PM0408E 8 42 18 6.5
PM0410E 10 42 20 7.5
PM0412E 12 51 23 8.5
PM0415E 15 62 28 12.0
PM0418E 18 65 32 16.0
PM0422E 22 71 36 19.2
PM0428E 28 91 50 23.0

Stem adapter
producer number pipe external diameter Thread
BSP		 A B C ØD Ø E
PM050411E 4 1/8" 20 14 5.5 2.5 15
PM050412E 4 1/4" 21 17 8.0 2.5 18
PM050511E 5 1/8" 20 14 5.5 3.5 15
PM050512E 5 1/4" 21 17 8.0 3.5 18
PM050611E 6 1/8" 22 15 5.5 4.0 16
PM050612E 6 1/4" 22 17 8.0 4.0 18
PM050811E 8 1/8" 23 17 5.5 4.0 18
PM050812E 8 1/4" 23 17 8.0 5.5 18
PM050813E 8 3/8" 23 22 9.5 5.5 24
PM051012E 10 1/4" 26 20 8.0 7.0 22
PM051013E 10 3/8" 26 22 9.5 7.0 24
PM051014E 10 1/2" 26 27 12.5 7.0 30
PM051213E 12 3/8" 31 24 9.5 8.5 26
PM051214E 12 1/2" 31 27 12.5 8.5 30
PM051513E 15 3/8" 43 22 11.5 9.5 24
PM051214E 12 1/2" 43 22 11.5 9.5 24
PM051814E 18 1/2" 50 27 14.5 12.7 30
PM052214E 22 1/2" 60 27 14.5 12.2 30
PM052216E 22 3/4" 52 37 17.0 17.0 40
MM052818N* 28 1" 65 36 14.0 23.0 41

Stem adapter
producer number pipe external diameter Thread
BSP		 A B C ØD Ø E
PM050401E 4 1/8" 19 15 10 17 2.5
PM050402E 4 1/4" 19 17 11 18 2.5
PM050501E 5 1/8" 19 15 10 17 3.5
PM050502E 5 1/4" 19 17 11 18 3.5
PM050601E 6 1/8" 20 17 10 18 4.0
PM050602E 6 1/4" 20 17 11 18 4.0
PM050801E 8 1/8" 21 17 10 18 4.0
PM050802E 8 1/4 21 17 11 18 5.5
PM050803E 8 3/8" 21 20 13 22 5.5
PM051002E 10 1/4" 24 20 11 22 7.0
PM051003E 10 3/8" 24 20 13 22 7.0
PM051004E 10 1 /2" 24 9? 16 24 7.0
PM051203E 12 3/8" 29 24 13 26 8.5
PM051204E 12 1/2" 29 24 16 26 8.5

Reducer
producer number pipe external diameter Thread
BSP		 A B C ØD Ø E
PM060504E 5 4 35 18 13 5 2.5
PM060604E 6 4 36 18 13 6 2.5
PM060605E 6 5 36 18 13 6 3.5
PM060804E 8 4 37 18 13 8 3.5
PM060805E 8 5 37 18 13 8 4.0
PM060806E 8 6 37 18 15 8 5.0
PM061006E 10 6 40 18 15 10 5.0
PM061008E 10 8 40 18 18 10 6.0
PM061208E 12 8 46 19 18 12 6.0
PM061210E 12 10 50 23 20 12 7.4
PM061510E 15 10 56 23 20 15 7.4
PM061512E 15 12 61 28 23 15 9.0
PM061815E 18 15 72 35 27 18 12.0
PM062215E 22 15 72 35 32 22 12.0
PM062218E 22 18 72 35 32 22 16.0
PM062815E 28 15 na życzenie
PM062822E 28 22 82 36 36 28 17.0

Plug
producer number external pipe diameter A ØB ØC
PM0804R 4 12.7 3.3 25.4
PM0805R 5 12.7 3.3 25.9
PM0806R 6 15.2 3.8 26.2
PM0808R 8 17.8 4.1 26.9
PM0810R 10 19.6 46 31.2
PM0812R 12 21.6 47 33.9
PM0815E 15 24.9 5.0 40.0
PM0818E 18 28.2 5.0 40.0
PM0822E 22 32 4.7 40.3
PM0828E 28 40 4.0 52.0

Swivel elbow
producer number pipe external diameter Thread A B C ØD Ø E ØF
PM090411E 4 1/8" 24 0 30.0 5.5 14 2.5 15.0
PM090412E 4 1/4" 24.0 31.0 8.0 17 2.5 18.0
PM090511E 5 1/8" 24.0 30.0 5.5 14 3.5 15.0
PM090512E 5 1/4" 24.0 31.0 8.0 17 3.5 18.0
PM090611E 6 1/8" 27.0 34.0 5.5 15 4.0 16.0
PM090612E 6 1/4" 27.0 35.0 8.0 17 4.0 18.0
PM090811E 8 1/8" 30.0 36.0 5.5 17 4.0 18.0
PM090812E 8 1/4" 30.0 37.0 8.0 17 5.5 18.0
PM090813E 8 3/8" 30.0 37.0 9.5 22 5.5 24.0
PM091012E 10 1/4" 35.0 42.0 8.0 20 7.0 22.0
PM091013E 10 3/8" 35.0 42.0 9.5 22 7.0 24.0
PM091014E 10 1/2" 35,00 42.0 12.5 27 7.0 30.0
PM091213E 12 3/8" 44.0 50.0 9.5 24 8.5 26.0
PM091214E 12 1/2" 44.0 50.0 12.5 27 8.5 30.0
PM091513E 15 3/8" 50.6 65.5 11.3 22 9.4 24.0
PM091514E 15 1/2" 50.6 65.5 14.5 27 10.0 29.8
PM091814E 18 1/2" 59.7 77.0 14.5 27 12.7 29.8
PM092214E 22 1/2" 66.0 82.0 14.5 27 12.15 29.8
PM092216E 22 3/4" 66.0 83.6 17.0 37 17.0 40.00

Swivel elbow
producer number pipe external diameter Thread
BSP		 A B C ØD Ø E ØF
PM090401E 4 1/8" 24,00 29 10 15 2.5 17
PM090402E 4 1/4" 24,00 29 11 17 2.5 18
PM090501E 5 1/8" 24,00 29 10 15 3.5 17
PM090502E 5 1/4" 24,00 29 11 17 3.5 18
PM090601E 6 1/8" 27,00 32 10 17 4.0 17
PM090602E 6 1/4" 27,00 32 11 17 4.0 18
PM090801E 8 1/8" 30,00 35 10 17 4.0 17
PM090802E 8 1/4" 30,00 35 11 17 5.5 18
PM090803E 8 3/8" 30,00 35 13 20 5.5 22
PM091002E 10 1/4" 35,00 40 11 20 7.0 18
PM091003E 10 3/8" 35,00 40 13 20 7.0 22
PM091004E 10 1/2" 35,00 40 16 22 7.0 26
PM091203E 12 3/8" 44,00 49 13 24 8.5 22
PM091204E 12 1/2" 44,00 49 16 24 8.5 26

Swivel branch
producer number pipe external diameter Thread
BSP		 A B C ØD Ø E ØF
PM100411E 4 1/8" 35,00 30 5.5 14 2.5 15
PM100412E 4 1/4" 35,00 31 8.0 17 2.5 18
PM100511E 5 1/8" 35,00 30 5.5 14 3.5 15
PM100512E 5 1/4" 35,00 31 8.0 17 3.5 18
PM100611E 6 1/8" 40,00 33 5.5 15 4.0 16
PM100612E 6 1/4" 40,00 34 8.0 17 4.0 18
PM100811E 8 1/8" 42,00 36 5.5 17 4.0 18
PM100812E 8 1/4" 42,00 37 8.0 17 5.5 18
PM100813E 8 3/8" 42,00 37 9.5 22 5.5 24
PM101012E 10 1/4" 50,00 42 8.0 20 7.0 22
PM101013E 10 3/8" 50,00 42 9.5 22 7.0 24
PM101014E 10 1/2 50,00 42 12.5 27 7.0 30
PM101213E 12 3/8" 65,00 50 9.5 24 8.5 26
PM101214E 12 1/2" 65,00 50 12.5 27 8.5 30

Swivel branch
producer number pipe external diameter Thread
BSP		 A B C ØD Ø E ØF
PM100401E 4 1/8" 35 29 10 15 2.5 17
PM100402E 4 1/4" 35 29 11 17 2.5 18
PM100501E 5 1/8" 35 29 10 15 3.5 17
PM100502E 5 1/4" 35 29 11 17 3.5 18
PM100601E 6 1/8" 40 32 10 17 4.0 18
PM100602E 6 1/4" 40 32 11 17 4.0 18
PM100801E 8 1/8" 42 35 10 17 4.0 18
PM100802E 8 1/4" 42 35 11 17 5.5 18
PM100803E 8 3/8" 42 35 13 20 5.5 22
PM101002E 10 1/4" 50 40 11 20 7.0 22
PM101003E 10 3/8" 50 40 13 20 7.0 22
PM101004E 10 1/2" 50 40 16 22 7.0 24
PM101203E 12 3/8" 65 49 13 24 8.5 26
PM101204E 12 1/2" 65 49 16 24 8.5 30

Swivel branch
producer number pipe external diameter Thread
BSP		 A B C ØD Ø E ØF
PM110411E 4 1/8" 42,00 24 5.5 14 2.5 15
PM110412E 4 1/4" 42,00 24 8.0 17 2.5 18
PM110511E 5 1/8" 42,00 24 5.5 14 3.5 15
PM110512E 5 1/4" 42,00 24 8.0 17 3.5 18
PM110611E 6 1/8" 46,00 27 5.5 15 4.0 16
PM110612E 6 1/4" 46,00 27 8.0 17 4.0 18
PM110811E 8 1/8" 49 00 30 5.5 17 4.0 18
PM110812E 8 1/4" 49,00 30 8.0 17 5.5 18
PM110813E 8 3/8" 49,00 30 9.5 22 5.5 24
PM111012E 10 1/4" 57,00 35 8.0 20 7.0 22
PM111013E 10 3/8" 57,00 35 9.5 22 7.0 24
PM111014E 10 1/2" 57,00 35 12.5 27 7.0 30
PM111213E 12 3/8" 71,00 44 9.5 24 8.5 26
PM111214E 12 1/2" 71,00 44 12.5 27 8.5 30

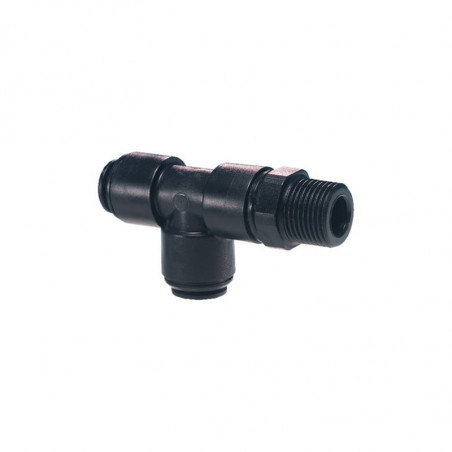

BSPT Thread - Male Run Tee
producer number pipe external diameter Thread
BSP		 A B C ØD Ø E ØF
PM110401E 4 1/8" 40 24 10 15 2.5 17
PM110402E 4 1/4 40 24 11 17 2.5 18
PM110501E 5 1/8" 40 24 10 15 35 17
PM110502E 5 1/4" 40 24 11 17 3.5 18
PM110601E 6 1/8" 44 27 10 17 4.0 18
PM110602E 6 1/4 44 27 11 17 4.0 18
PM110801E 8 1/8" 50 30 10 17 4.0 18
PM110802E 8 1/4" 50 30 11 17 5.5 18
PM110803E 8 3/8" 50 30 13 20 5.5 22
PM111002E 10 1/4" 55 35 11 20 7.0 22
PM111003E 10 3/8" 55 35 13 20 7.0 22
PM111004E 10 1/2" 55 35 16 22 7.0 24
PM111203E 12 3/8" 70 44 13 24 8.5 26
PM111204E 12 1/2" 70 44 16 24 8.5 26

Extension connector
producer number pipe external diameter Thread
BSP		 A B ØD ØE ØF
PM13M05E 5 4 34 18 13 4 2.5

Bulkhead connector
producer number pipe external diameter A B C ØD E F ØG ØH I J ØK
PM1204E 4 35 25 13.5 22.9 19 3/8" 2.5 16.5 20 15 17.0
PM1205E 5 35 25 13.5 22.9 19 3/8" 3.0 16.5 20 15 170
PM1206E 6 34 25 13.5 22.9 19 3/8" 5.0 16.5 20 15 17.0
PM1208E 8 40 29 16.0 27.4 22 1/2" 6.0 21.0 25 20 21 5
PM1210E 10 41 29 16.0 27.4 22 1/2" 7.5 21.0 25 20 21.5
PM1212E 12 52 38 22.5 38.1 28 3/4" 8.5 26.5 32 24 27.0

Reduction
producer number external pipe diameter internal pipe diameter A ØB ØC
PM200604E 6 4 35 15 2.5
PM200804E 8 4 42 18 2.5
PM200806E 8 6 42 18 50
PM201004E 10 4 42 20 2.5
PM201006E 10 6 42 20 5.0
PM201008E 10 8 42 20 6.5
PM201208E 12 8 53 23 6.4
PM201210E 12 10 54 24 7.6

Reducing elbow
producer number external pipe diameter internal pipe diameter A B C ØD
PM210604E 6 4 27 27 20 2.5
PM210804E 8 4 30 29 21 2.5
PM210806E 8 6 30 29 21 5.0
PM211004E 10 4 35 34 25 2.5
PM211006E 10 6 35 34 25 5.0
PM211008E 10 8 35 35 25 6.5
PM211208E 12 8 43 41 33 6.4
PM211210E 12 10 45 43 33 7.6

Plug in elbow
producer number external pipe diameter stub pipe diameter A B C ØD ØE ØF
PM220404E 4 4 22 13 9 17 4 2.5
PM220505E 5 5 22 13 9 17 5 3.5
PM220606E 6 6 25 15 11 18 6 4.0
PM220808E 8 8 27 18 13 19 8 5.5
PM221010E 10 10 33 20 15 24 10 7.0
PM221212E 12 12 39 23 18 28 12 8.5
PM221515E 15 15 51 27 19 34 15 10.5
PM221818E 18 18 53 31 25 32 18 16
PM222222E 22 22 59 35 25 36 22 18

Two way divier
producer number external pipe diameter A B C ØD ØE
PM2304E 4 37.0 28.5 15.0 13.0 2.5
RM2306E* 6 35.5 26.8 12.9 13.9 4.5
PM2308E 8 50.0 41.0 21.6 20 0 5.5
PM2310E* 10 46.0 39.5 19.6 19.0 6.6
RM2312E* 12 55.5 44.2 21.9 22.3 8.5

Tube to hose steam
producer number stub pipe diameter pipe arbor for internal pipe diameter ØA ØB ØC D E F ØG
PM250604E 6 4 6.0 6.1 13.0 42.0 18.0 20.8 2.8
PM250806E 8 6 8.0 6.9 13.0 43.1 19. 3 20.8 3. 5
PM251008E 10 8 10.0 10.0 17.8 50.0 22. 2 24.8 6. 7

Steam to steam adaptor
producer number ØA ØB C
NC478 15 9.5 77

Złączka wtykowa w kształcie trójnika
Nr producenta śr. zewn. rury śr. zewn. rury śr. zewn. rury A B C ØD
PM3018AE 18 18 15 87 56 40 12
PM3022AE 22 22 15 90 60 42 19.2

Złączka wtykowa z gwintem wewnetrzynym
Nr producenta śr. zewn. rury gwint A ØB ØC ØD E
PM450411E 4 1/8"BSP 28.0 13.0 15.4 2.4 14.0
PM450611E 6 1/8" BSP na życzenie
PM450612E 6 1/4" BSP 32.0 16.6 18.6 4.8 17.0
PM450812E 8 1/4" BSP 32.5 16.6 18.6 6.2 17.0
PM451015FE 10 5/8" BSP na życzenie
PM4508F4S 8 7/16"x20UNF 34.0 19.8 17.5 4.6 16.0
PM4508C5S 8 1/2-16" UNS 36.5 19.8 21.7 4.6 20.0

Końcówka rurowa
Nr producenta śr.zewn. rury
PM4612E 12 mm na życzenie
PM4615E 15 mm na życzenie
PM4622E 22 mm na życzenie

Złączka wkręcana kolankowa
Nr producenta śr. zewn. rury gwint NPTF
PM480621E 6 1/8" na życzenie
PM480622E 6 1/4" na życzenie
PM480623E 6 3/8" na życzenie

Reduktor klankowy(40°)
Nr producenta śr. zewn. rury śr.wewn. rury A B ØD ØC
NC657 12 8 48,8 33.3 22,9 16.0

Kolanko zwrotne
Nr producenta śr. zewn. rury śr.wewn. rury A B ØC
PMUB15E 15,0 13,0 54,5 48,0 26,0

Złączka nakręcana
Nr producenta śr. zewn. rury gwint
NC2380 6 mm 3/4"
NC2381 8 mm 3/4"
NC2382 10m 3/4

Złączka redukcyjna
producenta śr. zewn. rury gwint A B
NC688 3/4" 1/4" 21 35
Méně
Přečtěte si více

Zašlete dotaz

Máte zájem o tento produkt? Potřebujete další informace nebo individuální ceny?

Kontaktujte nás
ZEPTEJTE SE O PRODUKT close
Děkujeme za zaslání zprávy. Odpovíme co nejdříve.
ZEPTEJTE SE O PRODUKT close
Procházet
pošlete dotaz

Přidat do seznamu přání

musíš být přihlášen

PM products for metric pipes are made from black acetal copolymer and designed for food industry ring washer made from nitrile.
Products from this series are destined to cooperate with liquids, air and neutral gasses. They are also good for pneumatic and under pressure installations in industrial applications.

Male connector
Producer number pipe external diameter Thread
BSP		 A B C ØD Ø E
PM010411E 4 1/8” 17 14 5.5 2.5 15
PM010412E 4 1/4" 16 17 8.0 2.5 18
PM010511E 5 1/8" 17 14 5.5 3.5 15
PM010512E 5 1/4" 16 17 8.0 3.5 18
PM010611E 6 1/8" 20 15 5.5 4.0 16
PM010612E 6 1/4" 16 17 8.0 5.0 18
PM010811E 8 1/8" 20 17 5.5 4.0 18
PM010812E 8 1/4" 16 17 8.0 6.0 18
PM010813E 8 3/8" 16 22 9.5 6.5 24
PM011012E 10 1/4" 23 20 8.0 7.0 22
PM011013E 10 3/8" 19 22 9.5 7.5 24
PM011014E 10 1/2" 18 27 12.5 7.5 30
PM011213E 12 3/8" 21 24 9.5 8.5 26
PM011214E 12 1/2" 22 27 12.5 8.5 30
PM011514E 15 1/2" 26 27 12.5 12.0 8.5 30
PM011516E 15 3/4" without washer
PM011814E 18 1/2" 46 30 12.5 12.7 36
PM012216E 22 3/4" 46 32 15.0 17.0 36

Male connector
producer number pipe external diameter Thread
BSP		 A B C ØD Ø E
PM010401E 4 1/8" 15 15 10 25 17
PM010402E 4 1/4" 14 17 11 25 18
PM010501E 5 1/8" 15 15 10 3.5 17
PM010502E 5 1/4" 14 17 11 3.5 18
PM010601E 6 1/8" 18 17 10 4.0 18
PM010602E 6 1/4" 14 17 11 5.0 18
PM010801E 8 1/8" 19 17 10 4.0 18
PM010802E 8 1/4" 14 17 11 6.0 18
PM010803E 8 3/8" 14 20 13 7.0 22
PM011002E 10 1/4" 21 20 11 7.0 22
PM011003E 10 3/8" 17 20 13 7.0 22
PM011004E 10 1/2" 15 22 16 7.5 24
PM011203E 12 3/8" 27 24 13 8.5 26
PM011204E 12 1/2 22 24 16 8.5 26
PM010622E* 6 1/4" na życzenie

Union tee
producer number external pipe diameter A B C ØD
PM0204E 4 35 24 18 2.5
PM0205E 5 35 24 18 3.5
PM0206E 6 40 27 20 5.0
PM0208E 8 42 30 21 6.5
PM0210E 10 50 35 25 7.5
PM0212E 12 65 44 32 8.5
PM0215E 15 73 50 37 12.0
PM0218E 18 89 61 44 16.0
PM0222E 22 98 67 49 19.2
PM0228E 28 121 85 60 23.0

Union elbow
producer number external pipe diameter A B C ØD
PM0304E 4 24 24,00 18 2.5
PM0305E 5 24 24,00 18 3.5
PM0306E 6 27 27,00 20 5.0
PM0308F 8 30 30,00 21 6.5
PM0310E 10 35 35,00 25 7.5
PM0312E 12 44 44,00 32 8.5
PM0315E 15 50 50,00 37 12.0
PM0318E 18 60 60,00 44 16.0
PM0322E 22 67 67,00 49 19.2
PM0328E 28 85 85,00 60 23.0
PM0228E 28 121 85 60 23.0

Union connector
producer number external pipe diameter A ØB ØC
PM0404E 4 32 14 2.5
PM0405E 5 32 14 3.5
PM0406E 6 35 15 5.0
PM0408E 8 42 18 6.5
PM0410E 10 42 20 7.5
PM0412E 12 51 23 8.5
PM0415E 15 62 28 12.0
PM0418E 18 65 32 16.0
PM0422E 22 71 36 19.2
PM0428E 28 91 50 23.0

Stem adapter
producer number pipe external diameter Thread
BSP		 A B C ØD Ø E
PM050411E 4 1/8" 20 14 5.5 2.5 15
PM050412E 4 1/4" 21 17 8.0 2.5 18
PM050511E 5 1/8" 20 14 5.5 3.5 15
PM050512E 5 1/4" 21 17 8.0 3.5 18
PM050611E 6 1/8" 22 15 5.5 4.0 16
PM050612E 6 1/4" 22 17 8.0 4.0 18
PM050811E 8 1/8" 23 17 5.5 4.0 18
PM050812E 8 1/4" 23 17 8.0 5.5 18
PM050813E 8 3/8" 23 22 9.5 5.5 24
PM051012E 10 1/4" 26 20 8.0 7.0 22
PM051013E 10 3/8" 26 22 9.5 7.0 24
PM051014E 10 1/2" 26 27 12.5 7.0 30
PM051213E 12 3/8" 31 24 9.5 8.5 26
PM051214E 12 1/2" 31 27 12.5 8.5 30
PM051513E 15 3/8" 43 22 11.5 9.5 24
PM051214E 12 1/2" 43 22 11.5 9.5 24
PM051814E 18 1/2" 50 27 14.5 12.7 30
PM052214E 22 1/2" 60 27 14.5 12.2 30
PM052216E 22 3/4" 52 37 17.0 17.0 40
MM052818N* 28 1" 65 36 14.0 23.0 41

Stem adapter
producer number pipe external diameter Thread
BSP		 A B C ØD Ø E
PM050401E 4 1/8" 19 15 10 17 2.5
PM050402E 4 1/4" 19 17 11 18 2.5
PM050501E 5 1/8" 19 15 10 17 3.5
PM050502E 5 1/4" 19 17 11 18 3.5
PM050601E 6 1/8" 20 17 10 18 4.0
PM050602E 6 1/4" 20 17 11 18 4.0
PM050801E 8 1/8" 21 17 10 18 4.0
PM050802E 8 1/4 21 17 11 18 5.5
PM050803E 8 3/8" 21 20 13 22 5.5
PM051002E 10 1/4" 24 20 11 22 7.0
PM051003E 10 3/8" 24 20 13 22 7.0
PM051004E 10 1 /2" 24 9? 16 24 7.0
PM051203E 12 3/8" 29 24 13 26 8.5
PM051204E 12 1/2" 29 24 16 26 8.5

Reducer
producer number pipe external diameter Thread
BSP		 A B C ØD Ø E
PM060504E 5 4 35 18 13 5 2.5
PM060604E 6 4 36 18 13 6 2.5
PM060605E 6 5 36 18 13 6 3.5
PM060804E 8 4 37 18 13 8 3.5
PM060805E 8 5 37 18 13 8 4.0
PM060806E 8 6 37 18 15 8 5.0
PM061006E 10 6 40 18 15 10 5.0
PM061008E 10 8 40 18 18 10 6.0
PM061208E 12 8 46 19 18 12 6.0
PM061210E 12 10 50 23 20 12 7.4
PM061510E 15 10 56 23 20 15 7.4
PM061512E 15 12 61 28 23 15 9.0
PM061815E 18 15 72 35 27 18 12.0
PM062215E 22 15 72 35 32 22 12.0
PM062218E 22 18 72 35 32 22 16.0
PM062815E 28 15 na życzenie
PM062822E 28 22 82 36 36 28 17.0

Plug
producer number external pipe diameter A ØB ØC
PM0804R 4 12.7 3.3 25.4
PM0805R 5 12.7 3.3 25.9
PM0806R 6 15.2 3.8 26.2
PM0808R 8 17.8 4.1 26.9
PM0810R 10 19.6 46 31.2
PM0812R 12 21.6 47 33.9
PM0815E 15 24.9 5.0 40.0
PM0818E 18 28.2 5.0 40.0
PM0822E 22 32 4.7 40.3
PM0828E 28 40 4.0 52.0

Swivel elbow
producer number pipe external diameter Thread A B C ØD Ø E ØF
PM090411E 4 1/8" 24 0 30.0 5.5 14 2.5 15.0
PM090412E 4 1/4" 24.0 31.0 8.0 17 2.5 18.0
PM090511E 5 1/8" 24.0 30.0 5.5 14 3.5 15.0
PM090512E 5 1/4" 24.0 31.0 8.0 17 3.5 18.0
PM090611E 6 1/8" 27.0 34.0 5.5 15 4.0 16.0
PM090612E 6 1/4" 27.0 35.0 8.0 17 4.0 18.0
PM090811E 8 1/8" 30.0 36.0 5.5 17 4.0 18.0
PM090812E 8 1/4" 30.0 37.0 8.0 17 5.5 18.0
PM090813E 8 3/8" 30.0 37.0 9.5 22 5.5 24.0
PM091012E 10 1/4" 35.0 42.0 8.0 20 7.0 22.0
PM091013E 10 3/8" 35.0 42.0 9.5 22 7.0 24.0
PM091014E 10 1/2" 35,00 42.0 12.5 27 7.0 30.0
PM091213E 12 3/8" 44.0 50.0 9.5 24 8.5 26.0
PM091214E 12 1/2" 44.0 50.0 12.5 27 8.5 30.0
PM091513E 15 3/8" 50.6 65.5 11.3 22 9.4 24.0
PM091514E 15 1/2" 50.6 65.5 14.5 27 10.0 29.8
PM091814E 18 1/2" 59.7 77.0 14.5 27 12.7 29.8
PM092214E 22 1/2" 66.0 82.0 14.5 27 12.15 29.8
PM092216E 22 3/4" 66.0 83.6 17.0 37 17.0 40.00

Swivel elbow
producer number pipe external diameter Thread
BSP		 A B C ØD Ø E ØF
PM090401E 4 1/8" 24,00 29 10 15 2.5 17
PM090402E 4 1/4" 24,00 29 11 17 2.5 18
PM090501E 5 1/8" 24,00 29 10 15 3.5 17
PM090502E 5 1/4" 24,00 29 11 17 3.5 18
PM090601E 6 1/8" 27,00 32 10 17 4.0 17
PM090602E 6 1/4" 27,00 32 11 17 4.0 18
PM090801E 8 1/8" 30,00 35 10 17 4.0 17
PM090802E 8 1/4" 30,00 35 11 17 5.5 18
PM090803E 8 3/8" 30,00 35 13 20 5.5 22
PM091002E 10 1/4" 35,00 40 11 20 7.0 18
PM091003E 10 3/8" 35,00 40 13 20 7.0 22
PM091004E 10 1/2" 35,00 40 16 22 7.0 26
PM091203E 12 3/8" 44,00 49 13 24 8.5 22
PM091204E 12 1/2" 44,00 49 16 24 8.5 26

Swivel branch
producer number pipe external diameter Thread
BSP		 A B C ØD Ø E ØF
PM100411E 4 1/8" 35,00 30 5.5 14 2.5 15
PM100412E 4 1/4" 35,00 31 8.0 17 2.5 18
PM100511E 5 1/8" 35,00 30 5.5 14 3.5 15
PM100512E 5 1/4" 35,00 31 8.0 17 3.5 18
PM100611E 6 1/8" 40,00 33 5.5 15 4.0 16
PM100612E 6 1/4" 40,00 34 8.0 17 4.0 18
PM100811E 8 1/8" 42,00 36 5.5 17 4.0 18
PM100812E 8 1/4" 42,00 37 8.0 17 5.5 18
PM100813E 8 3/8" 42,00 37 9.5 22 5.5 24
PM101012E 10 1/4" 50,00 42 8.0 20 7.0 22
PM101013E 10 3/8" 50,00 42 9.5 22 7.0 24
PM101014E 10 1/2 50,00 42 12.5 27 7.0 30
PM101213E 12 3/8" 65,00 50 9.5 24 8.5 26
PM101214E 12 1/2" 65,00 50 12.5 27 8.5 30

Swivel branch
producer number pipe external diameter Thread
BSP		 A B C ØD Ø E ØF
PM100401E 4 1/8" 35 29 10 15 2.5 17
PM100402E 4 1/4" 35 29 11 17 2.5 18
PM100501E 5 1/8" 35 29 10 15 3.5 17
PM100502E 5 1/4" 35 29 11 17 3.5 18
PM100601E 6 1/8" 40 32 10 17 4.0 18
PM100602E 6 1/4" 40 32 11 17 4.0 18
PM100801E 8 1/8" 42 35 10 17 4.0 18
PM100802E 8 1/4" 42 35 11 17 5.5 18
PM100803E 8 3/8" 42 35 13 20 5.5 22
PM101002E 10 1/4" 50 40 11 20 7.0 22
PM101003E 10 3/8" 50 40 13 20 7.0 22
PM101004E 10 1/2" 50 40 16 22 7.0 24
PM101203E 12 3/8" 65 49 13 24 8.5 26
PM101204E 12 1/2" 65 49 16 24 8.5 30

Swivel branch
producer number pipe external diameter Thread
BSP		 A B C ØD Ø E ØF
PM110411E 4 1/8" 42,00 24 5.5 14 2.5 15
PM110412E 4 1/4" 42,00 24 8.0 17 2.5 18
PM110511E 5 1/8" 42,00 24 5.5 14 3.5 15
PM110512E 5 1/4" 42,00 24 8.0 17 3.5 18
PM110611E 6 1/8" 46,00 27 5.5 15 4.0 16
PM110612E 6 1/4" 46,00 27 8.0 17 4.0 18
PM110811E 8 1/8" 49 00 30 5.5 17 4.0 18
PM110812E 8 1/4" 49,00 30 8.0 17 5.5 18
PM110813E 8 3/8" 49,00 30 9.5 22 5.5 24
PM111012E 10 1/4" 57,00 35 8.0 20 7.0 22
PM111013E 10 3/8" 57,00 35 9.5 22 7.0 24
PM111014E 10 1/2" 57,00 35 12.5 27 7.0 30
PM111213E 12 3/8" 71,00 44 9.5 24 8.5 26
PM111214E 12 1/2" 71,00 44 12.5 27 8.5 30

BSPT Thread - Male Run Tee
producer number pipe external diameter Thread
BSP		 A B C ØD Ø E ØF
PM110401E 4 1/8" 40 24 10 15 2.5 17
PM110402E 4 1/4 40 24 11 17 2.5 18
PM110501E 5 1/8" 40 24 10 15 35 17
PM110502E 5 1/4" 40 24 11 17 3.5 18
PM110601E 6 1/8" 44 27 10 17 4.0 18
PM110602E 6 1/4 44 27 11 17 4.0 18
PM110801E 8 1/8" 50 30 10 17 4.0 18
PM110802E 8 1/4" 50 30 11 17 5.5 18
PM110803E 8 3/8" 50 30 13 20 5.5 22
PM111002E 10 1/4" 55 35 11 20 7.0 22
PM111003E 10 3/8" 55 35 13 20 7.0 22
PM111004E 10 1/2" 55 35 16 22 7.0 24
PM111203E 12 3/8" 70 44 13 24 8.5 26
PM111204E 12 1/2" 70 44 16 24 8.5 26

Extension connector
producer number pipe external diameter Thread
BSP		 A B ØD ØE ØF
PM13M05E 5 4 34 18 13 4 2.5

Bulkhead connector
producer number pipe external diameter A B C ØD E F ØG ØH I J ØK
PM1204E 4 35 25 13.5 22.9 19 3/8" 2.5 16.5 20 15 17.0
PM1205E 5 35 25 13.5 22.9 19 3/8" 3.0 16.5 20 15 170
PM1206E 6 34 25 13.5 22.9 19 3/8" 5.0 16.5 20 15 17.0
PM1208E 8 40 29 16.0 27.4 22 1/2" 6.0 21.0 25 20 21 5
PM1210E 10 41 29 16.0 27.4 22 1/2" 7.5 21.0 25 20 21.5
PM1212E 12 52 38 22.5 38.1 28 3/4" 8.5 26.5 32 24 27.0

Reduction
producer number external pipe diameter internal pipe diameter A ØB ØC
PM200604E 6 4 35 15 2.5
PM200804E 8 4 42 18 2.5
PM200806E 8 6 42 18 50
PM201004E 10 4 42 20 2.5
PM201006E 10 6 42 20 5.0
PM201008E 10 8 42 20 6.5
PM201208E 12 8 53 23 6.4
PM201210E 12 10 54 24 7.6

Reducing elbow
producer number external pipe diameter internal pipe diameter A B C ØD
PM210604E 6 4 27 27 20 2.5
PM210804E 8 4 30 29 21 2.5
PM210806E 8 6 30 29 21 5.0
PM211004E 10 4 35 34 25 2.5
PM211006E 10 6 35 34 25 5.0
PM211008E 10 8 35 35 25 6.5
PM211208E 12 8 43 41 33 6.4
PM211210E 12 10 45 43 33 7.6

Plug in elbow
producer number external pipe diameter stub pipe diameter A B C ØD ØE ØF
PM220404E 4 4 22 13 9 17 4 2.5
PM220505E 5 5 22 13 9 17 5 3.5
PM220606E 6 6 25 15 11 18 6 4.0
PM220808E 8 8 27 18 13 19 8 5.5
PM221010E 10 10 33 20 15 24 10 7.0
PM221212E 12 12 39 23 18 28 12 8.5
PM221515E 15 15 51 27 19 34 15 10.5
PM221818E 18 18 53 31 25 32 18 16
PM222222E 22 22 59 35 25 36 22 18

Two way divier
producer number external pipe diameter A B C ØD ØE
PM2304E 4 37.0 28.5 15.0 13.0 2.5
RM2306E* 6 35.5 26.8 12.9 13.9 4.5
PM2308E 8 50.0 41.0 21.6 20 0 5.5
PM2310E* 10 46.0 39.5 19.6 19.0 6.6
RM2312E* 12 55.5 44.2 21.9 22.3 8.5

Tube to hose steam
producer number stub pipe diameter pipe arbor for internal pipe diameter ØA ØB ØC D E F ØG
PM250604E 6 4 6.0 6.1 13.0 42.0 18.0 20.8 2.8
PM250806E 8 6 8.0 6.9 13.0 43.1 19. 3 20.8 3. 5
PM251008E 10 8 10.0 10.0 17.8 50.0 22. 2 24.8 6. 7

Steam to steam adaptor
producer number ØA ØB C
NC478 15 9.5 77

Złączka wtykowa w kształcie trójnika
Nr producenta śr. zewn. rury śr. zewn. rury śr. zewn. rury A B C ØD
PM3018AE 18 18 15 87 56 40 12
PM3022AE 22 22 15 90 60 42 19.2

Złączka wtykowa z gwintem wewnetrzynym
Nr producenta śr. zewn. rury gwint A ØB ØC ØD E
PM450411E 4 1/8"BSP 28.0 13.0 15.4 2.4 14.0
PM450611E 6 1/8" BSP na życzenie
PM450612E 6 1/4" BSP 32.0 16.6 18.6 4.8 17.0
PM450812E 8 1/4" BSP 32.5 16.6 18.6 6.2 17.0
PM451015FE 10 5/8" BSP na życzenie
PM4508F4S 8 7/16"x20UNF 34.0 19.8 17.5 4.6 16.0
PM4508C5S 8 1/2-16" UNS 36.5 19.8 21.7 4.6 20.0

Końcówka rurowa
Nr producenta śr.zewn. rury
PM4612E 12 mm na życzenie
PM4615E 15 mm na życzenie
PM4622E 22 mm na życzenie

Złączka wkręcana kolankowa
Nr producenta śr. zewn. rury gwint NPTF
PM480621E 6 1/8" na życzenie
PM480622E 6 1/4" na życzenie
PM480623E 6 3/8" na życzenie

Reduktor klankowy(40°)
Nr producenta śr. zewn. rury śr.wewn. rury A B ØD ØC
NC657 12 8 48,8 33.3 22,9 16.0

Kolanko zwrotne
Nr producenta śr. zewn. rury śr.wewn. rury A B ØC
PMUB15E 15,0 13,0 54,5 48,0 26,0

Złączka nakręcana
Nr producenta śr. zewn. rury gwint
NC2380 6 mm 3/4"
NC2381 8 mm 3/4"
NC2382 10m 3/4

Złączka redukcyjna
producenta śr. zewn. rury gwint A B
NC688 3/4" 1/4" 21 35
Méně
Přečtěte si více
Komentáře (0)
