Výrobce: KIRA Leuchten

Ke-LED-EA 40 ..- P | 24V | LED zářivka

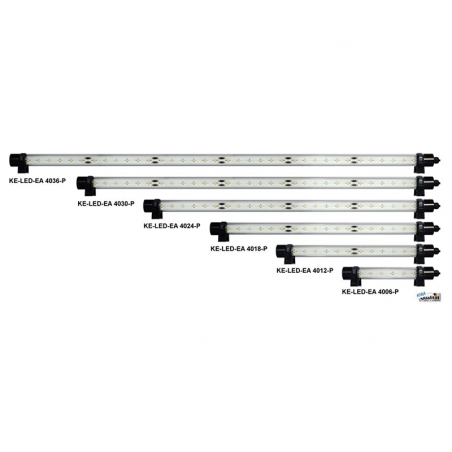

The modular design of the KE-LED-EA 40xx-P series gives you a consistent design for lighting applications where different mounting conditions are considered. The lamp is available with 6 / 12 / 18 / 24 / 30 or 36 POWER LEDs. This allows a luminaire length of at least 295mm up to 1370mm to be realized. Without an external ballast, it can be used as an industrial, machine and system luminaire.

Technical Data KE-LED-EA 4006-P / 4012-P / 4018-P / 4024-P / 4030-P / 4036-P
Illuminant POWER LED with 6, 12, 18, 24, 30 or 36 modules / 5000 Kelvin
Power 4006: 7 W | 4012: 8 W | 4018: 18 W | 4024: 18 W | 4030: 24 W | 4036
Luminous flux 4006: 600 Lm | 4012: 1200 Lm | 4018: 1800 Lm | 4024: 2400 Lm | 4030: 3000 Lm | 4036: 3600 Lm
Voltage 24V AC/DC
Protective tube polycarbonate, 40 mm Ø
Diffusor optional available (only for model 4006 / 4012 / 4018)
End caps aluminium, black anodized
Fixing clamps 2 fixing clamps
Cable 5 m H05RN-F 2 x 1,0 mm2 (other lengths on request)
Plug without
Protection (IP) IP65
Protection class III
Length 4006: 295 mm | 4012: 510 mm | 4018: 725 mm | 4024: 940 mm | 4030: 1155 mm | 4036: 1370 mm
Ambient temperature range -10°C - +40°C

Light color 5000k

Type - IP65 Quantity
POWER LED		 Voltage IP Plug Weight Art.-No.
KE-LED-EA 4006-P / 24 6 24 V AC / DC IP65 w/o 0,51 kg 131802
KE-LED-EA 4012-P / 24 12 24 V AC / DC IP65 w/o 0,56 kg 131803
KE-LED-EA 4018-P / 24 18 24 V AC / DC IP65 w/o 0,61 kg 131804
KE-LED-EA 4024-P / 24 24 24 V AC / DC IP65 w/o 0,66 kg 131805
KE-LED-EA 4030-P / 24 30 24 V AC / DC IP65 w/o 0,71 kg 131806
KE-LED-EA 4036-P / 24 36 24 V AC / DC IP65 w/o 0,76 kg 131807


Type Dimensions in mm
a b c d e f
KE-LED-EA 4006-P 295 30 235 20 43 40
KE-LED-EA 4012-P 510 30 450 20 43 40
KE-LED-EA 4018-P 725 30 665 20 43 40
KE-LED-EA 4024-P 940 30 880 20 43 40
KE-LED-EA 4030-P 1155 30 1095 20 43 40
KE-LED-EA 4036-P 1370 30 1310 20 42 40

Accesories

Type Description Art.-No.
BFK D40 Fixing clamp 290056
40 KM Fixation clamp with magnet 291600
STA 40 Metal fixture with fixing clamps BFK 291402
Diffuser Foil 06 Diffuser film, for homogeneous, glare-free light distribution, suitable for 4006 291691
Diffuser Foil 12/18 Diffuser film, for homogeneous, glare-free light distribution, suitable for 4012 /4018 291692
Diffuser Foil 24/30//36 Diffuser film, for homogeneous, glare-free light distribution, suitable for 4024 / 4030 / 4036 291693
SFO-LED-MOD 06/12 Protective foil for KE-LED-EA 4006/4012, to preserve the protective tube in case of high degree of contamination 292704
SFO-LED-MOD 18/24 Protective foil for KE-LED-EA 4018/4024, to preserve the protective tube in case of high degree of contamination 292705
SFO-LED-MOD 30/36 Protective foil for KE-LED-EA 4030/4036, to preserve the protective tube in case of high degree of contamination 292706
SELV Trafos see standard accessoires


Type Art-No. for tube- Dimensions in mm Number (f)
diameter a b c d e mounting holes
BFK D40 290056 40mm 67 25 20 40,4 58 1x


2 fixing clamps included in the scope of delivery
