Termoelektrické klimatizace s moduly Peltier

Air conditioners, thermoelectric modules Peltier

Heat pumps

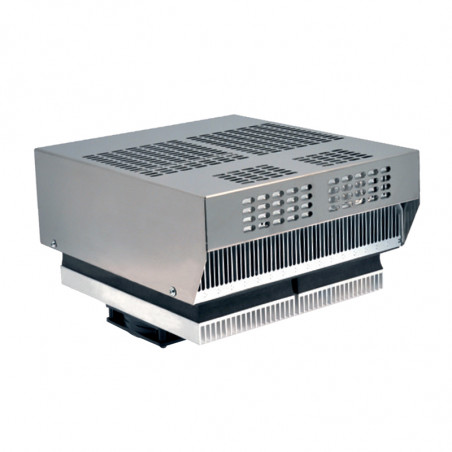

Standard and customised thermoelectric units for small enclosures or electronic equipment in telecommunications and industrial automation fields. These units operate according to the principles of the semiconductors technology (Peltier effect).



Thermoelectric cooling units d.c version

Typee Cooling Power
[W]		 Voltage
[Vdc]		 Rated Current
[A]		 Max. Current
[A]		 Operating
Temp. Range
[oC]		 Rated
Voltag Range [Vdc]		 Weight
[kg]		 Approvals

TCU501240IP55-7035

 50 12 5.0 5.8 -20 ~ +70 7-13 4 CE

TCU502440IP55-7035

 50 24 2.4 2.8 -20 ~ +70 17-27 4 CE

TCU1001240IP55-7035

 100 12 9.2 11.0 -20 ~ +70 7-13 6 CE

TCU1002440IP55-7035

 100 24 4.7 5.7 -20 ~ +70 17-27 6 CE

TCU1004840IP55-7035

 100 48 2.4 3.0 -20 ~ +70 34-54 6 CE

TCU2001240IP55-7035

 200 12 18.4 22.0 -20 ~ +70 7-13 12 CE

TCU2002440IP55-7035

 200 24 9.5 11.5 -20 ~ +70 17-27 12 CE

TCU2004840IP55-7035

 200 48 4.8 6.0 -20 ~ +70 34-54 12 CE

Thermoelectric cooling units a.c. version


Type Cooling Power
[W]		 Rated Voltage Range [Vdc] Input Power [W]  Max. Input
Power
[W]		 Operating Temp. Range
[oC]		 Weight
[kg]		 IP
Rating		 Approvals

TCU200AC40

 201 135-265  333 421 -20 ~ +50 14 20 CE

TCU200AC40-SIP

 201 88-264  245 306 -20 ~ +50 14 55 CE

Thermoelectric modules

Type Max. Curent
I max [A]		 Max. Voltage
V max
[Vd.c]		 Max. Cooling Power
[W]		 Max. Temp.
Differentail
ΔT max [oC]		 Max. Operating
Temp. [oC]		 Dimensions
W x L x H
[mm]

TM1-1274060-HXHP

 6.0 15.3 60.0 67.0 125 40x40x3.8
