Výrobce: Celesco

Link Distancer Convertors Series Sp

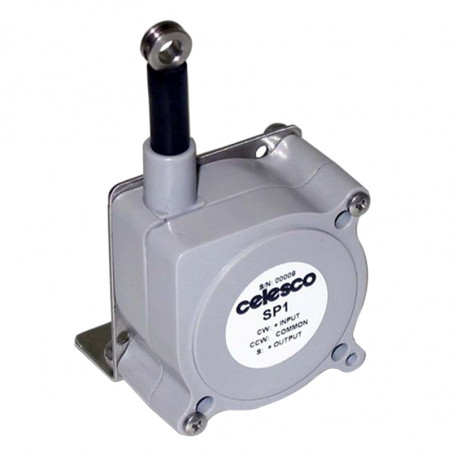

The Celesco SP1 String Pot is a compact, economical and durable device that utilizes a flexible cable, a spring-loaded spool, and a potentiometer to detect and measure linear position.
The SP1 is designed for tight spaces, high-cycle applications  and generously allows cable misalignment. With 4 different measurement ranges and handy mounting brackets, the SP1 is a perfect solution for many applications, from light industrial to OEM.

COMPLETE SPECIFICATIONS
- Full Stroke Range Options 0..12 cm, 0..31,75 cm, 0..63,5 cm, 0..127 cm
- Output Signal voltage divider (potentiometer)
- Accuracy ±0.25 to ±1.00% (see part no. above)
- Repeatability ± 0.05% full stroke
- Measuring Cable f = 0,5cm, nylon-coated stainless steel
- Enclosure Material: polycarbonate
- Sensor: plastic-hybrid precision potentiometer
- Weight: 95 g
- Input Resistance: 10 kΩ ±10%
- Power Rating, Watts 2W
- Recommended Maximum Input Voltage 30VAC/DC
- Enclosure IP50
- Operating Temperature -18...71°C

Catalogue number
  SP1-4 SP1-12 SP1-25 SP1-50
full stroke
range		 0...12cm 0...31,75cm 0...63,5cm 0...127cm
accuracy 1% 0,5% 0,25% 0,25%
cycle life 2.5 x 106 0.5 x 106 250 x 103 250 x 103

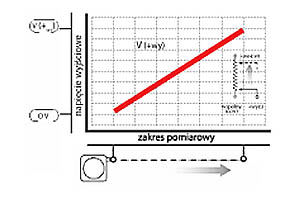

Output signal

Dimensions [inch/mm]
rysunek rysunek
