Výrobce: Sammode

Hutton 100.

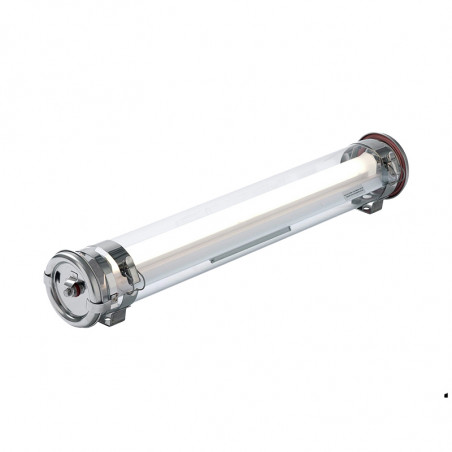

Luminaire HUTTON 100

Characteristic

LED technology
Low in maintenance Instantaneous full light output on ignition over the entire temperature range of use Designed for repeated switching on and off

Tubular
Increased mechanical resistance. Easy to clean. Limited dirt accumulation. Orientation 360o.

Impervious
(IP68/IP69K) Absolute imperviousness No internal dust accumulation Maximum light output Adapted for pressure cleaning

Robust
Mechanical assembly insensitive to external mechanical and/or chemical aggressio

Basic parameters
Electrical class: I
Fire resistance: Coex. polycarbonate/PMMA (650oC), Borosilicate glass (non-flammable)
Protecion: IP 68/69K
Shock resistance: IK10 (polycarbonate), IK07 (Borosilicat glass).
Operationg temperature: -20oC do +40oC
II 3G Ex nA IIC T4 Gc, II 2D Ex tb IIIC T80oC Db



Dimensions
Korpus o średnicy 100 mm dostępny w wersji z VERSIONS WITH COEXTRUDED POLYCARBONATE / PMMA HOUSINGu or szkła borokrzemowego.
Zatyczki na końcach ze stali nierdzewnej 304L (dostępna także 316L).
Uszczelki: odlewane EPDM.
Dławnica kablowa na Cable.
Możliwość dostawy wersji przelotowej (2 dławnice) or końcowej (1 dławnica + zaślepka).

Power Fliux
(Im)		 Designation Code Optics Colour temperatue
[K]		 L
[mm]		 Ciężar
[kg]
VERSIONS WITH BOROSILICATE GLASS HOUSING
    Equivalent to 1x36W T8
24W 2775

HUT100 13H830 PY 113

1983 0050

 3000 1007 4,9
24W 2775

HUT100 13H840 PY 113

1983 0060

 4000 1007 4,9
    Equivalent to 1x58W T8
40W 4625

HUT100 15H830 PY 113

1983 0070

 3000 1607 7,6
40W 4625

HUT100 15H840 PY 113

1983 0080

 4000 1607 7,6
VERSIONS WITH COEXTRUDED POLYCARBONATE / PMMA HOUSING
    Equivalent to 1x36W T8
24W 2775

HUT100 13H830 POME 113

1983 0090

 3000 1007 3,0
24W 2775

HUT100 13H840 POME 113

1983 0100

 4000 1007 3,0
    Equivalent au 1x58W T8
40W 4625

HUT100 15H830 POME 113

19830110

 3000 1607 4,3
40W 4625

HUT100 15H840 POME 113

1983 0120

 4000 1607 4,3

Options
Designation Code
Cable entries
1 or 2 cable glands in black polyamide
Cable Ø: 8-13 mm 113/213
Cable Ø: 10-15 mm 116/216
1 cable gland in black polyamide and 1 blind plug Hole Ø20 mm
Cable Ø: 8-13 mm 113-1B
Cable Ø: 10-15 mm 116-1B
1 or 2 cable glands in nickel-coated brass
Cable Ø : 5-14 mm 113LN/213LN
Designation Code
Finishings
End caps and fixing straps in 316L stainless steel MR
Fixings
Reinforced bolt-fitted fixing straps with HSHC screw* BRV
Dodatkowe elementy
Protective covers
Fixing for coluns
