Silicoul® Style 3664 - 15 kV UL a Cul -60 ° C certifikát na +180 ° C
  • Silicoul® Style 3664 - 15 kV UL a Cul -60 ° C certifikát na +180 ° C

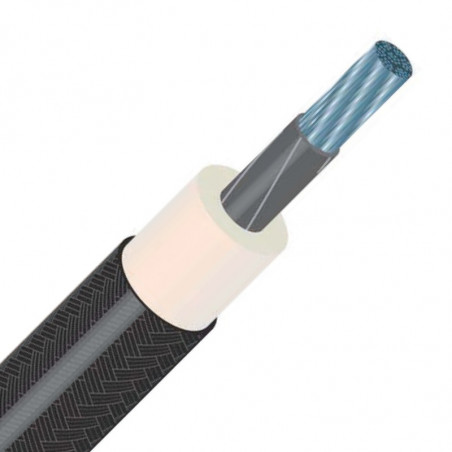

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: OMERIN

Silicoul® Style 3664 - 15 kV UL a Cul -60 ° C certifikát na +180 ° C

General characteristics

  • continuous operating temperatures: -60 °C to +180 °C
  • good resistance to thermal shock and UV
  • excellent mechanical strength
  • rated voltage: 15 kV
  • test voltage: 30 kV

Standard products

  • standard insulation colour: white
  • standard reinforcing braid colour: black

Approvals – standards

  • UL approval (180 °C / 15000 V) as per standard UL 758 – File no. E101965
  • cUL approval (CSA 200 °C / 15000 V) as per GTO-15 and standard C22.2 N° 127 – File no. E211350
  • compliance with the tests described as per standard IEC 60092-350/354/360, IEC 60331-11/21, IEC 60332-1-1/2, IEC 60332-3-22 category A and IEC 60754-2
  • horizontal flame as per UL approval

Applications

  • cabling for rotating machines: motors, alternators, generators
  • cabling for static machines: transformers, inductors, inverters, choppers
  • shipbuilding and railway construction
  • power cabinets

Options

  • flexible bare copper core class 5 as per IEC 60228: contact us
  • flexible or extra-flexible silver-plated or nickel-plated copper core - class 5 or 6 as per IEC 60228: contact us
  • without reinforcing braid: contact us
  • varnished synthetic fibre reinforcing braid: contact us
  • very high temperature fibre reinforcing braid: contact us
  • multi-conductor cable made up of an assembly of single conductor cables SILICOUL® Style 3664 15 KV: contact us
  • other colours: contact us
  • other nominal metric or American cross-sections: contact us
  • other options and/or combinations of the options outlined above: contact us
