Micro-Flex 3-fáze

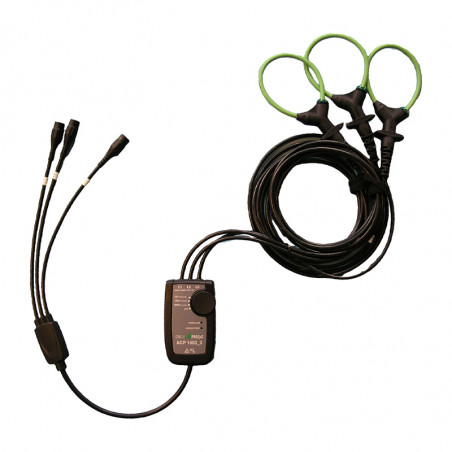

The new Micro~flexACP 1000_3 is a flexible AC current clamp utilising the Rogowski principle. It can be used to measure currents up to 1000 Amps from very low frequencies to 100kHz. The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas and with large conductors.



Electrical Characteristics

Current Ranges (selectable via rotary switch) : 10 / 100 / 1000A ACRMS
Output Sensitivity (AC coupled) : 100mV / 10mV / 1mV/A
Accuracy (45-65 Hz) : ± 1% of reading ± 0.1A (10A/100A)
  : ± 1% of reading ± 1A (1000)
Load Impedance 100kΩ minimum
Linearity (10% to 100% of range) : ± 0.2% of reading
Noise : 80mA (10A / 100A/ 1000A ranges)
Bandwidth (-2dB) : 20Hz to 100kHz]
Phase Error (45 – 65Hz) : ± <1º
Temperature Coefficient : ± 0.15% of reading / °C
Position Sensitivity : ± 2.5% of range
Power Supply

: 2 x AA MN 1500 LR6 Alkaline
1000 hours, low batt. indicated by orange LED
external power supply (3V / 100mA)
Overload Indication : Red LED indicates the range overload
Working Voltage (see Safety Standards section) : 1000V AC RMS or DC (Probe and Integrator)

General Characteristics

Probe Material : Alcryn 2070 NC, Arnite T06-200SNF
  : Megol DP1191/65
Enclosure Material : ARNITE T06-200SNF, UL94 V0
Probe Conductor Diameter : 50 / 70 / 100 (mm)
Probe Cable Diameter. : 6mm
Cable Length (Probe to Integrator box) : 2 m
Output Lead : 0.5m coax terminated with safety male BNC
Operating Temperature Range : -20 do +65°C
Storage Temperature Range : -40 do +75°C
Operating Humidity : 15% do 85% (noncondensing)
Degree of protection : IP50 Probe, IP40 Integrator module
Colour : RAL 120 70 75 lemon green
Weight : 280g

ROHS and WEEE Compliant

Safety Standards

EN 61010-1:2001
EN 61010-031:2002
EN 61010-2-032:2002

1000 V RMS, Category III, 600 V RMS , Category IV, Pollution Degree 2 (Probe and Integrator)
Use of the probe on uninsulated conductors is limited to 1000 V AC RMS or DC and frequencies below 1 kHz.

Power Supply Connection
Pin Function
Center - Terminal
Outside + Terminal
PART NUMBERS The loop diameter of the probe (S) [mm]

ACP 1003_3/2

 50

ACP 1003_3/3

 70

ACP 1003_3/4

 100
Dimensions [mm]
