Výrobce: Sisel

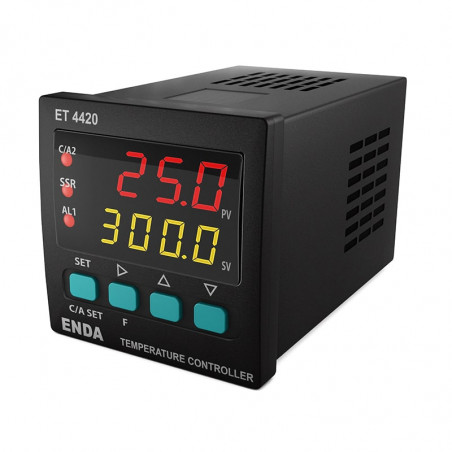

Teplotní regulátory

Dimensions:
  • ET4420: 48x48x87mm,
  • ET7420: 72x72x97mm,
  • ET8420: 48x96x87mm,
  • ET9420: 96x96x50mm

* Communication vai RS-485 ModBus protocol (Optional).
* Relay output can be programmable as second alarm or control output.
* AL1 relay output for first alarm out.
* Input offset feature.
* In the case of sensor failure relay state can be
selected.
periodical running or
* Parameter access protection on 3 levels.
* Programming by using keypad or Modbus.
* CE marked according to European Norms.


Technical data:
- Accuracy

±0,2% (of full scale) 1 digit
- Scale

Depending on regulator

Pt100
-200... 600°C

Pt100
-99,9...300°C

Thermocouple J
0...600°C

Thermocouple K
0...1200°C

Thermocouple T
0...400°C

Thermocouple S
0...1600°C

Thermocouple R
0...1600°C
- Output

relay, 2A, 250V AC logic 0/24 DC, 20mA
- Alarm output

2A, 250V AC, selection NO/NC
- Display

4 red digits LED, measured value 4yellow digits LED, set value
- Keyboard

microswitch
- Supply voltage

230V AC +10%, -20%, 50/60HZ, 9-30VDC/7-24±10% SMPS, 24V AC ±10%, 50/60Hz (chosen during order)
- Operation temperature

0...50°C
- Dimensions

ET4420 48x48x87mm
ET7420 72x72x97mm
ET8420 48x96x87mm
ET9420 96x96x50mm
- wiring

Wiring 2.5mm² screw-terminal connections
- Weight


ET4420 250g (after packing)
ET7420 395g (after packing)
ET8420 395g (after packing)
ET9420 410g (after packing)


Dimensions ET4420 i ET7420






Wiring diagram



ALARM1 AND ALARM2 OUTPUT TYPES

Independent Alarm
A1.tP. indE =

(ASV min =beginning of scale
ASV max =end of scale))
SV=Set point of CONT output
Deviation Alarm
A1.tP. DE.

ASV min. =-300, ASV max. = +300)
(If , inP Pt..0 = ASV min. = -30.0,ASV max. = +30.0)
ASV = ASV = Set point of alarm output
Band Alarm
= A1.tP. bAnd

SV =Set point of CONT output
ASV = Set point of AL1 output
(ASV min. = 0, ASV max. = +300)
(lfinP = Pt..0,ASV min.=0.0,ASV max.=+30.0)
Band Alarm With Inhibition

SV =Set point of CONT output
ASV = Set point of AL1 output (ASV min. = 0, ASV max. = 300 ))

MODIFICATION OF CONTROL AND ALARM SET POINTS
First, press and holdj key, alarm setpoint value appears on the display. Then, the value is adjusted by usingAlarm1 and Alarm2 setpoint values can be adjusted in sequence when per press

NOTE: The maximum of is the value of parameter and the minimum of it is the value of parameter.
If independent alarm is selected, A1.SE. and values can be adjusted between the limits of the full scale.
If deviation alarm is selected, A1.SE. and A2.SE. values can be adjusted between - and + .
If band alarm is selected, A1.SE. and A2.SE. values can be adjusted between 0 and +300.

Marking


Order Code:
1 - Dimension
4420 .....48x48x87mm
7420 .....72x72x97mm
8420 .....48x96x87mm
9420 .....96x96x50mm
2 - Supply Voltage
230VAC...230V AC
24VAC.....24V AC
SM...........9-30V DC / 7-24V AC
3 - Modbus Option
RS........RS-485 Modbus communication
None....Don’t support RS-485 Modbus communication

TECHNICAL SPECIFICATIONS
Input type Temperature range
J (Fe-CuNi)
K (NiCr-Ni)
T (Cu-CuNi)
S (Pt10Rh-Pt)
R (Pt13Rh-Pt)
Pt 100
Pt 100		 EN 60584
EN 60584
EN 60584
EN 60584
EN 60584
EN 60751
EN 60751		 0... 600°C
0...1200°C
0...  400°C 0...1600°C 0...1600°C -200...600°C -99.9...300.0°C		 +32... +1112°F +32... +2192°F +32...   +752°F +32... +2912°F +32... +2912°F -328... +1112°F -99.9...+543.0°F
