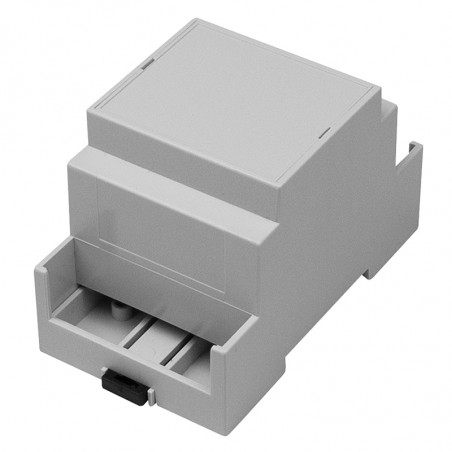

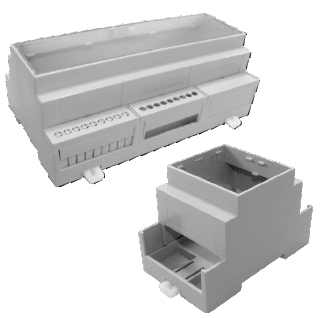

DIN modulární CNMB Series Bydlení

Modular casing s for DIN bus - CNMB
parameters:
- Easy assemble
- Casing matches for DIN 35 mm
- Free choose of terminals
- IP20
- Possible to assemble up to 3 PCB  horizontally and 2/4 vertically. .
- Covers are grey, transparent, red
- grey material, PC UL94-VO
- DIN adapter

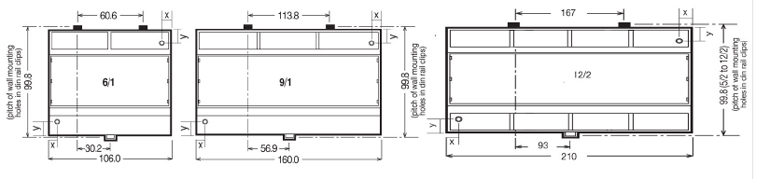

Model Length Horizontal PCB dimensions
[mm]		 Vertical PCB dimensions
[mm]		 PCB assembly holes
[mm]
[mm] A B C D E X Y
CNMB/1- 17,5 86,5x14 57x14 41,8x14 34x59,6 40x14,8 6,2 18,3
CNMB/2- 36 86,5x33 57x32 42x32 34x59,6 40x33 6,2 18,3
CNMB/3- 53 86,5x50 57x49 42x49 34x59,6 40x50 8,8 18,3
CNMB/4- 71 86,5x68 57x67 42x67 34x59,6 40x68 8,8 18,3
CNMB/5- 88 86,5x84 57x83 42x83 34x59,6 40x84 8,8 18,3
CNMB/6- 106 86,5x103 57x102 42x102 34x59,6 40x103 8,9 18,3
CNMB/9- 159 86,5x156 57x155,5 42x155 34x59,6 40x155 8,9 18,3
CNMB/12- 212 86,5x208 57x207 57x207 34x59,6 40x208 8,9 18,3

CAUTION:
Casing consists of basis, cover and assembly element.Obudowa składa się z podstawy, góry oraz elementu
EXAMPLE:
CNMB/-/2 = place for terminals on both sides
CNMB/-/1 =place for terminals on one side

Options
- other colours: black, green and blue.
- EMC  protection


Versions

ST/ closed
V/ with ventilation holes
W/ lengthen walls
Vertical PCB assembly
horizontal PCB assembly

Casing with two places for terminals
Casing with one place for terminal
Termianls


Closed version
Model Version A
[mm]		 D
[mm]		 E
[mm]

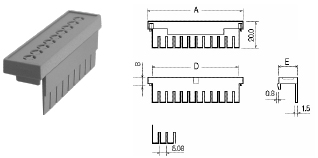

CNMB/1/TGS closed 17,5 15 14,3
CNMB/2/TGS closed 35,5 29,9 13,8
CNMB/3/TGS closed 52,8 45,5 13,8
CNMB/4/TGS closed 70,6 59,9 13,8
CNMB/5/TGS closed 87,6 79,5 13,8
CNMB/ /TGS

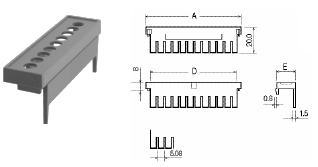

perforated version raster 5,08 mm
Model Version poles A
[mm]		 D
[mm]		 E
[mm]
CNMB/1/TG508P perforated 3 17,5 15 14,3
CNMB/2/TG508P perforated 6 35,5 29,9 13,8
CNMB/3/TG508P perforated 9 52,8 45,5 13,8
CNMB/4/TG508P perforated 12 70,6 59,9 13,8
CNMB/5/TG508P perforated 15 87,6 79,5 13,8
CNMB/ /TG508P

Drilled version raster 5,08 mm
Model Version poles A
mm]		 D
[mm]		 E
[mm]
CNMB/1/TG508 Drilled 3 17,5 15 14,3
CNMB/2/TG508 Drilled 6 35,5 29,9 13,8
CNMB/3/TG508 Drilled 9 52,8 45,5 13,8
CNMB/4/TG508 Drilled 12 70,6 59,9 13,8
CNMB/5/TG508 Drilled 15 87,6 79,5 13,8
CNMB/ /TG508


Version Drilled raster 7,5 mm
Model Version Poles A
mm]		 D
[mm]		 E
[mm]
CNMB/1/TG508 Drilled 3 17,5 15 14,3
CNMB/2/TG508 Drilled 6 35,5 29,9 13,8
CNMB/3/TG508 Drilled 9 52,8 45,5 13,8
CNMB/4/TG508 Drilled 12 70,6 59,9 13,8
CNMB/5/TG508 Drilled 15 87,6 79,5 13,8
CNMB/ /TG508




Version Drilled raster 10,16 mm
Model Poles A
[mm]		 D
[mm]		 E [mm] Version
CNMB/1/TG100 Drilled 3 17,5 15 14,3
CNMB/2/TG100 Drilled 6 35,5 29,9 13,8
CNMB/3/TG100 Drilled 9 52,8 45,5 13,8
CNMB/4/TG100 Drilled 12 70,6 59,9 13,8
CNMB/5/TG100 Drilled 15 87,6 79,5 13,8
CNMB/ /TG100


Extension module

Features:
- height 16 mm
- extra slot for PCB
Model width
[mm]
CNMB/2/E 34,7
CNMB/3/E 52
CNMB/4/E 70
CNMB/5/E 86,5
CNMB/6/E 104,5
CNMB/9/E 157,7


Flat version
Oval version
Model version
CNMB/1/PR Transparent red płaska
CNMB/2/PR Transparent red płaska
CNMB/3/PR Transparent red płaska
CNMB/4/PR Transparent red płaska
CNMB/5/PR Transparent red płaska
CNMB/6/PR Transparent red płaska
CNMB/9/PR Transparent red płaska
CNMB/12/PR Transparent red płaska
CNMB/1/PS Transparent mat płaska
CNMB/2/PS Transparent mat płaska
CNMB/3/PS Transparent mat płaska
CNMB/4/PS Transparent mat płaska
CNMB/5/PS Transparent mat płaska
CNMB/6/PS Transparent mat płaska
CNMB/9PS Transparent mat płaska
CNMB/12/PS Transparent mat płaska
CNMB/1/PC Transparent clean płaska
CNMB/2/PC Transparent clean płaska
CNMB/3/PC Transparent clean płaska
CNMB/4/PC Transparent clean płaska
CNMB/5/PC Transparent clean płaska
CNMB/6/PC Transparent clean płaska
CNMB/9/PC Transparent clean płaska
CNMB/12/PC Transparent clean płaska
CNMB/1/PG Płaska grey
CNMB/2/PG Płaska grey
CNMB/3/PG Płaska grey
CNMB/4/PG Płaska grey
CNMB/5/PG Płaska grey
CNMB/6/PG Płaska grey
CNMB/9/PG Płaska grey
CNMB/12/PG Płaska grey
Model version
CNMB/1/PRC Transparent red oval
CNMB/2/PRC Transparent red oval
CNMB/3/PRC Transparent red oval
CNMB/4/PRC Transparent red oval
CNMB/5/PRC Transparent red oval
CNMB/6/PRC Transparent red oval
CNMB/9/PRC Transparent red oval
CNMB/1/PSC Transparent clean oval
CNMB/2/PSC Transparent clean oval
CNMB/3/PSC Transparent clean oval
CNMB/4/PSC Transparent clean oval
CNMB/5/PSC Transparent clean oval
CNMB/6/PSC Transparent clean oval
CNMB/9/PSC Transparent clean oval
CNMB/1/PGC oval grey
CNMB/2/PGC oval grey
CNMB/3/PGC oval grey
CNMB/4/PGC oval grey
CNMB/5/PGC oval grey
CNMB/6/PGC oval grey
CNMB/9/PGC oval grey

Version oval with hinges


Model Version
CNMB/2/HPCC Transparent clean oval with hinges
CNMB/3/HPCC Transparent clean oval with hinges
CNMB/4/HPCC Transparent clean oval with hinges
CNMB/5/HPCC Transparent clean oval with hinges
CNMB/6/HPCC Transparent clean oval with hinges
CNMB/9/HPCC Transparent clean oval with hinges
CNMB/2/HPRC Transparent red oval with hinges
CNMB/3/HPRC Transparent red oval with hinges
CNMB/4/HPRC Transparent red oval with hinges
CNMB/5/HPRC Transparent red oval with hinges
CNMB/6/HPRC Transparent red oval with hinges
CNMB/9/HPRC Transparent red oval with hinges
CNMB/2/HPGC oval grey with hinges
CNMB/3/HPGC oval grey with hinges
CNMB/4/HPGC oval grey with hinges
CNMB/5/HPGC oval grey with hinges
CNMB/6/HPGC oval grey with hinges
CNMB/9/HPGC oval grey with hinges



Adnotacja: Możliwość zakupu oddzielnych części do konfiguracji obudowy (moduł powiększający, lite osłony, pokrywy skrzynki modułu, osłony końcówek etc.)
