Výrobce: Honeywell

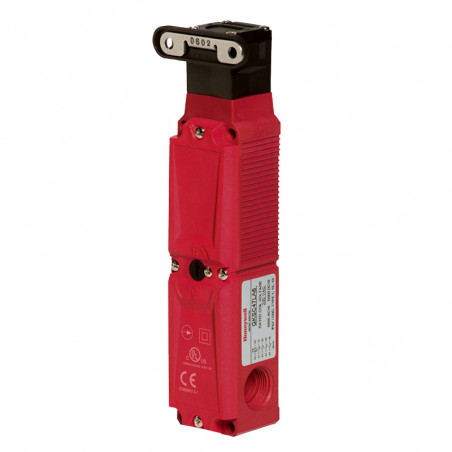

GKS Series - Multi-Emmar bezpečnostní spínače s klávesovým zámkem

The introduction of the GKS product marks a significant new product class for Honeywell. Honeywell’s switching expertise has been applied to a cost-effective, trapped key safety interlock switch. This product allows OEMs to hold a door or gate closed while a hazard still exists. This is particularly important where there is moment
um in the machine. In other words, when the machine is signaled to stop, the momentum in the machine can mean that parts of the machine are still moving and pose an injury risk if the access gate or door is not held closed. Global approvals and standards are important to Honeywell’s customers; therefor e, the GKS product conform to
the requirements of IEC60947-5-1 and carries cULus, CE and CCC approvals

FEATURES:
• Global approvals (CE, cULus, CE, and CCC)
• Glass-filled polyester body
• Power-to-lock and power-to-unlock schemes for key trap
• Flexible switching arrangement
• 24 Vdc, 110 Vac, and 230 Vac coil voltages
• Over-ride mechanism in cover
• Head may be rotated into 4 different positions
• Three conduit openings (knock-out style)
• Switch position provides status .

Benefits
• Product may be applied to most applications worldwide
• Tough, cost-effective, double-insulated enclosure
• Choice of key trapping methodology
• Four contacts that can be arranged in any configuration
• Multiple voltages provide for every geography
• Has a method to open door (in case of power loss, etc.)
• One part number may be used for multiple applications
• Flexible wiring options
• Can diagnose status of gate/door (gate/door closed and locked, gate/door closed and unlocked, gate/door open)

Caution
There will be minimum volume requirements for unreleased
options.

POTENTIAL APPLICATIONS
• Woodworking machinery
• Printing/paper finishing equipment
• Plastic molding equipment
• Packaging machinery
• Bailing
• Pumping equipment
• Semiconductor manufacturing equipment
• Packaging wrapping
• Specialty equipment
• Machine tool
• Robot cell


SPECIFICATIONS
Designation and
Utilization Category		 Rated Operational Current Ie (A) at Rated Operational Voltage Ue (V)
    120 V~ 125 V= 240 V~ / 250 V=
AC15 B300 3 A - 1,5 A
DC13 Q300 - 0,55 A 0,27 A



Rated thermal current (Ith)
5A
Sealing
IP67; NEMA 1, 4, 12, 13
Rated impulse withstand (Uimp)
2500 V
Pollution degree
3 (macro-environment, installation environment)
Rated insulation voltage (Ui)
600 V
Operating temperature range
-25 °C do 50 °C [-13 °F do 122 °F]
Storage temperature range
-40 °C do 85 °C [-40 °F do 185 °F]
Short-circuit protective device (type/maximum
rating)
Class J fuse (5 A/600 Vac)
Expected mechanical life
1 000 000 cycles
Conditional short-circuit current
1000 A
Solenoid operating voltage and power

24V~: +10%, -15%, 4 W
110 V~: +10%, -15%, 8 W
 230 V~: +10%, -15%, 9 W
24V~: +10%, -20%, 7 W

Complies with:

Low Voltage Directive 73/23/EEC, as amended by directive 93/68/EEC.Machinery Directive 98/37/EEC only as the directives relate to the components being used in a safety function.

IEC/EN60947-5-1



PART NUMBER TREE

GKS X XX X X X X
Series Conduit Contacts Head orientation Locking principal solenoid voltage Additional functions
Door interlock safety limit switch, solenoid
A - NPT 1/2" C - M20x1,5
21 - 2NC/1NO/1NO
22 - 2NC/1NO/1NC
46 - 3NC/1NO
47 -4NC
L - front
N - back
P - left
M - right
A - Power to unlock
S - Power to lock
2 - 24V~/=
5 -110V~
6 - 230V~
L - LED
NOTE:
The part number tree is provided to demons trate the potential combinations of components. Actual availability of individual product combinations will depend on the popularity of that type. Please check with your local distributor or Honeywell representative for the available types in your region

LED OPTION

The built-in LED is suitable for direct installation in the M20 x1.5/0.5 in NPT thread, one of the three cable entries in the
GKS safety switch. The built-in LED can indicate to the user whether the solenoid is unlocked/locked or whether the door is open/closed. The switching element can be wired individually.
LED color
Red
Connection
2 connection cables
Screw-in thread
M20 x 1,5 / ½”NPT
Operating voltage/current
consumption
24V= /45mA
115V~/15mA
230V~/15mA
Degree of protection
IP67



Multi-Entry Trapped Key-Operated Safety Interlock Switch

MOUNTING DIMENSIONS (SWITCH AND OPTIONAL LED)



SWITCH ORDER GUIDE (ACTIVE LISTINGS)
Type Description
GKSA46LA2
0.5 in conduit, 3NC/1NO, head to front, power to unlock, 24 Vdc solenoid
GKSA46LA5
0.5 in conduit, 3NC/1NO, head to front, power to unlock, 110 Vac solenoid
GKSC46I_A2
20 mm conduit, 3NC/1NO, head to front, power to unlock, 24 Vdc solenoid
GKSC46LA6
20 mm conduit, 3NC/1NO, head to front, power to unlock, 230 Vac solenoid



Type Description Min. Actuating Radius
GKZS6 Straight key min. R 160 [6,30]
GKZS7 90o key min. R 160 [6,30]
GKZS8 Left-right adjustable key min. R 32 [1,26]
GKZS4 Up-down adjustable key min. R 45 [1,77]
GKZS9 Multi directional key moveable max 18 degrees
GKZSF Funnel key min. R 160 [6,30]

CIRCUIT AND TRAVEL DIAGRAMS
Circuit drawing Inserted [&] Locked Inserted [&] Unlocked Removed [&] Unlocked
GKS..21..
GKS..22..
GKS..46..
GKS..47..

NOTE:

This ‘truth table’ shows the switch status in various conditions. In each column, there is a change in switch contact
position from the previous column. It is possible to determine the status of the switch by examining the combination against the table. This can be essential for operational reasons. For instance, the machine should not be started until the key is not only in the head, but is also trapped.

The first column depicts the key inserted and the key trapped in that position – this would be the typical run position for the machine – all doors closed. The second column illustrates the key inserted, but not trapped – this would be the safe-to-open the door position (as determined by the application’s safety scheme). The third column shows the key extracted or door-open position
KEY DIMENSIONS  [mm/inch]
GKZS6
GKZS7
GKZS8
GKZS4
GKZS9
GKZSF
