Pokročilý analyzátor třífázových parametrů QBO 96H

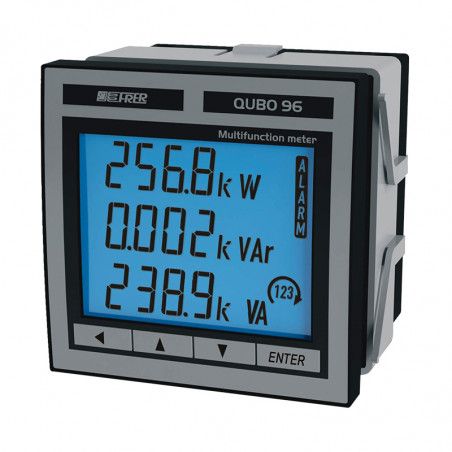

Multifunction Network Analyzer QUBO 96H

Multifunction network analyzer, suitable for three-phase three or four wires systems unbalanced load, even with distorted waveforms. It displays the main electrical measurements of an electrical network, including active and reactive energy counting. The 4 front push-buttons allow immediate display of the relevant measurements concerned without scrolling all display pages. Thank to the display digits size and to five backlight setting the meter is easy readable even to at large distances and with all light conditions. The QUBO 96H version performs also “advanced” measurements, which allow a very efficient monitoring and provide additional information about the system operating conditions, also by means of different communication protocols.



Rated data

Display Backlit LCD
Digits height 13.5mm
Max. indication 4 digits
Decimal point position Autmatic
Adjustable backlight 5 levels
Readings update <0.5s
Measuring type True RMS
Basic accuracy ±0.5%
Rated voltage 100, 400V
Rated current 1, 5A
Input range 10-120% UN, 5-120% IN
Frequency 45…65Hz
VT ratio (max. primary) 1MV
CT ratio (max. primary) 15kA
Continuous overload 2 x IN, 1.2 x UN
Short-term overload 20 x IN, 2 x UN (300msec.)
Current circuits consumption <0.5VA
Voltage circuits consumption <0.5VA
Supply voltage 230V (45…65Hz), 6VA
Operating temperature 0…23…50°C
Storage temperature -30…70°C
Housing material UL 94-V0
Protection for housing IP50
Protection for terminals IP20
Galvanic insulation In./out.
Installation category III, 300V, P.D. 2

Dimensions

Zaawansowany analizator parametrów sieci trójfazowej QUBO 96H - wymiary

Code

QUBO 96H Q96P3H005 - CQ - -
Communication RS485 Modbus M
Modbus TCP + WebServer +  internal memory E
Modbus TCP + WebServer + Gateway G
IEC61850 I
Profibus DP V0 P
Johnson Controls N2 open J
Aux. power supply 220-240V AC 2
20-60V AC/DC L
80-260V AC/DC H
Option None -
2 outputs alarm/pulses U

Measured value

  • Phase voltages and currents
  • Line voltages
  • Voltages and currents displacement
  • Neutral current
  • Line active, reactive and apparent power
  • Total active, reactive and apparent power
  • Line and total power factor
  • Line and total cosϕ
  • Frequency
  • Active and reactive energy
  • Bidirectional active and reactive energy
  • Partial active energy
  • Thermal current
  • Maximum thermal current
  • Average active and reactive power
  • Maximum demand
  • Switchboard temperature
  • THD (Up to 32th)
  • Hours run
  • Phase sequences

Additional technical data

Energy counting
Number of digits 10
Maximum counting 2x109
Accuracy class 1 (kWh), 2 (kvarh)
Bidrirectionality Yes
Alarm outputs
Activation delay setting Prog. 0…999s
Programmability Varibal, value, direction
Pulse output
Programmability Pulse value
Pulse duration Prog 30…1000ms
Modbus RTU
Interface RS485
Speed (bps) 9600/19200/38400/57600
Communication parameters Parity [&] stop prog.
Addressing range 1…247
ModBus TCP/Webserver
Ethernet interface IEEE 802.3 (u) 10 Base T/100 Base TX
Wiring RJ45
Speed 10/100 Mbit/s
Duplex Half/full
IEC61850
Ethernet interface IEEE 802.3 (u) 10 Base T/100 Base TX
Wiring RJ45
Speed 10/100 Mbit/s
Duplex Half/full
ProfiBus DP 0V
Network NRZ asynchronous
Buad rate 9.6kbit/s…12Mbit/s
Addressing range 1…99 prog.
Complies to EN 50170
Johnson Controls N2 OPEN
Inteface RS485
Speed (bps) 9600
Parity Nie
Addressing range 1…247 prog.

Wiring diagrams

Three-phase, three wires system

Zaawansowany analizator parametrów sieci trójfazowej QUBO 96H - schematy łaczeniowe - układ trójfazowy - trójprzewodowy

Three-phase four wires system

Zaawansowany analizator parametrów sieci trójfazowej QUBO 96H - schematy łaczeniowe - układ trójfazowy - czteroprzewodowy
