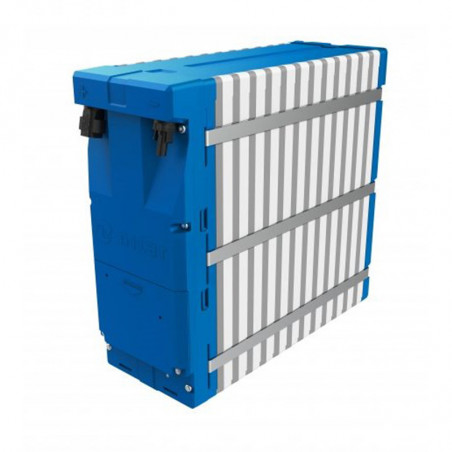

Bateriové baliče NIRA EC

The Nilar EC (Energy Compact) is the only commercially available bi-polar Hydride battery. With the patented Nilar bi-polar design, the Nilar EC brings you a safer, greener, more reliable and cost-efficient energy storage solution. Thanks to the ruggedness of the Nilar Hydride® battery design, Nilar EC delivers a stable performance curve throughout the life of the battery. With an operating temperature range covering from -20°C to +50°C, you can rely on the battery to perform in various conditions. The Circular Economy philosophy has been a central part of the R[&]D process for Nilar EC. Additionally, the newly patented module cooling solution ensures stable temperature throughout the whole pack. Benefits in brief Safer than ”safe”* Environmentally-friendly Fully recyclable Long service life Wide temperature range Maintenance free DOWNLOAD THE CATALOGUE

* Nilar provides battery systems that are safer than many so called ”safe” solutions available on the market. The Nilar battery system contains water based, non-flammable electrolyte. It does not generate short circuit current/failure/conditions even under low temperature charging. The electrodes cannot ignite spontaneously and will not cause heat propagation between modules. That’s why we argue that we are safer than ”safe”.

	Configuration Depth [mm] EC-96V-10Ah 248 EC-108V-10Ah 273 EC-120V-10Ah 293 EC-144V-10Ah 337

Battery pack specification

Electrical characteristics	96V	108V	120V	144V	Unit
Capacity	10	10	10	10	Ah
Energy	0,96	1,08	1,2	1,44	kWh
Cycles	2000	2000	2000	2000	cycles
Nominal voltage	96	108	120	144	VDC
Max continuous charge/discharge	3 C	3 C	3 C	3 C	C-rate
Max charge/discharge	7 C	7 C	7 C	7 C	C-rate
Gravimetric energy density	40,7	41,2	41,7	42,4	Wh/kg
Volumetric energy density	122,1	124,4	126,3	129,3	Wh/l
Mechanical characteristics
Dimensions [DxHxW]	248 x 306 x 127	273 x 306 x 127	293 x 306 x 127	337 x 306 x 127	mm
Weight	24	26	29	34	kg
Protection class
Battery pack	IP54	IP54	IP54	IP54	IP
Integrated Monitoring Unitca	IP21	IP21	IP21	IP21	IP
Operating conditions
Ambient temperature range	-20 to +50	-20 to +50	-20 to +50	-20 to +50	°C
Service life	20+	20+	20+	20+	years
