Výrobce: Eaton / CEAG

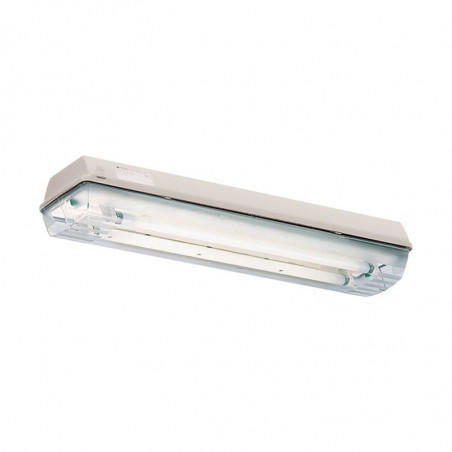

Nlk 08 lineární svítidlo

Light fittings nLLK 08


nLLK 08...N 18-36 W




enLLK 08018/18 N | nLLK 08036/36 N

Oprawa liniowa nLLK 08 Oprawa liniowa nLLK 08 Oprawa liniowa nLLK 08
2 x 18 W 1/6 2 x 36 W 1/6 2 x 36 W N 2/6

Technical data

nLLK 08018/18 N 1/6 | nLLK 08018/18 N 2/6 | nLLK 08036/36 N 1/6 | nLLK 08036/36 N 2/6
Marking accd. to 94/9/WE (ATEX) Ex II 3G Ex nA de mb ib II C T4 Gc / Ex II 3G Ex nA e/de II C T4 Gc /
Ex II 3G Ex nA de II C T4 Gc Ex II 3D Ex tc IIICT80°C Dc / Ex II 2D Ex tb IIICT80°C Db
EC-Type Examination Certificate BVS 09 ATEX E 147 (Strefa 2 i 22)
BVS 09 ATEX E 162 (Strefa 21)
IECEx Certificate of Conformity IECEx BVS 11.0065
Marking accd. to IECEx Ex nA de/demb IIC T4 Gc
Ex tc IIIC T80°C Dc
Permissible ambient temperature -25 °C do 45 °C / -25 °C do +40 °C (2 x 36 W) ( specyfikacja:-5 °C do +35 °C)
Rated voltage 220 V - 240 V AC
Frequency 50-60 Hz
Power factor cos φ ≥ 0,95
Circuit EVG the emergency power supply system
Connecting terminals L1, L2, L3, L, N, PE, max. 2 x 6 mm2 cage clamp; optional screw termina
Protection class I
Lamp cap G13 accd. to IEC 60081
Light output ratio 78%
Working time in emergency mode 1,5 h / 3 h
charging time > 24 h
Degree of protection accd. to EN 60529 IP66
Cable glands / gland plates /
enclosure drilling		 Ex-e cable glands M25 x 1.5 (plastic), option: M20 x 1.5 metal thread
Enclosure material glass-fibre reinforced polyester
Protective cover / protective bowl Polycarbonate

  nLLLK 08018/18 N 1/6 nLLLK 08018/18 N 2/6 2)
Rated current 0,18 A 0,18 A
Lamp/illuminant 2 x T26 / 18 W 2 x T26 / 18 W
Rated luminous flux 1) 2700lm 2700lm
Luminous flux in emergency operation (1.5 h, one lamp) 1) 880 lm (65 %) 880 lm (65 %)
Luminous flux in emergency mode
( 3 h, 1 one lamp) 1)		 415 lm (30 %) 415 lm (30 %)
Battery ó V/4 Ah Accu N i Cd ó V/4 Ah Accu N i Cd
Dimensions in mm (L x W x H) 760 x 188 x 130 mm 900 x 130 x 188 mm
Weight approx. 4,5 kg approx. 6,0 kg

  nLLK 08036/36 N 1/6 nLLK 08036/36 N 2/6 2)
Rated current 0,36 A 0,36 A
Lamp/illuminant 2 x T26/ 36 W 2 x T26/ 36 W
Rated luminous flux 1) 6700lm 6700lm
Strumień światła w trybie awaryjnym
(1,5 h, 1 świetlówka)1)		 1200 lm (36 %) 1200 lm (36 %)
Strumień światła w trybie awaryjnym
(3 h, 1 świetlówka) 1)		 --- 1040 lm (31 %)
Battery 6 V/4 Ah Accu N i Cd 6 V/4 Ah Accu N i Cd (1,5 h)
6 V/7 Ah Accu N i Cd (3,0 h)
Dimensions in mm (L x W x H) 1360 x 188 x 130 mm 1500 x 130 x 188 mm
Weight approx. 6,8 kg approx. 8,3 kg (1,5 h)
  approx. 9,3 kg (3,0 h)
1)depends on used lamps
2)Version 2/6 with seperate battery housing

nLLK 08018/18 N | nLLK 08036/36 N

Oprawa liniowa nLLK 08 Oprawa liniowa nLLK 08 Oprawa liniowa nLLK 08
1 x 18 W 2/6 2 x 36 W 1/6 2 x 36 W N 2/6

Product
Groups		 Product
Subgroup		 Description Part No.
Ex-Fluorescent Light Fittings Ex-Light Fitting nLLK 08... for Zone 2/21/22 Ex-fluorescent light fitting nLLK 08 018/18 1/3-1 13465218001

Ex-Fluorescent Light Fittings Ex-Light Fitting nLLK 08... for Zone 2/21/22 Ex-fluorescent light fitting nLLK 08 018/18 2/5-2 13465218011

Ex-Fluorescent Light Fittings Ex-Light Fitting nLLK 08... for Zone 2/21/22 Ex-fluorescent light fitting nLLK 08 018/18 2/6-2 M 13465218021

Ex-Fluorescent Light Fittings Ex-Light Fitting nLLK 08... for Zone 2/21/22 Ex-fluorescent light fitting nLLK 08 018/18 V-CG-S 2/6-2 13465218912

Ex-Fluorescent Light Fittings Ex-Light Fitting nLLK 08... for Zone 2/21/22 Ex-fluorescent light fitting nLLK 08 018/18 V-CG-S 2/6-M 13465218922

Ex-Fluorescent Light Fittings Ex-Light Fitting nLLK 08... for Zone 2/21/22 Ex-fluorescent light fitting nLLK 08 036 1/3-1 13465136001

Ex-Fluorescent Light Fittings Ex-Light Fitting nLLK 08... for Zone 2/21/22 Ex-fluorescent light fitting nLLK 08 036 2/5-2 13465136011

Ex-Fluorescent Light Fittings Ex-Light Fitting nLLK 08... for Zone 2/21/22 Ex-fluorescent light fitting nLLK 08 036 2/6-2M 13465136021

Ex-Fluorescent Light Fittings Ex-Light Fitting nLLK 08... for Zone 2/21/22 Ex-fluorescent light fitting nLLK 08 036/36 1/3-1 13465236001

Ex-Fluorescent Light Fittings Ex-Light Fitting nLLK 08... for Zone 2/21/22 Ex-fluorescent light fitting nLLK 08 036/36 2/5-2 13465236011

Ex-Fluorescent Light Fittings Ex-Light Fitting nLLK 08... for Zone 2/21/22 Ex-fluorescent light fitting nLLK 08 036/36 2/6-2M 13465236021

Ex-Fluorescent Light Fittings Ex-Light Fitting nLLK 08... for Zone 2/21/22 Ex-fluorescent light fitting nLLK 08 036/36 V-CG-S 2/6-2 13465236912

Ex-Fluorescent Light Fittings Ex-Light Fitting nLLK 08... for Zone 2/21/22 Ex-fluorescent light fitting nLLK 08 036/36 V-CG-S 2/6-2M 13465236922

Ex-Fluorescent Light Fittings Ex-Light Fitting nLLK 08... for Zone 2/21/22 Ex-fluorescent light fitting nLLK 08 058 1/3-1 13465158001

Ex-Fluorescent Light Fittings Ex-Light Fitting nLLK 08... for Zone 2/21/22 Ex-fluorescent light fitting nLLK 08 058 2/5-2 13465158011

Ex-Fluorescent Light Fittings Ex-Light Fitting nLLK 08... for Zone 2/21/22 Ex-fluorescent light fitting nLLK 08 058 2/6-2M 13465158021

Ex-Fluorescent Light Fittings Ex-Light Fitting nLLK 08... for Zone 2/21/22 Ex-fluorescent light fitting nLLK 08 058/58 1/3-1 13465258001

Ex-Fluorescent Light Fittings Ex-Light Fitting nLLK 08... for Zone 2/21/22 Ex-fluorescent light fitting nLLK 08 058/58 2/5-2 13465258011

Ex-Fluorescent Light Fittings Ex-Light Fitting nLLK 08... for Zone 2/21/22 Ex-fluorescent light fitting nLLK 08 058/58 2/6-2M 13465258021

Ex-Fluorescent Light Fittings Ex-Light Fitting nLLK 08... for Zone 2/21/22 Ex-fluorescent light fitting nLLK 08 058/58 V-CG-S 2/6-2 13465258912

Ex-Fluorescent Light Fittings Ex-Light Fitting nLLK 08... for Zone 2/21/22 Ex-fluorescent light fitting nLLK 08 058/58 V-CG-S 2/6-2M 13465258922

Ex-Fluorescent Light Fittings Ex-Light Fitting nLLK 08... for Zone 2/21/22 Ex-pole mounted fluorescent light fitting nLLM 08 018/18 1/3-1 13465218101

Ex-Fluorescent Light Fittings Ex-Light Fitting nLLK 08... for Zone 2/21/22 Ex-pole mounted fluorescent light fitting nLLM 08 036/36 1/3-1 13465236101


Accessories

Lamp for luminarie nLLK 08... N
Type/code Corrosin proteciron Qty. per light fitting Order No.
Eye bolt A2 galvanized 2 22 480 002 000
Hexagon screw S4 stainless steel 2 22 480 054 000
Calling mounting bracker D92 incl. screws and washer stainless steel 2 22 480 092 000

|Fixing materials nLLK 08... N

Type/code Corrosiopn protection for pipes DIN Outer Ø D (mm) Qty. per light fitting Order no.
Pipe clamp
R12 hot galvanized 1 1/4" 38-42 2 22 480 462 000
R14 CrNi 1 1/4" 38-42 2 22 480 464 000
R22 hot galvanized 1 1/4" 47-51 2 22 480 472 000
R24 CrNi 1 1/4" 47-51 2 22 480 474 000
R32 hot galvanized 2" 56-60 2 22 480 482 000
R34 CrNi 2" 56-60 2 22 480 484 000
ZLuminaire wall suspension 30° hot galvanized 2 2 2480 000 122 incl. screws and washer hot galvanized     2 22 480 000 122

nLLK 08018/18 N | nLLK 08036/36 N

Oprawa liniowa nLLK 08 Oprawa liniowa nLLK 08 Oprawa liniowa nLLK 08
2 x 18 W 1/6 2 x 36 W 1/6 2 x 36 W N 2/6

Accessories

Battery nLLK 08.. N
Model Order no.
nLLK 08.. N 1/6, nLLK 08... N 2/6
Battery pack 6 V/4 Ah (... 18/18 N 1/6, 1,5 h i 3 h, 36/36 N 1/6, 1,5 h) 23 468 236 902
Battery pack 6 V/4 Ah (... 18/18 N 1/6, 1,5 h i 3 h, 36/36 N 1/6, 1,5 h) 23 468 236 903
Battery pack 6 V/7 Ah (... 36/36 N 2/6, 3 h) 23 468 236 904

Dimension drawing [mm]

Oprawa liniowa nLLK 08

Polar curve

Polar curve
nLLK 08018/18 N / nLLK 08036/36 N
Polar curve
nLLK 08018/18 N / nLLK 08036/36 N
Oprawa liniowa nLLK 08 Oprawa liniowa nLLK 08

Oprawa liniowa nLLK 08
