Propusti sérii AFPI
  • Propusti sérii AFPI

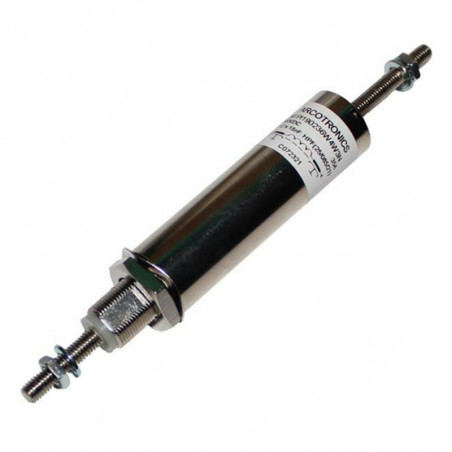

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: Arcotronics

Propusti sérii AFPI

Electrical data

Nominal voltage (UR): 200 VDC
Nominal current (IN): at ambient temperature 40°C
Voltage test (2s): 300 VDC
Climatic categories: HPF (55/125/56)
Temperature range: -25°C - 85°C

Marking example: AFPI 100 410HPT1S

Type IN
VDC
[A]		 RDC
[mΩ]		 C
[nF]		 Damping
50
[kHz]		 100
[kHz]		 300
[kHz]		 1
[MHz]		 10
[MHz]		 100
[MHz]
HPT1S 0,5 <700 2x500 33 52 79 100 100 100
HFT1S 1 <200 2x500 8 35 66 95 100 100
HGT1S 3 <50 2x500 8 28 62 93 100 100
HHT1S 5 <10 2x500 - 16 44 74 100 100
HJT1S 10 <5 2x500 - 18 29 57 100 100

Scheme

AFPI 100 410HPT1S Scheme

Casing

Marking example: AFPI 16 - * 440DMW3N

Type IN
DC		 UN
DC/AC		 RDC
[mΩ]		 C
[nF]		 Voltage test
DC		 Climatic category Dimensions Ø d
[mm]		 Damping
A B D T 50
[kHz]		 100
[kHz]		 300
[kHz]		 1
[MHz]		 10
[MHz]		 100
[MHz]
440DMW3N 16 100/- <6 2x2000 250 40/085/21 16 34 16 M10x0.75 1,2 60 78 100 100 100 100
320WMW3N 16 440/- <6 2x100 1400 40/085/21 12 34 16 M10x0.75 1,2 6 10 19 50 93 100
236TMW3N 16 600/250 <6 2x18nF 2700 40/085/21 16 34 16 M10x0.75 1,2     4 26 71 100
150TMW3N 16 600/250 <6 2x2.5 2700 40/085/21 12 34 16 M10x0.75 1,2       5 36 83

Caution
0 – wire led outs,
1 – connector 6,3x0,8mm,
2 – connector 6,3x0,8mm both sides

Marking example: AFPI 190410V6C3S

Type IN
DC		 UN
DC/AC		 RDC
[mΩ]		 C
[nF]		 Voltage test
DC		 Climatic category Dimensions Ø d
[mm]		 Damping
A B D T 50
[kHz]		 100
[kHz]		 300
[kHz]		 1
[MHz]		 10
[MHz]		 100
[MHz]
410V6C3S 6 250/- <15 2x500 2121 40/085/21 17 75 19 M12x0.75 1,2   23 53 78 100 100
440D3W4N 30 100/- <2 2x2000 250 40/085/21 16 40 19 M12x0.75 1,8 60 78 100 100 100 100
320W3W4N 30 440/- <2 2x100 1400 40/085/21 16 40 19 M12x0.75 2 6 10 19 50 93 100
236T3W4N 30 600/250 <2 2x18 2700 40/085/21 16 40 19 M12x0.75 2     4 26 71 100

Caution
Casing: N - nickled, S - silvered.

Scheme

AFPI 100 410HPT1S Scheme

Casing
