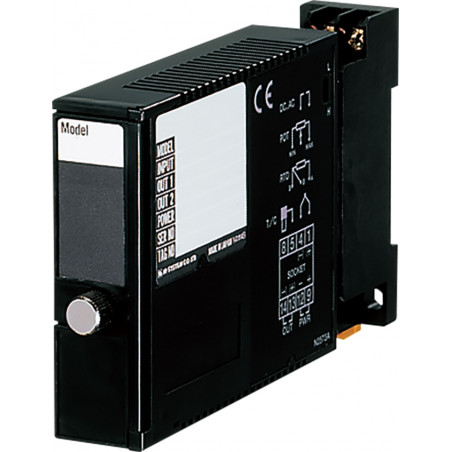

Input types: universal, mA DC, mV DC, µA, V DC, mA AC, A AC, mV AC, V AC, thermocouple, sensor (Pt 50, Pt 100, Pt1000 ..., Ni, Cu), frequency (pulse), resistance (potentiometric), pneumatic.
Output types: mA DC, mV DC, VDC, frequency (pulse)
Possibility to make a range of inputs / outputs on a special request.
Wire connection | M3 screw terminals |
---|---|
Separation | Input / Output / Power |
Dielectric strength | DC: 2000V AC AC: 1500V AC |
Ranges selection | Set while ordering or programmed with One Step Cal / PC |
Double exit | None |
Power | AC / DC |
Operating Temperature | - 30 to + 60 ° C |
Mounting | DIN Rail |
Dimensions | 29.5x76x124mm |
