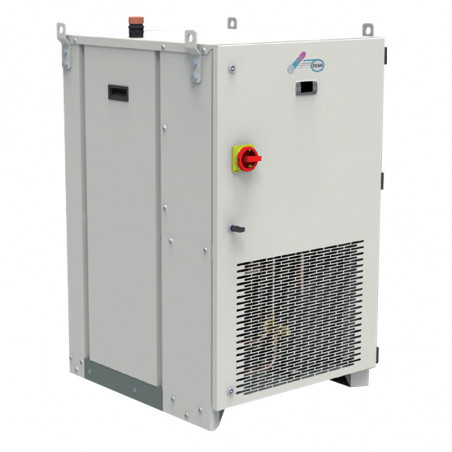

Vodní chladiče řady 1 - TCW15-36

Chłillers for water cooling series 1 TCW15-36


Cooling power range 1600 - 4 400 W
Casing Steel, covered with polyester, colour RAL 7035, casing is removable.
Compressor Hermetically closed compressor with thermal protection.
Cooling circuit Stub pipe for cooling liquid refill, filter, high pressure switch, cooling liquid R134a.
Evaporator Plate heat exchanger with icing protection.
Condenser High efficient, spiral exchanger with ribs, protected with steel net.
Axial fan Protected thermally and with metal net.
Hydraulic circuit Consist of electric pump, plastic water container, valve, manometr 0-10 bar. Evaporator is protected with flow sensor.
Temperature control Done by the microprocessor controller TX200, which allows for water temperature control as well as setting of the alarms, lights and turning device on/off.


Dimensions

Chłodnice, Chillery do chłodzenia wody serii 1 TCW wymiar


Technical data

Type TCW 15 TCW 22 TCW 36
50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz
Nominal cooling power [W] 1600 1900 2200 2550 3300 3900
Ambient temperature range [°C] +15 ÷ +45
Water temperature range [°C] +8 ÷ +25
Cooling liquid R134a
Power supply [V/Hz] 230V (+/-10%) 1ph / 50/60
Power [W] 1670 2070 2270
Pump
Water flow [l/min] 5,0 / 20,0 6,5 / 20,0 8,5 / 20,0
Water pressure [bar] 3,2 2,9 2,5
Container capacity [l] 30,0
Water terminal [BPS] ½"
Waight [kg] 92,0 94,0 96,0
