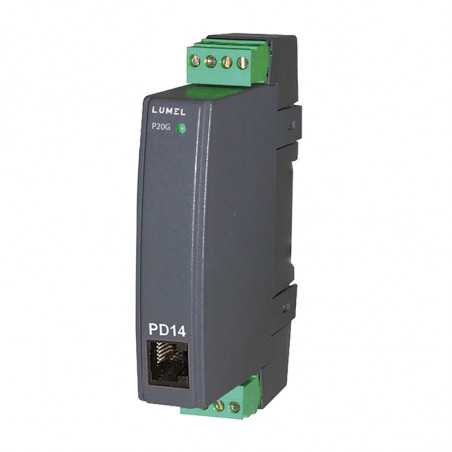

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: LUMEL

Programovatelné oddělovač / P20G Převodník

Programable signal isolator/converter P20G

• Full galvanic isolation of the input, output and auxiliary supply.
• Matching of analog signals in automation systems.
• Fully configurable through the PD14 programmer. By means of the programmer, one can change the input type, output type, measurement averaging time and recalibrate the analog output according to the output individual characteristic.
• Small dimensions.
• 0.2 accuracy class.

Example of Application


Separation between PLC analog inputs

Inputs
Input: Measuring range: Parameters Overloads Error
Current:
-20...20mA		 -20...20 mA;
-5...5 mA;
0...20 mA
0...5 mA
4...20 mA		 Resistance:: 12 Ω ± 1% Short duration overload:
5 In
Sustained overload
1.1 In		 Conversion class: 0.2
Voltage:
-10...10 V		 -10...10 V;
-5...5 V
-1...1 V
0...10 V
0...5 V
0...1 V		 Resistance: > 1 M Ω Short duration overload:
5 Un
Sustained overload
1.2 Un


Outputs
Output kind Output kind Remarks
-20...20 mA Rload ≥ 500 Ω Conversion class: 0,2
-10...10 V Rload ≥ 500 Ω
External Features
Weight 22,5 x 120 x 100 mm
Dimensions < 0,125 kg
Protection grade (acc. to EN 60529) ensured by the housing:IP 40 from the terminal side: IP 20
Fixing on a 35 mm rail acc. to EN 60715
Rated operating conditions
Supply voltage 85...253 V a.c. (45...65Hz) d.c.
lub 20...40 V a.c. (45...65 Hz) d.c.		 power consumption: < 4 VA
Temperature ambient: -20...23...55°C storage: -25...85°C
Relative humidity < 95% inadmissible condensation
Operating position any
Preheating time 10 min
Averaging time of the measurement ≥ 0,1 s
Response time of the separator ≥ 0,1 s
Safety and compatibility requirements
Electromagnetic compatibility Noise immunity acc. to EN 61000-6-2
Noise emissions acc. to EN 61000-6-4
Isolation between circuits basic acc. to EN 61010-1
Pollution grade 2
Installation category III
Maximal phase-to-earth operating
voltage		 for the supply circuit: 300 V (version: 230 V)
for the measuring input: 50 V
for the output: 50 V
Altitude above sea level < 2000 m


Connection diagrams


Electrical connection diagram of the P20G separator

Zamawianie
Table 1. Ordering codes:
P27G XX XX X XX X X
Input:
kind of programmed input: see table 2		 XX
Output:
kind of programmed output: see table 2		   XX
Supply:
85...253 V a.c./d.c.
20...40 V a.c./d.c.
1
2
Version:
standard
non-standard settings
custom-made*
00
NS
XX
Language:
Polish
English
other*
P
E
X
Acceptance tests:
without extra quality inspection requiremnts
with an extra quality inspection certificate
acc. to customer’s request*
0
1
X


Table 2. Coding of the P20G separator kind of input and output
Range Input code Output code
0...1 V 01 01**
0...5 V 02 02
0...10 V 03 03
±1 V 04 04**
±5 V 05 05
±10 V 06 06
0...5 mA 07 07**
0...20 mA 08 08
±5 mA 09 09**
±20 mA 10 10
4...20 mA 11 11
Custom-made version* XX XX
* - after agreeing with the manufacturer
** - conversion class > 0,2


Order example:
The code P20G - 08 06 1 00 E 1 means:
P20G - Separator of analog signals (U d.c. and I d.c.)
08 - kind of programmed input: 0...20 mA
06 - kind of programmed output: ±10 V
1 - supply voltage: 85...253 V a.c./d.c.
00 - standard version
E - English language
1 - with an extra quality inspection requirements
