Ochranné hadice elektrické hadice protektorů ™
Ochranné hadice elektrické hadice protektorů ™

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: Lippmann

Ochranné hadice elektrické hadice protektorů ™

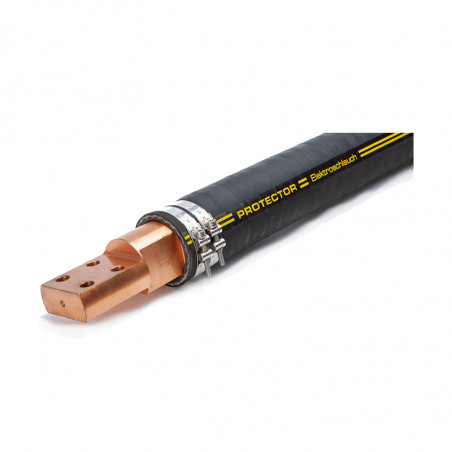

PROTECTOR™ ELECTRIC HOSE



Properties
  • Cover: self-extinguishing, hardly flammable, partly oil resistant, resistant to UV rays and ozone
  • Lining: hot water resistant
  • Temperature range: -30°C temporarily up to +110°C
  • Working pressure: 10 bar
  • Test pressure: 15 bar
  • Burst pressure > 30 bar
  • Electrical resistance: R> 10¹¹ Ω/m
  • Dielectric strength: > 6 kV/mm
  • Change of length at max. working pressure +/- 3%
  • Complies with REACH
Material
  • Lining: high-quality EPDM rubber, smooth
  • Hardness: 65 +/- 5 Shore A
  • Reinforcement: temperature resistant technical fibre
  • Cover: CR/EPDM/BR, Hardness: 65 +/- 5 Shore A
Areas of Application
  • Cooling water hoses or for water cooled high-current cables
  • Induction Melting Furnaces
  • Electric-Arc-Furnace (EAF)
  • Ladle Furnace (LF)
  • ESR-Plants
  • Holding Furnace
  • Inductive Billet or Bar Heater
  • Induction Hardening Systems
Available Sizes:
DN 10 x 5,0 mm DN 13 x 5,5 mm DN 16 x 5,5 mm DN 19 x 5,5 mm DN 25 x 6,0 mm DN 25 x 7,0 mm DN 30 x 6,0 mm DN 32 x 6,0 mm
DN 32 x 8,0 mm DN 32 x 10,0 mm DN 35 x 6,5 mm DN 38 x 6,5 mm DN 38 x 8,0 mm DN 40 x 6,5 mm DN 40 x 10,0 mm DN 42 x 6,5 mm
DN 42 x 9,0 mm DN 50 x 7,5 mm DN 50 x 10,0 mm DN 55 x 7,5 mm DN 60 x 8,0 mm DN 63 x 8,0 mm DN 70 x 8,0 mm DN 75 x 8,0 mm
DN 80 x 8,0 mm DN 90 x 9,0 mm DN 100 x 9,0 mm
Méně
Přečtěte si více

Zašlete dotaz

Máte zájem o tento produkt? Potřebujete další informace nebo individuální ceny?

Kontaktujte nás
ZEPTEJTE SE O PRODUKT close
Děkujeme za zaslání zprávy. Odpovíme co nejdříve.
ZEPTEJTE SE O PRODUKT close
Procházet
pošlete dotaz

Přidat do seznamu přání

musíš být přihlášen

PROTECTOR™ ELECTRIC HOSE



Properties
  • Cover: self-extinguishing, hardly flammable, partly oil resistant, resistant to UV rays and ozone
  • Lining: hot water resistant
  • Temperature range: -30°C temporarily up to +110°C
  • Working pressure: 10 bar
  • Test pressure: 15 bar
  • Burst pressure > 30 bar
  • Electrical resistance: R> 10¹¹ Ω/m
  • Dielectric strength: > 6 kV/mm
  • Change of length at max. working pressure +/- 3%
  • Complies with REACH
Material
  • Lining: high-quality EPDM rubber, smooth
  • Hardness: 65 +/- 5 Shore A
  • Reinforcement: temperature resistant technical fibre
  • Cover: CR/EPDM/BR, Hardness: 65 +/- 5 Shore A
Areas of Application
  • Cooling water hoses or for water cooled high-current cables
  • Induction Melting Furnaces
  • Electric-Arc-Furnace (EAF)
  • Ladle Furnace (LF)
  • ESR-Plants
  • Holding Furnace
  • Inductive Billet or Bar Heater
  • Induction Hardening Systems
Available Sizes:
DN 10 x 5,0 mm DN 13 x 5,5 mm DN 16 x 5,5 mm DN 19 x 5,5 mm DN 25 x 6,0 mm DN 25 x 7,0 mm DN 30 x 6,0 mm DN 32 x 6,0 mm
DN 32 x 8,0 mm DN 32 x 10,0 mm DN 35 x 6,5 mm DN 38 x 6,5 mm DN 38 x 8,0 mm DN 40 x 6,5 mm DN 40 x 10,0 mm DN 42 x 6,5 mm
DN 42 x 9,0 mm DN 50 x 7,5 mm DN 50 x 10,0 mm DN 55 x 7,5 mm DN 60 x 8,0 mm DN 63 x 8,0 mm DN 70 x 8,0 mm DN 75 x 8,0 mm
DN 80 x 8,0 mm DN 90 x 9,0 mm DN 100 x 9,0 mm
