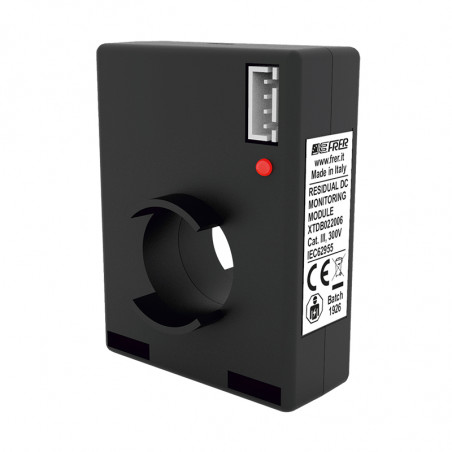

XTDB022 Diferenciální monitorovací modul
  • XTDB022 Diferenciální monitorovací modul

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: FRER

XTDB022 Diferenciální monitorovací modul

Residual direct current monitoring module (RDC-M-module)



Description:

The XTDB022 is a residual direct current monitoring module (RDC-M-module) which, electrically coupled to a protection unit (RCD relay) or switching unit (contactor, relay, etc.), performs the function of the residual direct current monitoring device (RDC-MD), in full compliance with the requirements of IEC 62955. It is used in AC charging stations permanently connected to the mains (mode 3 according to IEC 61851-1), where the presence of a residual direct current detecting device (RDC-DD), capable of interrupting the power supply to the electric vehicle (EV) in the event that this current is equal to or greater than 6 mA, is required in order to guarantee the correct operation of type A or type F RCD installed upstream of the station itself,
which could otherwise be “blinded” by the presence of an excessive direct current component. The XTDB022 monitoring module is characterized by a wide cable passing aperture (22.5 mm), while retaining a very small overall size, a JST connector for quick and easy installation, and a diagnostic LED that indicates the different operating states of the system.



power supply 12Vdc ±10% Typ 15mADC, max 25mADC
trip output active high, open collector, referred to GND
40V max (open) 0.1V, 100mA max (closed)
charging state input active low, referred to GND
low level < 1V
high level > 10V
nominal 24VDC
connector JST BH4B-XH-2
primary circuit rated load current 63A 3-phase or
single-phase 48...62Hz
nominal operating
residual current
nominal non-operating		 6 mA
residual current 4 mA
response time < 9.5 s @ 6 mADC
< 250 ms @ 60 mADC
< 50 ms @ 200 mADC
operating temperature -25...+85°C
primary/secundary insulation 1500 V AC 5s, Uimp 4 kV (IEC 62955)
current surge withstanding 3 kA 8/20 us
protection degree IP40
self estinguishing
thermoplastic material		 UL 94-V0



Ordering codes

Sensors

XTDB _ _ _ _ _ _

Current:

6mA DC

XTDB022006



10mA DC

XTDB022010
