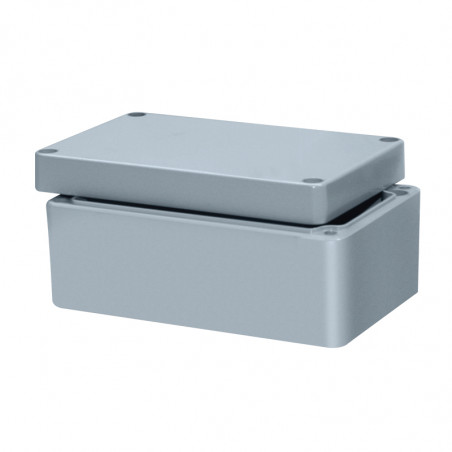

![RJ / AK - IP66 Hliníkové pouzdro RJ / AK - IP66 Hliníkové pouzdro](https://www.dacpol.eu/8036-large_default/rj-ak-ip66-hlinikove-pouzdro.jpg)
![RJ / AK - IP66 Hliníkové pouzdro RJ / AK - IP66 Hliníkové pouzdro](https://www.dacpol.eu/8036-large_default/rj-ak-ip66-hlinikove-pouzdro.jpg)
Musíte být přihlášen
Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu
please use latin characters
Aluminum Standard Enclosures RJ are known for providing complete safety to your electrical equipment. We are well equipped with all the facilities required to modify the standard enclosure as per the customer’s requirement. These customized services include machining, painting, silk screen printing.
Technical information:
Material | Aluminum Alloy (AlSi12) |
---|---|
IP | IP 66 (IP67, IP68 on Request) |
Impact Energy | IK 09 (10 Joules) |
Temperature Range | -40°C to +80°C (Neoprene) -60°C to +140°C (Silicone) -30°C to +150°C (Viton) -55°C to +125°C (EMC) |
Gasket | Neoprene , Silicone, Viton, EMC |
Color | 1. Natural Finish (Pretreated) 2. RAL 7001 (Other colours on Request) |
Part Code No. | External Dimensions (mm) | External Dimensions (inches) | ||||
---|---|---|---|---|---|---|
Length | Width | Height | Length | Width | Height | |
RJ01 | 50 | 45 | 30 | 1.97 | 1.77 | 1.18 |
RJ02 | 98 | 64 | 34 | 3.86 | 2.52 | 1.34 |
RJ03 | 150 | 64 | 34 | 5.91 | 2.52 | 1.34 |
RJ04 | 58 | 64 | 34 | 2.28 | 2.52 | 1.34 |
RJ05 | 75 | 80 | 57 | 2.95 | 3.15 | 2.24 |
RJ06 | 125 | 80 | 57 | 4.92 | 3.15 | 2.24 |
RJ07 | 175 | 80 | 57 | 6.89 | 3.15 | 2.24 |
RJ08 | 250 | 80 | 57 | 9.84 | 3.15 | 2.24 |
RJ09 | 100 | 100 | 81 | 3.94 | 3.94 | 3.19 |
RJ10 | 160 | 100 | 81 | 6.3 | 3.94 | 3.19 |
RJ11 | 122 | 120 | 81 | 4.8 | 4.72 | 3.19 |
RJ12 | 220 | 120 | 90 | 8.66 | 4.72 | 3.58 |
RJ13 | 260 | 160 | 90 | 10.24 | 6.3 | 3.54 |
RJ14 | 360 | 160 | 90 | 14.17 | 6.3 | 3.54 |
RJ15 | 160 | 160 | 91 | 6.3 | 6.3 | 3.54 |
RJ17 | 280 | 230 | 110 | 11.02 | 9.06 | 4.33 |
RJ18 | 330 | 230 | 110 | 12.99 | 9.06 | 4.33 |
RJ19 | 230 | 200 | 110 | 9.06 | 7.87 | 4.33 |
RJ20 | 330 | 230 | 180 | 12.99 | 9.06 | 7.09 |
RJ21 | 220 | 120 | 81 | 8.66 | 4.72 | 3.19 |
RJ22 | 122 | 120 | 91 | 4.8 | 4.72 | 3.58 |
RJ28 | 180 | 180 | 100 | 7.09 | 7.09 | 3.94 |
RJ29 | 280 | 180 | 100 | 11.02 | 7.09 | 3.94 |
RJ30 | 230 | 200 | 180 | 9.06 | 7.87 | 7.09 |
RJ31 | 400 | 310 | 110 | 15.75 | 12.2 | 4.33 |
RJ32 | 400 | 310 | 180 | 15.75 | 12.2 | 7.09 |
RJ33 | 600 | 310 | 110 | 23.62 | 12.2 | 4.33 |
RJ34 | 600 | 310 | 180 | 23.62 | 12.2 | 7.09 |
RJ35 | 400 | 230 | 110 | 15.75 | 9.06 | 4.33 |
RJ36 | 140 | 140 | 90 | 5.51 | 5.51 | 3.58 |
RJ37 | 200 | 140 | 90 | 7.87 | 5.51 | 3.54 |
