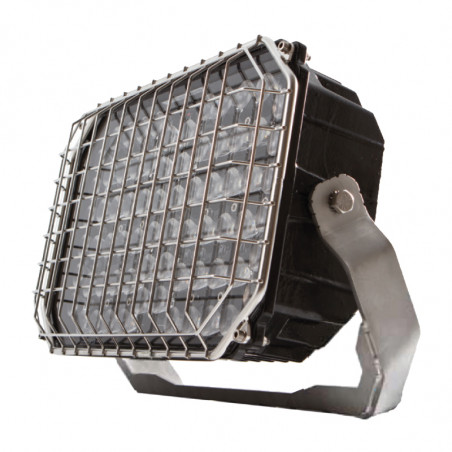

LED světlomet pro ex série RLXD
  • LED světlomet pro ex série RLXD

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: Luminell

LED světlomet pro ex série RLXD

Powerful LED floodlights made to increase safety in extreme environments

  • ATEX 3G Ex nA IIC T5 Gc (Zone 2)
  • TÜV Certificate no. TÜV 12 ATEX 104001 X
  • Made to handle shocks and vibrations
  • Will endure more than 15 years in offshore environments!
  • Rated power: 160 Watt
  • 8 different beams –high flexibility
  • Water proof – IP 66/67
  • No ballast required
  • Designed and produced in Scandinavia


Models

Beam Angle Power Order code
Spot 10o (circle) 160 W

RLXD-Sbe10
Spot 20o (circle)

RLXD-Sbe20
Medium 30o (circle)

RLXD-Mbe30
Medium 40o (circle)

RLXD-Mbe40
Oval (horizontal) 45o (oval)

RLXD-Obe45.12(H)
Oval (vertical) 12o x 45o (oval)

RLXD-Obe12.45(V)
Wide offset 120o x 50o (wide offser)

RLXD-Wobs120.50
Wide 110o x 45o (wide)

RLXD-Wbs110.45

Accessories: Protection grid RLX D/E (art. no. 252), lux switch (art. no. 1001111) and damper (art. no. 200).
Specifications are subject to change at any point without prior notice.

Input specifications

Input voltage range 100 – 305V AC
Frequency range 47 – 63 Hz
Rated power 160Watt 0,75A i 230
(Refer to ambient temperature, note e)
Leakage current < 0.75 mA / 227 VAC
Inrush current (230 VAC cold start) ~55 A (445 μs)

Light specifications

Luminous flux 15,000 lm (note 3)
Color rendering index (CRI) 70 (minimum)
Color temperature 5,000 K (note 4)
Light distribution Refer to light distribution (page 4)
(Wide beam comparable to a 1000 W halogen lamp)

General specifications

Startup time 1 second (note 5)
Operating ambient temperature (Ta) –25°C to +55°C (note 2)
Storage temperature –40°C to +80°C
Materials Reinforced glass
Cast aluminum
Stainless steel (AISI 316, A4)
Finish Anodized. Coated black
Weight Approximately 10.5 kg
Protection class IP 66/67
Lifetime prediction Up to 100,000 hours (note 6, figure 1)
Based on lumen maintenance of 70% (L70)
Designed to endure saltwater environments
for more than 15 years!

Lifetime prediction

Safety standards

LED modules for general lightning IEC 62031
Photobiological safety IEC 62471: 2009 (Low risk – RG1)
ATEX Directive safety EN 60079-0: 2009; EN 60079-15: 2010
Electromagnetic compatibility (EMC) EN 55015
Radiated emissions EN 60945
EMS immunity EN 55024 (surge 4KV – criteria A)
EN 61000-4-2, 3, 4, 5, 6, 8, 11

Dimensions and mounting

Naświetlacz LED RLXD wymiary montaż

Light distribution

Model: Spot 10o (1060 cd/W) Model: Spot 20o (560 cd/W)
Distance: 10m
Diameter: 2m
Candela value: 170000 cd
Center of circle: 1700 lx		 Naświetlacz LED RLXD rozkład światła 10 Distance: 10m
Diameter: 3m
Candela value: 90000 cd
Center of circle: 900 lx		 Naświetlacz LED RLXD rozkład światła 20
Model: Medium 30o (250 cd/W) Model: Medium 40o (125 cd/W)
Distance: 10m
Diameter: 5,4m
Candela value: 40000 cd
Center of circle: 400 lx		 Naświetlacz LED RLXD rozkład światła 30 Distance: 10m
Diameter: 7m
Candela value: 20000 cd
Center of circle: 200 lx		 Naświetlacz LED RLXD rozkład światła 40
Model: Oval (horizontal) 45x12o (280 cd/W) Model: Oval (vertical) 12x45o (280 cd/W)
Distance: 10m
Diameter: 8,2m
Candela value: 45000 cd
Center of circle: 450 lx		 Naświetlacz LED RLXD rozkład światła 45x12 Distance: 10m
Diameter: 2m
Candela value: 45000 cd
Center of circle: 450 lx		 Naświetlacz LED RLXD rozkład światła 12x45
Model: Wide offset 120x50o (47 cd/W) Model: Wide 110x45o (47 cd/W)
Distance: 10m
Diameter: 34m
Candela value: 7500 cd
Center of circle: 75 lx		 Naświetlacz LED RLXD rozkład światła 120x50 Distance: 10m
Diameter: 28m
Candela value: 6000 cd
Center of circle: 60 lx		 Naświetlacz LED RLXD rozkład światła 110x45
Méně
