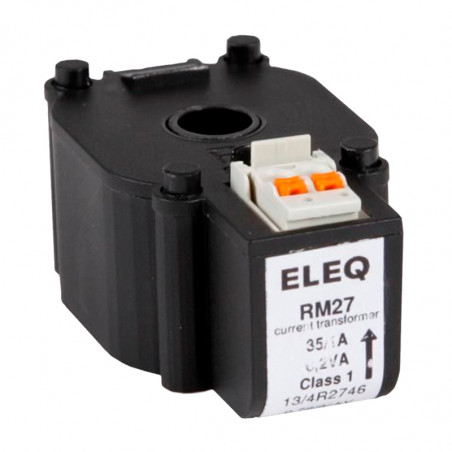

RM 27 Kompaktní transformátory proudu pro instalační spínače

Nowadays, a more detailed current measurement is required in many installations. Often this means less available space while measuring relatively low values. In addition, the accuracy of the measurement has to be sufficient (at least class 1).
The RM27 meets those requirements in one product. The very compact ELEQ RM27 current transformer is especially designed for connection to digital measurement systems. The main advantage of the RM27 is that the dimensions of this product are designed for use in a three phase circuit breaker with a fase distance of 17,5mm. The RM27 is supplied with a connector with clamp technology for easy installation of the secondary leads. Optional: screw mounting or mounting on a DIN-rail.



RM27 – Compact Current Transformer

Features:

  • Current transformer according to IEC61869-2;
  • Current ratios 35/1, 64/1A, class 1;
  • Primary window suitable for insulated cable Ø7.5mm;
  • For use on 3 phase circuit breaker with fase distance of 17.5mm;
  • Rail mounting with optional mounting clip;
  •  Screw mounting or mounting on a DIN-rail.
Dimensions [mm]

RM27 – Compact Current Transformer

Order specification:
Ratio Class Burden Article number
35/1A 1 0,2VA 4R2746
64/1A 1 0,2VA 4R2747
Mounting clip (DIN) 411884
