Kulaté konektory řady CA
  • Kulaté konektory řady CA

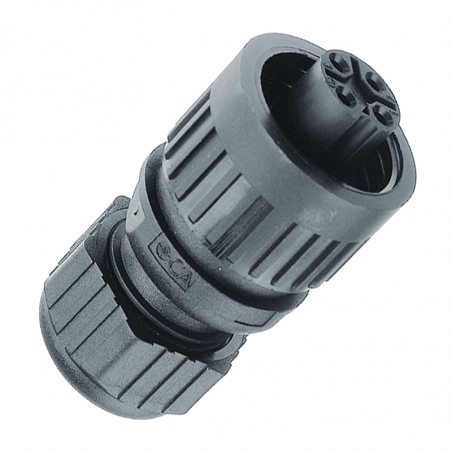

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: Hirschmann

Kulaté konektory řady CA


Junction description socket  socket  gniazdo kątowe
Junction type: CA 3 LD CA 6 LD CA 3 W LD
Symbol:  934-125-100 934-127-100 934-129-100
Contacts quantity: 3 + PE 6 + PE 3 + PE
Gland M 22x2  M 22x2 M 22x2
Wire diameter:: od 6 mm do 12 mm od 6 mm do 12 mm od 6 mm do 12 mm
Wire section max. 2,5 mm2  max. 0,75 mm2  max. 2,5 mm2
Casing colour black black black

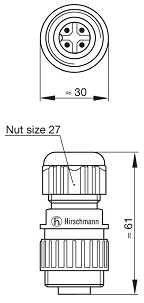

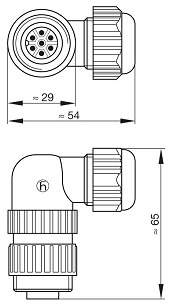

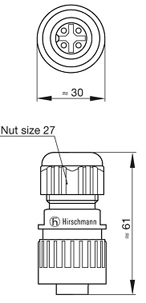

Drawing:
Technical data:
PIN dimension 2 mm 1,5 mm 2 mm
Operating voltage: DC 250 V, AC 400V DC 250 V, AC 250V DC 250 V, AC 400V
Current DC 10 A, AC 16 A DC 10 A, AC 10 A DC 10 A, AC 16 A
Cable connection  screw soldering screw
IP IP 67  IP 67  IP 67
Operation temperature:  -40 C do  90 C  -40 C do  90 C  -40 C do  90 C
Contact material:
Contact surface: Ag Ag Ag
Casing material: PA 66-GF 25 PA 66-GF 25 PA 66-GF 25
Ring: NBR NBR NBR
Certificates:
 UL, VDE  UL, VDE  UL, VDE
Package: 100 pce. 100 pce. 100 pce.
Matching joints: CA 3 LS, CA 3 GS CA 6 LS, CA 6 GS CA 3 LS, CA 3 GS


Junction description gniazdo kątowe gniazdo montowane na panel gniazdo montowane na panel
Junction type: CA 6 W LD CA 3 GD CA 6 GD
Symbol:  934-131-100 932-321-100 932-325-100
Contacts quantity: 6 + PE 3 + PE 6 + PE
Gland M 22x2
Wire diameter:: od 6 mm do 12 mm
Wire section max. 0,75 mm2  max. 2,5 mm2  max. 0,75 mm2
Casing colour black black black
Drawing:
Technical data:
PIN dimension 1,5 mm 2 mm 1,5 mm
Operating voltage: DC 250 V, AC 250V DC 250 V, AC 400V DC 250 V, AC 250V
Current DC 10 A, AC 10 A DC 10 A, AC 16 A DC 10 A, AC 10 A
Cable connection  soldering screw soldering
IP IP 67  IP 67  IP 67
Operation temperature:  -40 C do  90 C  -40 C do  90 C  -40 C do  90 C
Contact material:
Contact surface: Ag Ag Ag
Casing material: PA 66-GF 25 PA 66-GF 25 PA 66-GF 25
Ring: NBR NBR NBR
Certificates:
 UL, VDE  UL, VDE  UL, VDE
Package: 100 pce. 100 pce. 100 pce.
Matching joints: CA 6 LS, CA 6 GS CA 3 LS CA 6 LS



Junction description Wtyk prosty Wtyk prosty angular socket
Junction type: CA 3 LS,  CA 6 LS CA 3 W LS
Symbol:  934-124-100 934-126-100 934-128-100
Contacts quantity: 3 + PE 6 + PE 3 + PE
Gland M 22x2  M 22x2 M 22x2
Wire diameter:: od 6 mm do 12 mm od 6 mm do 12 mm od 6 mm do 12 mm
Wire section max. 2,5 mm2  max. 0,75 mm2  max. 2,5 mm2
Casing colour black black black
Drawing:
Technical data:
PIN dimension 2 mm 1,5 mm 2 mm
Operating voltage: DC 250 V, AC 400V DC 250 V, AC 250V DC 250 V, AC 400V
Current DC 10 A, AC 16 A DC 10 A, AC 10 A DC 10 A, AC 16 A
Cable connection  screw soldering screw
IP IP 67  IP 67  IP 67
Operation temperature:  -40 C do  90 C  -40 C do  90 C  -40 C do  90 C
Contact material:
Contact surface: Ag Ag Ag
Casing material: PA 66-GF 25 PA 66-GF 25 PA 66-GF 25
Ring: NBR NBR NBR
Certificates:
 UL, VDE  UL, VDE  UL, VDE
Package: 100 pce. 100 pce. 100 pce.
Matching joints: CA 3 LD, CA 3 GD CA 6 LD, CA 6 GD CA 3 LD, CA 3 GD



Junction description angular socket Insert for panel assembly Insert for panel assembly
Junction type: CA 6 W LS CA 3 GS CA 6 GS
Symbol:  934-130-100 932-322-100 932-326-100
Contacts quantity: 6 + PE 3 + PE 6 + PE
Gland M 22x2
Wire diameter: od 6 mm do 12 mm
Wire section max. 0,75 mm2  max. 2,5 mm2  max. 0,75 mm2
Casing colour black black black
Drawing:
Technical data:
PIN dimension 1,5 mm 2 mm 1,5 mm
Operating voltage: DC 250 V, AC 250V DC 250 V, AC 400V DC 250 V, AC 250V
Current DC 10 A, AC 10 A DC 10 A, AC 16 A DC 10 A, AC 10 A
Cable connection  soldering screw soldering
IP: IP 67  IP 67  IP 67
Operation temperature:  -40 C do  90 C  -40 C do  90 C  -40 C do  90 C
Contact material:
Contact surface: Ag Ag Ag
Casing material: PA 66-GF 25 PA 66-GF 25 PA 66-GF 25
Ring: NBR NBR NBR
Certificates:
 UL, VDE  UL, VDE  UL, VDE
Package: 100 pce. 100 pce. 100 pce.
Matching joints: CA 6 LD, CA 6 GD CA 3 LD CA 6 LD
