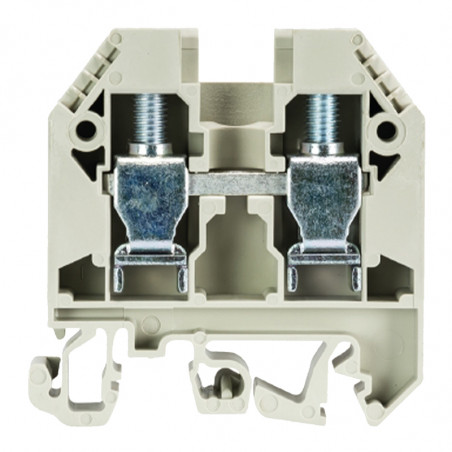

Konektory se svorkou šroubů

Joints with screw clamp



  WK2,5/U
  cord wire V A

EN 60 947-7-1/DIN VDE 0611T1
0,5-2,5 mm2
 0,5-4 mm2 800 V/8 kV/3 24
Data UL
No. 22-12 AWG
   600 V 20/30
Data CSA
No. 24-12
   600 V 25
Construction width.     insulation length
5 mmm
     9 mm
Certificates

Type
 Catalogue number Package
Throughout connector
colour: grey
WK 2,5/U
 57.503.0055.0 100
Throughout connector EEx 1
colour: blue.
WK 2,5/U blueieski
 57.503.0055.6 100
Throughout connector EEx e1)
colour: grey
WK 2,5/U21
 57.503.0055.0 100
Available colours
white, black, red, yellow, orange
Equipment

1. Assembly bus. 35, bus height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus. 35, bus height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly 32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0 1
2 Closing slat
width.10 mm
WE1/U
 Z5.523.5753.0 100
Closing slat TS35 with screw
width. 8 mm
9708/2 S35
 Z5.522.8553.0 100
Closing slat TS32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate. 1,5 mm
colour: grey
AP2.5-4
 07.311.0155.0 10

colour: blue.
AP 2,5 - 4 blueieski
 07.311.0155.6 10
Closing plate. 2 mm
colour: grey


colour: blue.

4. Separate plate gr. 1,5 mm
colour: grey
TW 2,5-4
 07.311.1155.0 10

colour: blue.
TW 2,5 - 4 blueieski
 07.311.1155.6 10
Separate plate gr. 2 mm
colour: grey


colour: blue.

Separate plate gr. 3 mm
colour: grey


colour: blue.

5. short circuit switch, E-Cu

insulated
2-pole.
IVBWK2,5-2
 Z7.280.2227.0 10

3-pole.
IVBWK2,5-3
 Z7.280.2327.0 10

do 12-pole.
IVBWK2,5-12
 Z7.280.3227.0 10
6. Single short circuit switch cover
description
AD VB 2,5 yellow
 04.326.2053.8 10
7. Separate plate
TS2.5 yellow
 07.311.2053.8 10
8. Protection tape
AD VB 5/10 P yellow
 04.342.3556.8 10
Protection tape
AD VB 5/4 yellow
 04.343.4756.8 10


  WK 4/U
  cord wire V A

EN 60 947-7-1/DIN VDE 0611T1
0,5 - 4 mm2
 0,5 - 6 mm2 800 V/8 kV/3   32
DataUL
No. 22-10 AWG 3)
   600 V 30/35
DataCSA
No. 20-10 AWG
   600 V 40
Construction width.     insulation length
6 mm
     9 mm
Certificates

Type
 Catalogue number Package
Throughout connector
colour: grey
WK4/U
 57.504.0055.0 100
Throughout connector EEx 1
colour: blue.
WK4/U blueieski
 57.504.0055.6 100
Throughout connector EEx e1)
colour: grey
WK4/U2'
 57.504.0055.0 100
Available colours
white, black, brown., red, green, yellow, orange.
Equipment

1. Assembly bus. 35, bus height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus. 35, bus height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly 32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0
2 Closing slat
width.10 mm
WE1/U
 Z5.523.5753.0 100
Closing slat TS35 with screw
width. 8 mm
9708/2 S35
 Z5.522.8553.0 100
Closing slat TS32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate. 1,5 mm
colour: grey
AP2.5-4
 07.311.0155.0 10

colour: blue.
AP 2,5-4 blueieski
 07.311.0155.6 10
Closing plate. 2 mm
colour: grey


colour: blue.

4. Separate plate gr. 1,5 mm
colour: grey
TW2.5-4
 07.311.1155.0 10

colour: blue.
TW 2,5 -4 blueieski
 07.311.1155.6 10
Separate plate gr. 2 mm
colour: grey


colour: blue.

Separate plate gr. 3 mm
colour: grey


colour: blue.

5. short circuit switch, E-Cu

insulated
2-pole.
WBWK4-2
 Z7.281.1227.0 10

3-pole.
IVBWK4-3
 Z7.281.1327.0 10

do 12-pole.
WBWK4-12
 Z7.281.2227.0 10
6. Single short circuit switch cover
description
AD VB 4 yellow
 04.326.2153.8 10
7. Separate plate
TS 4 yellow
 07.311.2153.8 10
8. Protection tape
AD VB 6/1OP yellow
 04.342.3656.8 10
Protection tape
AD VB 6/4 yellow
 04.343.4856.8 10




  WK 6/U
  cord wire V A

EN 60 947-7-1/DIN VDE 0611T1
0,5-6 mm2
 2,5-10 mm2 800V/8kV/3 41
DataUL
No. 22-8 AWG4)
 600 V 50/50
DataCSA
No. 20-8 AWG
   600 V 45
Construction width.     insulation length
8 mm
     11mm
Certificates
    Type Catalogue number Package
Throughout connector
colour: grey
WK6/U
 57.506.0055.0 100
Throughout connector EEx 1
colour: blue.
WK6/U blueieski
 57.506.0055.6 100
Throughout connector EEx e1)
colour: grey
WK6/UZ|
 57.506.0055.0 100
Available colours

Equipment

1. Assembly bus. 35, bus height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus. 35, bus height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly busażowa 32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0 1
2 Closing slat
width.10 mm
WE1/U
 Z5.523.5753.0 100
Closing slat TS35 with screw
width. 8 mm
9708/2 S35
 Z5.522.8553.0 100
Closing slat TS32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate. 1,5 mm
colour: grey
AP6
 07.311.0255.0 10

colour: blue.
AP 6 blueieski
 07.311.0255.6 10
Closing plate. 2 mm
colour: grey


colour: blue.

4. Separate plate gr. 1,5 mm
colour: grey
TW6
 07.311.1255.0 10

colour: blue.
TW 6 blueieski
 07.311.1255.6 10
Separate plate gr. 2 mm
colour: grey


colour: blue.

Separate plate gr. 3 mm
colour: grey


colour: blue.

5. short circuit switch, E-Cu

insulated
2-pole.
IVBWK6-2
 Z7.282.2227.0 10

3-pole.
IVBWK6-3
 Z7.282.2327.0 10

do 12-pole.
IVBWK6-12
 Z7.282.3227.0 10
6. Single short circuit switch cover
description
AD VB 6 yellow
 04.326.2253.8 10
7. Separate plate
TS 6 yellow
 07.311.2253.8 10
8. Protection tape
AD VB 8/10 P yellow
 04.342.3856.8 10
Protection tape
AD VB 8/4 yellow
 04.343.4956.8 10




  WK10/U
  cord wire/multiwire V A

EN 60 947-7-1/DIN VDE 0611T1
2,5-10 mm2
 1,5-16 mm2 800V/8kV/3 57
DataUL
No. 16-6 AWG61
 600V 65/65
DataCSA
No. 16-6 AWG
   600 V 70
Construction width.     insulation length
10 mm
     13 mm
Certificates
    Type Catalogue number Package
Throughout connector
colour: grey
WKN 10/U
 57.510.0155.0 50
Throughout connector EEx 1
colour: blue.
WKN 10/U blueieski
 57.510.0155.6 50
Throughout connector EEx e1)
colour: grey
WKN 10/U
 57.510.0155.0 50
Available colours

Equipment

1. Assembly bus. 35, bus height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus. 35, bus height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly  32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0 1
2 Closing slat
width.10 mm
WE1/U
 Z5.523.5753.0 100
Closing slat TS35 with screw
width. 8 mm
9708/2 S35
 Z5.522.8553.0 100
Closing slat TS32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate. 1,5 mm
colour: grey
APN10
 07.311.6655.0 10

colour: blue.
APN 10 blueieski
 07.311.6655.6 10
Closing plate. 2 mm
colour: grey


colour: blue.

4. Separate plate gr. 1,5 mm
colour: grey
TWN10
 07.311.7655.0 10

colour: blue.
TWN10 blueieski
 07.311.7655.6 10
Separate plate gr. 2 mm
colour: grey


colour: blue.

Separate plate gr. 3 mm
colour: grey


colour: blue.

5. short circuit switch, E-Cu

insulated
2-pole.
IVB WKN 10-2
 Z7.283.2227.0 10

3-pole.
IVB WKN 10-3
 Z7.283.2327.0 10

do 12-pole.
IVBWKN10-12
 Z7.283.3227.0 10
6. Single short circuit switch cover
description
ADVB10 yellow
 04.326.2353.8 10
7. Separate plate
TS10 yellow
 07.311.2353.8 10
8. Protection tape
AD VB 10/10 P yellow
 04.342.4056.8 10
Protection tape
AD VB 10/4 yellow
 04.343.5056.8 10



Connectors WKN




  WKN16/U
  cord wire/ multiwire V A

EN 60 947-7-1/DIN VDE 0611T1
4-16 mm2
 1,5-25 mm2 800V/8kV/3 76
DataUL
No. 12-4AWG
   600 V 85/90
DataCSA
No. 14-4 AWG
 600 V 95
Construction width.     insulation length
12 mm
     15mm
Certyficates
  Type Catalogue number Package
Throughout connector
colour: grey
WKN 16/U
 57.516.0155.0 50
Throughout connector EEx 1
colour: blue.
WKN 16/U blueieski
 57.516.0155.6 50
Throughout connector EEx e*)1)
colour: grey
WKN 16/U 2)
 57.516.0155.0 50

Equipment
L = 2m

1. Assembly bus. 35, height. 7,5mm
L = 2m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus. 35, height. 15 mm
L = 2m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly busażowa 32, busG
width. 10 mm
9006 EN 50035 G-32
 98.190.0000.0 1
2. Closing slat
width. 8 mm
WE1/U
 Z5.523.5753.0 100
Closing slat TS35 with screw
width. 7,5 mm
9708/2 S 35
 Z5.522.8553.0 100
Closing slat TS32 with screw
colour: grey
9708
 Z5.522.7053.0 100
3. Closing plate. 1,5 mm
colour: blue.


colour: grey

Closing plate. 2 mm
colour: blue.
APN16
 07.311.6755.0 10

colour: grey
APN16 blueieski
 07.311.6755.6 10
4. Separate plate gr. 1,5 mm
colour: blue.


colour: grey

Separate plate gr. 2 mm
colour: blue.
TWN16
 07.311.7755.0 10

colour: grey
TWN16 blueieski
 07.311.7755.6 1
Separate plate gr. 3 mm
colour: blue.


colour: grey

5. short circuit switch, E-Cu
2-pole.

insulated
3-pole.
IVBWKN16-2
 Z7.284.2227.0 10

do 12-pole.
IVBWKN16-3
 Z7.284.2327.0 10

IVB WKN 16-12
 Z7.284.3227.0 10
6. Single short circuit switch cover

7. Separate plate
TSN 16 yellow
 07.311.8453.8 10
Płytka rozdzielająca z osłoną
TSN AD 16 yellow
 07.311.8553.8 10
8. Protection tape

Protection tape
AD VB12/4 yellow
 04.343.5156.8 10


  Closed execution
WKN 35/U
  cord multiwire V A

EN 60 947-7-1/DIN VDE 0611T1
10-35 mm2
 10-50 mm2 800V/8kV/3 125
DataUL
No. 10-2AWG
   600 V 95/95
DataCSA
No. 12-2 AWG
   600 V 110
Construction width.     insulation length
16 mm
     18 mm
Certificates
<td colspan="2" hei
  Type Catalogue number Package
Throughout connector
colour: grey
WKN35/U
 57.535.0155.0 20
Throughout connector EEx 1
colour: blue.
WKN 35/U blueieski
 57.535.0155.6 20
Throughout connector EEx e*)1)
colour: grey
WKN35/U2)
 57.535.0155.0 20

Equipment
L = 2m

1. Assembly bus. 35, height. 7,5mm
L = 2m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus. 35, height. 15 mm
L = 2m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly 32, busG
width. 10 mm
9006 EN 50035 G-32
 98.190.0000.0 1
2. Closing slat
width. 8 mm
WE2/U
 Z5.523.5653.0 100
Closing slat TS35 with screw
width. 7,5 mm
9708/2 S 35
 Z5.522.8553.0 100
Closing slat TS32 with screw
colour: grey
9708
 Z5.522.7053.0 100
3. Closing plate. 1,5 mm
colour: blue.


colour: grey

Closing plate. 2 mm
colour: blue.


colour: grey

4. Separate plate gr. 1,5 mm
colour: blue.


colour: grey

Separate plate gr. 2 mm
colour: blue.
TWN35
 07.311.7855.0 10

colour: grey
TWN 35 blueieski
 07.311.7855.6 10
Separate plate gr. 3 mm
colour: blue.


colour: grey

5. short circuit switch, E-Cu
2-pole.

insulated
3-pole.
IVB WKN 35-2
 AD VB 35 yellow 5

d 12-pole.
IVB WKN 35-3
 Z7.285.2327.0 5

IVB WKN 35-12
 Z7.285.3227.0 5
6. Single short circuit switch cover
AD VB 35 yellow
 04.326.2553.8 10
7. Separate plate

Separate plate

8. Protection tape

Méně
Přečtěte si více

Zašlete dotaz

Máte zájem o tento produkt? Potřebujete další informace nebo individuální ceny?

Kontaktujte nás
ZEPTEJTE SE O PRODUKT close
Děkujeme za zaslání zprávy. Odpovíme co nejdříve.
ZEPTEJTE SE O PRODUKT close
Procházet
pošlete dotaz

Přidat do seznamu přání

musíš být přihlášen

Joints with screw clamp



  WK2,5/U
  cord wire V A

EN 60 947-7-1/DIN VDE 0611T1
0,5-2,5 mm2
 0,5-4 mm2 800 V/8 kV/3 24
Data UL
No. 22-12 AWG
   600 V 20/30
Data CSA
No. 24-12
   600 V 25
Construction width.     insulation length
5 mmm
     9 mm
Certificates

Type
 Catalogue number Package
Throughout connector
colour: grey
WK 2,5/U
 57.503.0055.0 100
Throughout connector EEx 1
colour: blue.
WK 2,5/U blueieski
 57.503.0055.6 100
Throughout connector EEx e1)
colour: grey
WK 2,5/U21
 57.503.0055.0 100
Available colours
white, black, red, yellow, orange
Equipment

1. Assembly bus. 35, bus height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus. 35, bus height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly 32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0 1
2 Closing slat
width.10 mm
WE1/U
 Z5.523.5753.0 100
Closing slat TS35 with screw
width. 8 mm
9708/2 S35
 Z5.522.8553.0 100
Closing slat TS32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate. 1,5 mm
colour: grey
AP2.5-4
 07.311.0155.0 10

colour: blue.
AP 2,5 - 4 blueieski
 07.311.0155.6 10
Closing plate. 2 mm
colour: grey


colour: blue.

4. Separate plate gr. 1,5 mm
colour: grey
TW 2,5-4
 07.311.1155.0 10

colour: blue.
TW 2,5 - 4 blueieski
 07.311.1155.6 10
Separate plate gr. 2 mm
colour: grey


colour: blue.

Separate plate gr. 3 mm
colour: grey


colour: blue.

5. short circuit switch, E-Cu

insulated
2-pole.
IVBWK2,5-2
 Z7.280.2227.0 10

3-pole.
IVBWK2,5-3
 Z7.280.2327.0 10

do 12-pole.
IVBWK2,5-12
 Z7.280.3227.0 10
6. Single short circuit switch cover
description
AD VB 2,5 yellow
 04.326.2053.8 10
7. Separate plate
TS2.5 yellow
 07.311.2053.8 10
8. Protection tape
AD VB 5/10 P yellow
 04.342.3556.8 10
Protection tape
AD VB 5/4 yellow
 04.343.4756.8 10


  WK 4/U
  cord wire V A

EN 60 947-7-1/DIN VDE 0611T1
0,5 - 4 mm2
 0,5 - 6 mm2 800 V/8 kV/3   32
DataUL
No. 22-10 AWG 3)
   600 V 30/35
DataCSA
No. 20-10 AWG
   600 V 40
Construction width.     insulation length
6 mm
     9 mm
Certificates

Type
 Catalogue number Package
Throughout connector
colour: grey
WK4/U
 57.504.0055.0 100
Throughout connector EEx 1
colour: blue.
WK4/U blueieski
 57.504.0055.6 100
Throughout connector EEx e1)
colour: grey
WK4/U2'
 57.504.0055.0 100
Available colours
white, black, brown., red, green, yellow, orange.
Equipment

1. Assembly bus. 35, bus height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus. 35, bus height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly 32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0
2 Closing slat
width.10 mm
WE1/U
 Z5.523.5753.0 100
Closing slat TS35 with screw
width. 8 mm
9708/2 S35
 Z5.522.8553.0 100
Closing slat TS32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate. 1,5 mm
colour: grey
AP2.5-4
 07.311.0155.0 10

colour: blue.
AP 2,5-4 blueieski
 07.311.0155.6 10
Closing plate. 2 mm
colour: grey


colour: blue.

4. Separate plate gr. 1,5 mm
colour: grey
TW2.5-4
 07.311.1155.0 10

colour: blue.
TW 2,5 -4 blueieski
 07.311.1155.6 10
Separate plate gr. 2 mm
colour: grey


colour: blue.

Separate plate gr. 3 mm
colour: grey


colour: blue.

5. short circuit switch, E-Cu

insulated
2-pole.
WBWK4-2
 Z7.281.1227.0 10

3-pole.
IVBWK4-3
 Z7.281.1327.0 10

do 12-pole.
WBWK4-12
 Z7.281.2227.0 10
6. Single short circuit switch cover
description
AD VB 4 yellow
 04.326.2153.8 10
7. Separate plate
TS 4 yellow
 07.311.2153.8 10
8. Protection tape
AD VB 6/1OP yellow
 04.342.3656.8 10
Protection tape
AD VB 6/4 yellow
 04.343.4856.8 10




  WK 6/U
  cord wire V A

EN 60 947-7-1/DIN VDE 0611T1
0,5-6 mm2
 2,5-10 mm2 800V/8kV/3 41
DataUL
No. 22-8 AWG4)
 600 V 50/50
DataCSA
No. 20-8 AWG
   600 V 45
Construction width.     insulation length
8 mm
     11mm
Certificates
    Type Catalogue number Package
Throughout connector
colour: grey
WK6/U
 57.506.0055.0 100
Throughout connector EEx 1
colour: blue.
WK6/U blueieski
 57.506.0055.6 100
Throughout connector EEx e1)
colour: grey
WK6/UZ|
 57.506.0055.0 100
Available colours

Equipment

1. Assembly bus. 35, bus height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus. 35, bus height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly busażowa 32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0 1
2 Closing slat
width.10 mm
WE1/U
 Z5.523.5753.0 100
Closing slat TS35 with screw
width. 8 mm
9708/2 S35
 Z5.522.8553.0 100
Closing slat TS32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate. 1,5 mm
colour: grey
AP6
 07.311.0255.0 10

colour: blue.
AP 6 blueieski
 07.311.0255.6 10
Closing plate. 2 mm
colour: grey


colour: blue.

4. Separate plate gr. 1,5 mm
colour: grey
TW6
 07.311.1255.0 10

colour: blue.
TW 6 blueieski
 07.311.1255.6 10
Separate plate gr. 2 mm
colour: grey


colour: blue.

Separate plate gr. 3 mm
colour: grey


colour: blue.

5. short circuit switch, E-Cu

insulated
2-pole.
IVBWK6-2
 Z7.282.2227.0 10

3-pole.
IVBWK6-3
 Z7.282.2327.0 10

do 12-pole.
IVBWK6-12
 Z7.282.3227.0 10
6. Single short circuit switch cover
description
AD VB 6 yellow
 04.326.2253.8 10
7. Separate plate
TS 6 yellow
 07.311.2253.8 10
8. Protection tape
AD VB 8/10 P yellow
 04.342.3856.8 10
Protection tape
AD VB 8/4 yellow
 04.343.4956.8 10




  WK10/U
  cord wire/multiwire V A

EN 60 947-7-1/DIN VDE 0611T1
2,5-10 mm2
 1,5-16 mm2 800V/8kV/3 57
DataUL
No. 16-6 AWG61
 600V 65/65
DataCSA
No. 16-6 AWG
   600 V 70
Construction width.     insulation length
10 mm
     13 mm
Certificates
    Type Catalogue number Package
Throughout connector
colour: grey
WKN 10/U
 57.510.0155.0 50
Throughout connector EEx 1
colour: blue.
WKN 10/U blueieski
 57.510.0155.6 50
Throughout connector EEx e1)
colour: grey
WKN 10/U
 57.510.0155.0 50
Available colours

Equipment

1. Assembly bus. 35, bus height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus. 35, bus height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly  32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0 1
2 Closing slat
width.10 mm
WE1/U
 Z5.523.5753.0 100
Closing slat TS35 with screw
width. 8 mm
9708/2 S35
 Z5.522.8553.0 100
Closing slat TS32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate. 1,5 mm
colour: grey
APN10
 07.311.6655.0 10

colour: blue.
APN 10 blueieski
 07.311.6655.6 10
Closing plate. 2 mm
colour: grey


colour: blue.

4. Separate plate gr. 1,5 mm
colour: grey
TWN10
 07.311.7655.0 10

colour: blue.
TWN10 blueieski
 07.311.7655.6 10
Separate plate gr. 2 mm
colour: grey


colour: blue.

Separate plate gr. 3 mm
colour: grey


colour: blue.

5. short circuit switch, E-Cu

insulated
2-pole.
IVB WKN 10-2
 Z7.283.2227.0 10

3-pole.
IVB WKN 10-3
 Z7.283.2327.0 10

do 12-pole.
IVBWKN10-12
 Z7.283.3227.0 10
6. Single short circuit switch cover
description
ADVB10 yellow
 04.326.2353.8 10
7. Separate plate
TS10 yellow
 07.311.2353.8 10
8. Protection tape
AD VB 10/10 P yellow
 04.342.4056.8 10
Protection tape
AD VB 10/4 yellow
 04.343.5056.8 10



Connectors WKN




  WKN16/U
  cord wire/ multiwire V A

EN 60 947-7-1/DIN VDE 0611T1
4-16 mm2
 1,5-25 mm2 800V/8kV/3 76
DataUL
No. 12-4AWG
   600 V 85/90
DataCSA
No. 14-4 AWG
 600 V 95
Construction width.     insulation length
12 mm
     15mm
Certyficates
  Type Catalogue number Package
Throughout connector
colour: grey
WKN 16/U
 57.516.0155.0 50
Throughout connector EEx 1
colour: blue.
WKN 16/U blueieski
 57.516.0155.6 50
Throughout connector EEx e*)1)
colour: grey
WKN 16/U 2)
 57.516.0155.0 50

Equipment
L = 2m

1. Assembly bus. 35, height. 7,5mm
L = 2m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus. 35, height. 15 mm
L = 2m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly busażowa 32, busG
width. 10 mm
9006 EN 50035 G-32
 98.190.0000.0 1
2. Closing slat
width. 8 mm
WE1/U
 Z5.523.5753.0 100
Closing slat TS35 with screw
width. 7,5 mm
9708/2 S 35
 Z5.522.8553.0 100
Closing slat TS32 with screw
colour: grey
9708
 Z5.522.7053.0 100
3. Closing plate. 1,5 mm
colour: blue.


colour: grey

Closing plate. 2 mm
colour: blue.
APN16
 07.311.6755.0 10

colour: grey
APN16 blueieski
 07.311.6755.6 10
4. Separate plate gr. 1,5 mm
colour: blue.


colour: grey

Separate plate gr. 2 mm
colour: blue.
TWN16
 07.311.7755.0 10

colour: grey
TWN16 blueieski
 07.311.7755.6 1
Separate plate gr. 3 mm
colour: blue.


colour: grey

5. short circuit switch, E-Cu
2-pole.

insulated
3-pole.
IVBWKN16-2
 Z7.284.2227.0 10

do 12-pole.
IVBWKN16-3
 Z7.284.2327.0 10

IVB WKN 16-12
 Z7.284.3227.0 10
6. Single short circuit switch cover

7. Separate plate
TSN 16 yellow
 07.311.8453.8 10
Płytka rozdzielająca z osłoną
TSN AD 16 yellow
 07.311.8553.8 10
8. Protection tape

Protection tape
AD VB12/4 yellow
 04.343.5156.8 10


  Closed execution
WKN 35/U
  cord multiwire V A

EN 60 947-7-1/DIN VDE 0611T1
10-35 mm2
 10-50 mm2 800V/8kV/3 125
DataUL
No. 10-2AWG
   600 V 95/95
DataCSA
No. 12-2 AWG
   600 V 110
Construction width.     insulation length
16 mm
     18 mm
Certificates
<td colspan="2" hei
  Type Catalogue number Package
Throughout connector
colour: grey
WKN35/U
 57.535.0155.0 20
Throughout connector EEx 1
colour: blue.
WKN 35/U blueieski
 57.535.0155.6 20
Throughout connector EEx e*)1)
colour: grey
WKN35/U2)
 57.535.0155.0 20

Equipment
L = 2m

1. Assembly bus. 35, height. 7,5mm
L = 2m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus. 35, height. 15 mm
L = 2m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly 32, busG
width. 10 mm
9006 EN 50035 G-32
 98.190.0000.0 1
2. Closing slat
width. 8 mm
WE2/U
 Z5.523.5653.0 100
Closing slat TS35 with screw
width. 7,5 mm
9708/2 S 35
 Z5.522.8553.0 100
Closing slat TS32 with screw
colour: grey
9708
 Z5.522.7053.0 100
3. Closing plate. 1,5 mm
colour: blue.


colour: grey

Closing plate. 2 mm
colour: blue.


colour: grey

4. Separate plate gr. 1,5 mm
colour: blue.


colour: grey

Separate plate gr. 2 mm
colour: blue.
TWN35
 07.311.7855.0 10

colour: grey
TWN 35 blueieski
 07.311.7855.6 10
Separate plate gr. 3 mm
colour: blue.


colour: grey

5. short circuit switch, E-Cu
2-pole.

insulated
3-pole.
IVB WKN 35-2
 AD VB 35 yellow 5

d 12-pole.
IVB WKN 35-3
 Z7.285.2327.0 5

IVB WKN 35-12
 Z7.285.3227.0 5
6. Single short circuit switch cover
AD VB 35 yellow
 04.326.2553.8 10
7. Separate plate

Separate plate

8. Protection tape

Méně
Přečtěte si více
Komentáře (0)
