Rozhraní AC a DC Semiconductor relé pro DIN lištu
  • Rozhraní AC a DC Semiconductor relé pro DIN lištu

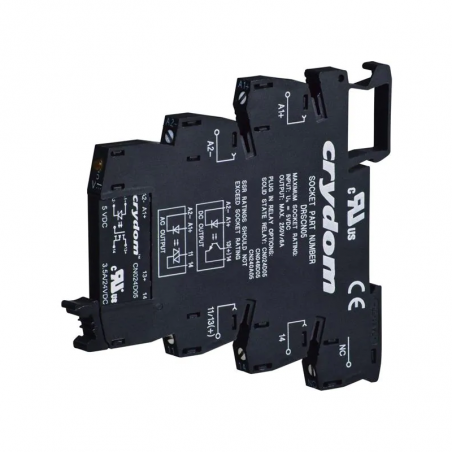

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: Crydom

Rozhraní AC a DC Semiconductor relé pro DIN lištu

Technical data
• DIN assembly
• Relay width 6.2mm
• Load capacity 3.5A/24VDC, 0.1A/48VDCor  2A/240VAC
• Control voltage 5VDC, 24VDC, 120VAC or 220VAC
• LED indication of control voltage
• AC switch for zero crossing turning on

AC relay
Marking Input data Output data I2t
[A2s]
Control voltage
[V]		 Input current
[mA]		 Load current 40OC
[ARMS]		 Voltage range
[VRMS]		 Max voltage
[Vpeak]		 Test curren [A peak]

DRA-CN240A05

 3-12VDC 15mA/5VDC 2A 24-250VAC 600VAC 115A/(20ms) 260

DRA-CN240A24

 15-30VDC 7mA/24VDC 2A 24-250VAC 600VAC 115A/(20ms) 260

DC relay
Marking Input data Output data Test current [A peak]
Control voltage
[V]		 Input current
[mA]		 Load current @ 40OC
[ARMS]		 Voltage range
[VRMS]		 T
turn on		 T
turn off

DRA-CN024D05

 3-12VDC 10mA/5VDC 3.5A 0-24VDC 120µs 100µs 9A(10ms)

DRA-CN024D24

 15-30VDC 9mA/24VDC 3.5A 0-24VDC 350µs 80µs 9A(10ms)

DRA-CN048D05

 3-12VDC 6mA/5VDC 0.1A 0-48VDC 20µs 130µs 300mA(10ms)

DRA-CN048D24

 16-30VDC 7mA/24VDC 0.1A 0-48VDC 20µs 130µs 300mA(10ms)


Dimensions [mm] and charts
