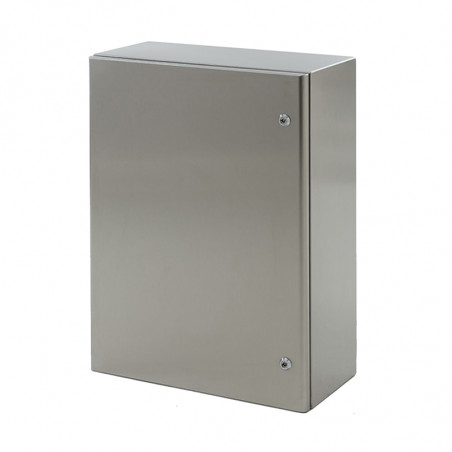

Nerezová ocel Pouzdro Nástěnné montáže FQ / FQL Series
  • Nerezová ocel Pouzdro Nástěnné montáže FQ / FQL Series
  • Nerezová ocel Pouzdro Nástěnné montáže FQ / FQL Series
  • Nerezová ocel Pouzdro Nástěnné montáže FQ / FQL Series

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: FLEXTEC

Nerezová ocel Pouzdro Nástěnné montáže FQ / FQL Series

CONSTRUCTION
AISI 304 Scotch-Brite 240 stainless steel, satin finish Built from one stainless steel sheet, 1,5mm gauge.
M6 fastening holes for direct mounting or wall mounting.
M8 fasteners for back plate mounting.
Four M6 fasteners for earthing.
One-piece foam-in-place polyurethane gasket, mechanical placement, to provide for IP66 protection for long term use 4mm clear polycarbonate window mounted flush with door surface, with EPDM gasketing for FQL models.
Stainless steel hidden door hinges, 120° opening.
Senzimir back plate, 2.0mm gauge.
Two overlapping doors, right on left, for sizes over 1000mm in width.

OPTIONALS
Product can be customized to client's specifics needs: holes, cutouts and different sizes as per your drawings with AISI 316 and specialty stainless steels stainless steel back panel, double-layer glass window, 3+3mm, glued to door.
Accessories, Panel Protection Window, Data Pocket, Cooling Systems, Locking Systems, Cable flange hitch, Rain shield, Wallmounting kit, Pedestal, Gas Pistons
Obudowy ze stali nierdzewnej naścienne seria FQ/FQL akcesoria Obudowy ze stali nierdzewnej naścienne seria FQ/FQL akcesoria Obudowy ze stali nierdzewnej naścienne seria FQ/FQL akcsoria

Wymiary

Obudowy ze stali nierdzewnej naścienne seria FQ/FQL wymiar

BACK PANEL DEPTH SPACE SOLID DOOR
AVAILABLE AREA		 WINDOW AREA
B - 62mm
H - 57mm		 P - 20mm B - 77mm
H - 77mm		 B - 104mm
H - 104mm


Product code Dimensions
B mm H mm P mm

FQ 20 30 15

 200 300 150

FQ 30 30 21

 300 300 210

FQ 30 40 21

 300 400 210

FQ 30 45 21

 300 450 210

FQ 35 40 21

 350 400 210

FQ 35 45 21

 350 450 210

FQ 40 50 25

 400 500 250

FQ 40 60 25

 400 600 250

FQ 40 60 30

 400 600 300

FQ 45 45 21

 450 450 210

FQ 45 60 25

 450 600 250

FQ 45 60 30

 450 600 300

FQ 50 50 25

 500 500 250

FQ 50 65 25

 500 650 250

FQ 50 70 25

 500 700 250

FQ 60 45 25

 600 450 250

FQ 60 60 25

 600 600 250

FQ 60 60 30

 600 600 300

FQ 60 75 25

 600 750 250

FQ 60 75 30

 600 750 300

Specifity model type when ordering:
FQ solid door enclosures - FQL poycarbonate windoe-door enclosure
Product code Dimensions
B mm H mm P mm

FQ 60 80 25

 600 800 250

FQ 60 80 30

 600 800 300

FQ 60 80 40

 600 800 400

FQ 60 90 25

 600 900 250

FQ 60 90 30

 600 900 300

FQ 60 120 30

 600 1200 300

FQ 60 140 30

 600 1400 300

FQ 60 160 40

 600 1600 400

FQ 75 60 25

 750 600 250

FQ 75 100 30

 750 1000 300

FQ 75 120 30

 750 1200 300

FQ 80 100 30

 800 1000 300

FQ 80 120 30

 800 1200 300

FQ 80 120 40

 800 1200 400

FQ 80 140 30

 800 1400 300

FQ 80 160 40

 800 1600 400

*  FQ 100 60 30

 1000 600 300

*  FQ 100 80 30

 1000 800 300

*  FQ 120 60 30

 1200 600 300

*  FQ 120 80 30

 1200 800 300

* Two overlapping doors without centerpost; right block left
