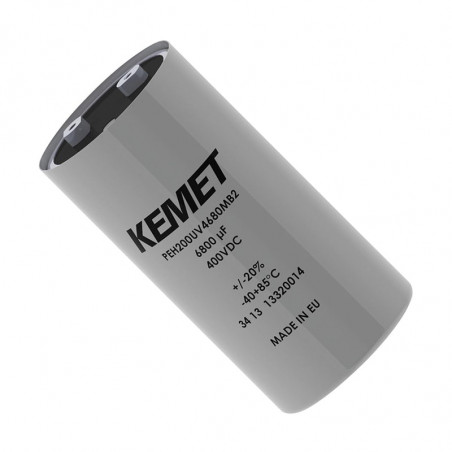

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: KEMET

Série PEH200, + 85 ° C

Series PEH200, +85°C

Marking method



Reference Size [mm] Case Dimensions in [mm]   Fixing screw (M x S) Weight [g]
D L1 L2 L3 a
±1.0 ±1.0 ±1.0 ±1.0 ±0.5 Standard
35 x 51 A 36.6 51.5 54.5 58.9 13.0 M8 x 12 70
35 x 60 B 36.6 59.5 62.5 66.9 13.0 M8 x 12 85
35 x 75 C 36.6 73.5 76.5 80.9 13.0 M8 x 12 105
35 x 95 D 36.6 94.5 97.5 101.9 13.0 M8 x 12 130
50 x 49 G 51.6 48.5 51.5 56.4 22.0 M12 x 16 150
50 x 75 H 51.6 74.5 77.5 82.4 22.0 M12 x 16 180
50 x 95 J 51.6 95.5 98.5 103.4 22.0 M12 x 16 240
50 x 105 K 51.6 103.5 106.5 111.4 22.0 M12 x 16 265
50 x 115 I 51.6 115.5 118.5 123.4 22.0 M12 x 16 300
65 x 105 O 66.6 106.0 109.2 113.0 28.5 M12 x 16 415
65 x 115 Q 66.6 118.0 121.2 125.0 28.5 M12 x 16 460
65 x 130 S 66.6 129.0 132.2 136.0 28.5 M12 x 16 520
65 x 140 R 66.6 141.0 144.2 148.0 28.5 M12 x 16 650
75 x 78 L 76.6 77.0 80.2 84.0 32.0 M12 x 16 430
75 x 98 P 76.6 98.0 101.2 105.0 32.0 M12 x 16 530
75 x 105 T 76.6 106.0 109.2 113.0 32.0 M12 x 16 585
75 x 115 U 76.6 118.0 121.2 125.0 32.0 M12 x 16 640
75 x 145 V 76.6 146.0 149.2 153.0 32.0 M12 x 16 800
75 x 220 X 76.6 221.0 224.2 228.0 32.0 M12 x 16 1400
90 x 78 M 91.6 76.5 79.7 83.4 32.0 M12 x 16 750
90 x 98 N 91.6 97.5 100.7 104.4 32.0 M12 x 16 950
90 x 145 Y 91.6 145.5 148.7 152.4 32.0 M12 x 16 1400
90 x 220 Z 91.6 220.0 224.2 226.9 32.0 M12 x 16 1500

(1) Fastening code: 6 = without fastening screw, 7 = fastening screw
(2) Type of pins (see table)

Type of Terminals


Dimensions Thread Type Dimensions in mm
Style DT b
35 M5 Round 8
50 M5 Round 15 13
65 M5 Round 15 13
75 M5 Round 15 13
90 M5 Round 15 13
UN VDC CN Case Dimensions Ripple current ESR Max L ESL Type
100 Hz 25°C (µF) D x L (mm) 100 Hz 85°C (A) 10 kHz 50°C (A)2 10 kHz 40°C (A) 100 Hz 20°C (mΩ) 100 kHz 20°C (mΩ) Approximate (nH)
25 15000 A 35 x 51 11.9 28.7 19.0 25 21 12 PEH200HA5150M(1)
25 22000 C 35 x 75 15.2 34.3 24.4 17 14 12 PEH200HC5220M(1)
25 33000 D 35 x 95 17.8 38.0 28.1 12 10 12 PEH200HD5330M(1)
25 47000 H 50 x 75 20.2 43.3 30.1 11 10 16 PEH200HH5470M(1)
25 68000 J 50 x 95 23.4 47.4 34.6 8 7 16 PEH200HJ5680M(1)
25 100000 K 50 x 105 23.9 46.1 34.7 7 7 16 PEH200HK6100M(1)
25 150000 O 65 x 105 26.3 50.0 37.2 7 7 16 PEH200HO6150M(1)
25 220000 T 75 x 105 35.0 63.6 49.5 5 5 17 PEH200HT6220M(1)
25 330000 V 75 x 145 40.0 73.1 56.9 4 4 17 PEH200HV6330M(1)
40 6800 A 35 x 51 9.9 27.2 18.1 33 25 12 PEH200KA4680M(1)
40 10000 B 35 x 60 12.0 31.5 21.4 23 18 12 PEH200KB5100M(1)
40 15000 C 35 x 75 14.6 36.1 25.5 16 12 12 PEH200KC5150M(1)
40 22000 D 35 x 95 17.1 39.8 29.2 12 9 12 PEH200KD5220M(1)
40 33000 H 50 x 75 18.9 41.1 28.8 11 9 16 PEH200KH5330M(1)
40 47000 J 50 x 95 22.1 46.3 33.6 8 7 16 PEH200KJ5470M(1)
40 68000 O 65 x 105 25.2 49.9 35.6 7 7 16 PEH200KO5680M(1)
40 100000 O 65 x 105 24.9 46.3 36.9 8 8 16 PEH200KO6100M(1)
40 150000 U 75 x 115 35.7 67.7 51.2 5 4 17 PEH200KU6150M(1)
40 220000 V 75 x 145 34.4 62.3 48.9 5 5 17 PEH200KV6220M(1)
63 4700 A 35 x 51 9.0 26.8 18.0 32 21 12 PEH200MA4470M(1)
63 6800 C 35 x 75 11.5 32.7 23.5 21 14 12 PEH200MC4680M(1)
63 10000 D 35 x 95 13.6 36.0 27.0 15 10 12 PEH200MD5100M(1)
63 15000 H 50 x 75 16.1 37.3 26.5 14 11 16 PEH200MH5150M(1)
63 22000 J 50 x 95 19.0 42.0 30.9 10 8 16 PEH200MJ5220M(1)
63 33000 O 65 x 105 22.8 45.9 34.8 10 8 16 PEH200MO5330M(1)
63 47000 O 65 x 105 21.8 42.7 32.0 10 9 16 PEH200MO5470M(1)
63 68000 U 75 x 115 31.5 61.3 46.8 6 5 17 PEH200MU5680M(1)
63 100000 V 75 x 145 34.3 62.2 50.3 5 5 17 PEH200MV6100M(1)
100 1500 A 35 x 51 5.7 18.0 12.1 92 63 12 PEH200PA4150M(1)
100 2200 B 35 x 60 7.0 21.3 14.7 63 44 12 PEH200PB4220M(1)
100 3300 C 35 x 75 8.7 25.0 17.8 43 30 12 PEH200PC4330M(1)
100 4700 D 35 x 95 10.3 28.9 21.1 31 21 12 PEH200PD4470M(1)
100 6800 H 50 x 75 12.7 30.4 21.5 33 27 16 PEH200PH4680M(1)
100 10000 J 50 x 95 15.3 34.7 25.6 23 19 16 PEH200PJ5100M(1)
100 15000 K 50 x 105 17.3 37.6 27.9 17 14 16 PEH200PK5150M(1)
100 22000 O 65 x 105 19.3 38.7 30.1 15 13 16 PEH200PO5220M(1)
100 33000 T 75 x 105 26.3 53.0 39.8 10 8 17 PEH200PT5330M(1)
100 47000 V 75 x 145 30.8 60.5 47.3 7 6 17 PEH200PV5470M(1)
250 330 A 35 x 51 2.2 13.5 8.7 330 170 12 PEH200SA3330M(1)
250 470 B 35 x 60 2.7 15.9 10.6 240 120 12 PEH200SB3470M(1)
250 680 C 35 x 75 3.4 18.7 13.0 160 84 12 PEH200SC3680M(1)
250 1000 D 35 x 95 4.1 21.2 15.6 110 58 12 PEH200SD4100M(1)
250 1000 G 50 x 49 4.3 20.7 12.6 120 69 16 PEH200SG4100M(1)
250 1500 H 50 x 75 5.9 28.7 19.5 78 42 16 PEH200SH4150M(1)
250 2200 J 50 x 95 7.3 32.5 23.2 54 29 16 PEH200SJ4220M(1)
250 3300 O 65 x 105 10.0 39.8 29.4 38 22 16 PEH200SO4330M(1)
250 3300 L 75 x 78 10.5 43.8 29.6 38 22 17 PEH200SL4330M(1)
250 4700 O 65 x 105 11.3 38.2 27.2 29 18 16 PEH200SO4470M(1)
250 4700 M 90 x 78 12.7 44.2 30.4 30 18 16 PEH200SM4470M(1)
250 6800 T 75 x 105 14.7 51.5 36.5 20 12 17 PEH200ST4680M(1)
250 6800 N 90 x 98 15.8 52.1 37.3 21 13 16 PEH200SN4680M(1)
250 10000 V 75 x 145 18.0 59.0 44.0 14 9 17 PEH200SV5100M(1)
250 12000 V 75 x 145 18.8 58.6 43.6 14 9 17 PEH200SV512AM(1)
250 15000 X 75 x 220 20.6 61.6 49.2 10 6 17 PEH200SX5150M(1)
250 15000 Y 90 x 145 21.8 60.1 45.5 12 8 16 PEH200SY5150M(1)
350 220 A 35 x 51 2.0 13.7 8.8 360 170 12 PEH200UA3220M(1)
350 330 B 35 x 60 2.6 16.6 11.0 240 110 12 PEH200UB3330M(1)
350 470 C 35 x 75 3.2 19.3 13.4 170 79 12 PEH200UC3470M(1)
350 680 D 35 x 95 3.8 21.9 16.0 120 55 12 PEH200UD3680M(1)
350 680 G 50 x 49 4.0 20.7 12.6 130 66 16 PEH200UG3680M(1)
350 1000 H 50 x 75 5.5 28.8 19.5 85 41 16 PEH200UH4100M(1)
350 1500 J 50 x 95 6.8 32.9 23.4 57 28 16 PEH200UJ4150M(1)
350 2200 O 65 x 105 9.4 39.8 29.2 41 21 16 PEH200UO4220M(1)
350 2200 L 75 x 78 9.8 43.5 29.4 41 21 17 PEH200UL4220M(1)
350 3300 O 65 x 105 10.9 38.6 27.5 31 17 16 PEH200UO4330M(1)
350 3300 M 90 x 78 13.1 54.0 37.0 28 15 16 PEH200UM4330M(1)
350 4700 U 75 x 115 14.5 54.7 39.5 20 11 17 PEH200UU4470M(1)
350 4700 N 90 x 98 15.0 51.3 36.7 22 13 16 PEH200UN4470M(1)
350 6800 V 75 x 145 16.8 57.0 42.3 15 8 17 PEH200UV4680M(1)
350 10000 X 75 x 220 19.4 60.8 48.5 11 7 17 PEH200UX5100M(1)
350 10000 Y 90 x 145 23.3 75.2 56.9 11 6 16 PEH200UY5100M(1)
350 15000 Z 90 x 220 27.3 79.8 64.4 8 5 16 PEH200UZ515AM(1)
385 220 A 35 x 51 2.1 14.6 9.3 330 150 12 PEH200XA3220M(1)
385 330 C 35 x 75 2.7 17.0 12.0 220 97 12 PEH200XC3330M(1)
385 470 D 35 x 95 3.3 19.1 14.2 150 69 12 PEH200XD3470M(1)
385 470 G 50 x 49 3.6 20.9 12.8 160 78 16 PEH200XG3470M(1)
385 680 H 50 x 75 4.7 26.8 18.4 110 51 16 PEH200XH3680M(1)
385 1000 J 50 x 95 5.9 31.7 22.8 76 35 16 PEH200XJ4100M(1)
385 1500 K 50 x 105 7.1 34.1 24.7 52 25 16 PEH200XK4150M(1)
385 2200 O 65 x 105 9.6 36.7 26.1 38 20 16 PEH200XO4220M(1)
385 2200 L 75 x 78 10.0 42.7 28.8 38 20 17 PEH200XL4220M(1)
385 3300 T 75 x 105 12.8 52.5 37.4 25 13 17 PEH200XT4330M(1)
385 3300 M 90 x 78 13.3 52.6 36.0 26 14 16 PEH200XM4330M(1)
385 4700 V 75 x 145 15.2 57.6 43.9 19 11 17 PEH200XV4470M(1)
385 4700 N 90 x 98 16.6 62.4 44.4 19 10 16 PEH200XN4470M(1)
385 6800 Y 90 x 145 20.9 74.8 57.2 14 8 16 PEH200XY4680M(1)
385 6800 X 75 x 220 17.4 58.9 47.0 14 8 17 PEH200XX4680M(1)
400 220 A 35 x 51 2.2 11.4 9.6 310 130 12 PEH200VA3220M(1)
400 330 C 35 x 75 2.8 14.3 12.6 210 90 12 PEH200VC3330M(1)
400 470 D 35 x 95 3.4 16.5 14.8 140 63 12 PEH200VD3470M(1)
400 470 G 50 x 49 3.7 15.0 12.7 150 73 16 PEH200VG3470M(1)
400 680 H 50 x 75 4.9 21.2 18.3 110 55 16 PEH200VH3680M(1)
400 1000 J 50 x 95 5.9 24.2 21.3 76 38 16 PEH200VJ4100M(1)
400 1500 O 65 x 105 9.1 49.1 35.1 53 27 16 PEH200VO415AQ(1)
400 1500 L 75 x 78 8.8 34.0 29.0 52 27 17 PEH200VL4150M(1)
400 2200 O 65 x 105 9.6 29.1 25.6 39 21 16 PEH200VO4220M(1)
400 2200 M 90 x 78 11.8 44.1 37.1 36 19 16 PEH200VM4220M(1)
400 3300 O 65 x 105 11.0 30.5 26.7 29 16 16 PEH200VO433AM(1)
400 3300 U 75 x 115 13.8 52.0 45.7 22 10 17 PEH200VU433AQ(1)
400 3300 N 90 x 98 14.9 52.8 45.2 25 13 16 PEH200VN4330M(1)
400 3300 T 75 x 105 13.0 41.5 36.3 26 14 17 PEH200VT4330M(1)
400 4700 V 75 x 145 15.6 57.0 42.5 18 10 17 PEH200VV447AM(1)
400 6800 X 75 x 220 17.6 51.2 47.7 13 8 17 PEH200VX4680M(1)
400 6800 Y 90 x 145 21.4 64.1 56.8 13 7 16 PEH200VY4680M(1)
400 10000 Z 90 x 220 24.7 69.2 64.0 9 5 16 PEH200VZ5100M(1)
420 150 A 35 x 51 1.8 12.1 7.8 400 170 12 PEH200OA3150M(1)
420 220 C 35 x 75 2.3 14.3 10.3 270 110 12 PEH200OC3220M(1)
420 330 D 35 x 95 2.9 16.3 12.3 180 76 12 PEH200OD3330M(1)
420 330 G 50 x 49 3.2 20.4 12.6 190 80 16 PEH200OG3330M(1)
420 470 H 50 x 75 4.2 24.8 17.0 140 62 16 PEH200OH3470M(1)
420 680 J 50 x 95 5.1 28.1 20.4 96 44 16 PEH200OJ3680M(1)
420 1000 K 50 x 105 6.3 32.0 23.2 67 31 16 PEH200OK4100M(1)
420 1500 O 65 x 105 8.8 38.9 28.4 47 23 16 PEH200OO4150M(1)
420 1500 L 75 x 78 9.1 42.3 28.5 47 23 17 PEH200OL4150M(1)
420 2200 T 75 x 105 11.5 51.6 37.0 32 16 17 PEH200OT4220M(1)
420 2200 M 90 x 78 12.2 52.7 36.0 33 17 16 PEH200OM4220M(1)
420 2700 O 65 x 105 12.4 57.3 40.1 24 10 16 PEH200OO427AM(1)
420 3300 V 75 x 145 14.0 57.5 43.7 22 11 17 PEH200OV4330M(1)
420 3300 N 90 x 98 15.4 61.9 44.0 22 12 16 PEH200ON4330M(1)
420 4700 X 75 x 220 15.7 57.6 46.8 16 8 17 PEH200OX4470M(1)
420 4700 Y 90 x 145 18.2 62.2 47.5 17 9 16 PEH200OY4470M(1)
420 8200 Z 90 x 220 23.8 77.3 63.1 10 5 16 PEH200OZ4820M(1)
450 150 A 35 x 51 2.0 14.6 9.3 350 150 12 PEH200YA3150M(1)
450 220 C 35 x 75 2.5 16.8 11.9 240 99 12 PEH200YC3220M(1)
450 330 D 35 x 95 3.1 19.4 14.5 160 66 12 PEH200YD3330M(1)
450 330 G 50 x 49 3.5 20.8 12.7 170 75 16 PEH200YG3330M(1)
450 470 H 50 x 75 4.5 25.5 17.5 120 58 16 PEH200YH3470M(1)
450 680 J 50 x 95 5.5 28.8 20.8 86 41 16 PEH200YJ3680M(1)
450 1000 K 50 x 105 6.7 32.7 23.6 60 29 16 PEH200YK4100M(1)
450 1500 O 65 x 105 9.3 39.2 28.2 43 22 16 PEH200YO4150M(1)
450 1500 L 75 x 78 9.6 42.3 28.5 43 22 17 PEH200YL4150M(1)
450 1800 O 65 x 105 10.6 47.8 34.0 43 22 17 PEH200YO418AM(1)
450 2200 T 75 x 105 12.1 50.1 35.6 29 15 17 PEH200YT4220M(1)
450 2200 M 90 x 78 12.7 52.4 35.8 30 16 16 PEH200YM4220M(1)
450 3300 V 75 x 145 14.7 57.3 43.7 20 10 17 PEH200YV4330M(1)
450 3300 N 90 x 98 16.1 61.9 43.9 21 11 16 PEH200YN4330M(1)
450 4700 X 75 x 220 16.8 59.3 47.6 14 8 17 PEH200YX4470M(1)
450 4700 Y 90 x 145 18.9 61.4 46.9 16 9 16 PEH200YY4470M(1)
450 8200 Z 90 x 220 24.9 77.7 63.4 10 5 16 PEH200YZ4820M(1)
500 100 A 35 x 51 1.5 6.1 3.9 1290 760 12 PEH200ZA3100M(1)
500 150 B 35 x 60 1.9 7.5 4.9 670 390 12 PEH200ZB3150M(1)
500 220 C 35 x 75 2.3 8.4 5.8 570 345 12 PEH200ZC3220M(1)
500 220 G 50 x 49 2.5 10.1 6.1 595 365 12 PEH200ZG3220M(1)
500 330 D 35 x 95 2.9 10.7 7.7 390 234 12 PEH200ZD3330M(1)
500 470 H 50 x 75 4.2 15.8 10.5 280 165 16 PEH200ZH3470M(1)
500 680 J 50 x 95 5.1 18.4 12.8 195 115 16 PEH200ZJ3680M(1)
500 1000 O 65 x 105 6.8 21.4 15.5 130 79 16 PEH200ZO4100M(1)
500 1500 T 75 x 105 9.2 29.8 21.0 90 57 17 PEH200ZT4150M(1)
500 1800 O 65 x 105 10.6 40.9 28.2 71 45 16 PEH200ZO418HM(1)
500 2200 V 75 x 145 11.1 33.7 25.1 62 40 17 PEH200ZV4220M(1)
500 3300 X 75 x 220 12.8 36.5 29.0 43 28 17 PEH200ZX4330M(1)
500 3300 Y 90 x 145 15.7 46.9 35.4 38 24 16 PEH200ZY4330M(1)
500 5600 Z 90 x 220 19.6 53.4 42.6 31 21 16 PEH200ZZ4560M(1)
Méně
Přečtěte si více

Zašlete dotaz

Máte zájem o tento produkt? Potřebujete další informace nebo individuální ceny?

Kontaktujte nás
ZEPTEJTE SE O PRODUKT close
Děkujeme za zaslání zprávy. Odpovíme co nejdříve.
ZEPTEJTE SE O PRODUKT close
Procházet
pošlete dotaz

Přidat do seznamu přání

musíš být přihlášen

Series PEH200, +85°C

Marking method



Reference Size [mm] Case Dimensions in [mm]   Fixing screw (M x S) Weight [g]
D L1 L2 L3 a
±1.0 ±1.0 ±1.0 ±1.0 ±0.5 Standard
35 x 51 A 36.6 51.5 54.5 58.9 13.0 M8 x 12 70
35 x 60 B 36.6 59.5 62.5 66.9 13.0 M8 x 12 85
35 x 75 C 36.6 73.5 76.5 80.9 13.0 M8 x 12 105
35 x 95 D 36.6 94.5 97.5 101.9 13.0 M8 x 12 130
50 x 49 G 51.6 48.5 51.5 56.4 22.0 M12 x 16 150
50 x 75 H 51.6 74.5 77.5 82.4 22.0 M12 x 16 180
50 x 95 J 51.6 95.5 98.5 103.4 22.0 M12 x 16 240
50 x 105 K 51.6 103.5 106.5 111.4 22.0 M12 x 16 265
50 x 115 I 51.6 115.5 118.5 123.4 22.0 M12 x 16 300
65 x 105 O 66.6 106.0 109.2 113.0 28.5 M12 x 16 415
65 x 115 Q 66.6 118.0 121.2 125.0 28.5 M12 x 16 460
65 x 130 S 66.6 129.0 132.2 136.0 28.5 M12 x 16 520
65 x 140 R 66.6 141.0 144.2 148.0 28.5 M12 x 16 650
75 x 78 L 76.6 77.0 80.2 84.0 32.0 M12 x 16 430
75 x 98 P 76.6 98.0 101.2 105.0 32.0 M12 x 16 530
75 x 105 T 76.6 106.0 109.2 113.0 32.0 M12 x 16 585
75 x 115 U 76.6 118.0 121.2 125.0 32.0 M12 x 16 640
75 x 145 V 76.6 146.0 149.2 153.0 32.0 M12 x 16 800
75 x 220 X 76.6 221.0 224.2 228.0 32.0 M12 x 16 1400
90 x 78 M 91.6 76.5 79.7 83.4 32.0 M12 x 16 750
90 x 98 N 91.6 97.5 100.7 104.4 32.0 M12 x 16 950
90 x 145 Y 91.6 145.5 148.7 152.4 32.0 M12 x 16 1400
90 x 220 Z 91.6 220.0 224.2 226.9 32.0 M12 x 16 1500

(1) Fastening code: 6 = without fastening screw, 7 = fastening screw
(2) Type of pins (see table)

Type of Terminals


Dimensions Thread Type Dimensions in mm
Style DT b
35 M5 Round 8
50 M5 Round 15 13
65 M5 Round 15 13
75 M5 Round 15 13
90 M5 Round 15 13
UN VDC CN Case Dimensions Ripple current ESR Max L ESL Type
100 Hz 25°C (µF) D x L (mm) 100 Hz 85°C (A) 10 kHz 50°C (A)2 10 kHz 40°C (A) 100 Hz 20°C (mΩ) 100 kHz 20°C (mΩ) Approximate (nH)
25 15000 A 35 x 51 11.9 28.7 19.0 25 21 12 PEH200HA5150M(1)
25 22000 C 35 x 75 15.2 34.3 24.4 17 14 12 PEH200HC5220M(1)
25 33000 D 35 x 95 17.8 38.0 28.1 12 10 12 PEH200HD5330M(1)
25 47000 H 50 x 75 20.2 43.3 30.1 11 10 16 PEH200HH5470M(1)
25 68000 J 50 x 95 23.4 47.4 34.6 8 7 16 PEH200HJ5680M(1)
25 100000 K 50 x 105 23.9 46.1 34.7 7 7 16 PEH200HK6100M(1)
25 150000 O 65 x 105 26.3 50.0 37.2 7 7 16 PEH200HO6150M(1)
25 220000 T 75 x 105 35.0 63.6 49.5 5 5 17 PEH200HT6220M(1)
25 330000 V 75 x 145 40.0 73.1 56.9 4 4 17 PEH200HV6330M(1)
40 6800 A 35 x 51 9.9 27.2 18.1 33 25 12 PEH200KA4680M(1)
40 10000 B 35 x 60 12.0 31.5 21.4 23 18 12 PEH200KB5100M(1)
40 15000 C 35 x 75 14.6 36.1 25.5 16 12 12 PEH200KC5150M(1)
40 22000 D 35 x 95 17.1 39.8 29.2 12 9 12 PEH200KD5220M(1)
40 33000 H 50 x 75 18.9 41.1 28.8 11 9 16 PEH200KH5330M(1)
40 47000 J 50 x 95 22.1 46.3 33.6 8 7 16 PEH200KJ5470M(1)
40 68000 O 65 x 105 25.2 49.9 35.6 7 7 16 PEH200KO5680M(1)
40 100000 O 65 x 105 24.9 46.3 36.9 8 8 16 PEH200KO6100M(1)
40 150000 U 75 x 115 35.7 67.7 51.2 5 4 17 PEH200KU6150M(1)
40 220000 V 75 x 145 34.4 62.3 48.9 5 5 17 PEH200KV6220M(1)
63 4700 A 35 x 51 9.0 26.8 18.0 32 21 12 PEH200MA4470M(1)
63 6800 C 35 x 75 11.5 32.7 23.5 21 14 12 PEH200MC4680M(1)
63 10000 D 35 x 95 13.6 36.0 27.0 15 10 12 PEH200MD5100M(1)
63 15000 H 50 x 75 16.1 37.3 26.5 14 11 16 PEH200MH5150M(1)
63 22000 J 50 x 95 19.0 42.0 30.9 10 8 16 PEH200MJ5220M(1)
63 33000 O 65 x 105 22.8 45.9 34.8 10 8 16 PEH200MO5330M(1)
63 47000 O 65 x 105 21.8 42.7 32.0 10 9 16 PEH200MO5470M(1)
63 68000 U 75 x 115 31.5 61.3 46.8 6 5 17 PEH200MU5680M(1)
63 100000 V 75 x 145 34.3 62.2 50.3 5 5 17 PEH200MV6100M(1)
100 1500 A 35 x 51 5.7 18.0 12.1 92 63 12 PEH200PA4150M(1)
100 2200 B 35 x 60 7.0 21.3 14.7 63 44 12 PEH200PB4220M(1)
100 3300 C 35 x 75 8.7 25.0 17.8 43 30 12 PEH200PC4330M(1)
100 4700 D 35 x 95 10.3 28.9 21.1 31 21 12 PEH200PD4470M(1)
100 6800 H 50 x 75 12.7 30.4 21.5 33 27 16 PEH200PH4680M(1)
100 10000 J 50 x 95 15.3 34.7 25.6 23 19 16 PEH200PJ5100M(1)
100 15000 K 50 x 105 17.3 37.6 27.9 17 14 16 PEH200PK5150M(1)
100 22000 O 65 x 105 19.3 38.7 30.1 15 13 16 PEH200PO5220M(1)
100 33000 T 75 x 105 26.3 53.0 39.8 10 8 17 PEH200PT5330M(1)
100 47000 V 75 x 145 30.8 60.5 47.3 7 6 17 PEH200PV5470M(1)
250 330 A 35 x 51 2.2 13.5 8.7 330 170 12 PEH200SA3330M(1)
250 470 B 35 x 60 2.7 15.9 10.6 240 120 12 PEH200SB3470M(1)
250 680 C 35 x 75 3.4 18.7 13.0 160 84 12 PEH200SC3680M(1)
250 1000 D 35 x 95 4.1 21.2 15.6 110 58 12 PEH200SD4100M(1)
250 1000 G 50 x 49 4.3 20.7 12.6 120 69 16 PEH200SG4100M(1)
250 1500 H 50 x 75 5.9 28.7 19.5 78 42 16 PEH200SH4150M(1)
250 2200 J 50 x 95 7.3 32.5 23.2 54 29 16 PEH200SJ4220M(1)
250 3300 O 65 x 105 10.0 39.8 29.4 38 22 16 PEH200SO4330M(1)
250 3300 L 75 x 78 10.5 43.8 29.6 38 22 17 PEH200SL4330M(1)
250 4700 O 65 x 105 11.3 38.2 27.2 29 18 16 PEH200SO4470M(1)
250 4700 M 90 x 78 12.7 44.2 30.4 30 18 16 PEH200SM4470M(1)
250 6800 T 75 x 105 14.7 51.5 36.5 20 12 17 PEH200ST4680M(1)
250 6800 N 90 x 98 15.8 52.1 37.3 21 13 16 PEH200SN4680M(1)
250 10000 V 75 x 145 18.0 59.0 44.0 14 9 17 PEH200SV5100M(1)
250 12000 V 75 x 145 18.8 58.6 43.6 14 9 17 PEH200SV512AM(1)
250 15000 X 75 x 220 20.6 61.6 49.2 10 6 17 PEH200SX5150M(1)
250 15000 Y 90 x 145 21.8 60.1 45.5 12 8 16 PEH200SY5150M(1)
350 220 A 35 x 51 2.0 13.7 8.8 360 170 12 PEH200UA3220M(1)
350 330 B 35 x 60 2.6 16.6 11.0 240 110 12 PEH200UB3330M(1)
350 470 C 35 x 75 3.2 19.3 13.4 170 79 12 PEH200UC3470M(1)
350 680 D 35 x 95 3.8 21.9 16.0 120 55 12 PEH200UD3680M(1)
350 680 G 50 x 49 4.0 20.7 12.6 130 66 16 PEH200UG3680M(1)
350 1000 H 50 x 75 5.5 28.8 19.5 85 41 16 PEH200UH4100M(1)
350 1500 J 50 x 95 6.8 32.9 23.4 57 28 16 PEH200UJ4150M(1)
350 2200 O 65 x 105 9.4 39.8 29.2 41 21 16 PEH200UO4220M(1)
350 2200 L 75 x 78 9.8 43.5 29.4 41 21 17 PEH200UL4220M(1)
350 3300 O 65 x 105 10.9 38.6 27.5 31 17 16 PEH200UO4330M(1)
350 3300 M 90 x 78 13.1 54.0 37.0 28 15 16 PEH200UM4330M(1)
350 4700 U 75 x 115 14.5 54.7 39.5 20 11 17 PEH200UU4470M(1)
350 4700 N 90 x 98 15.0 51.3 36.7 22 13 16 PEH200UN4470M(1)
350 6800 V 75 x 145 16.8 57.0 42.3 15 8 17 PEH200UV4680M(1)
350 10000 X 75 x 220 19.4 60.8 48.5 11 7 17 PEH200UX5100M(1)
350 10000 Y 90 x 145 23.3 75.2 56.9 11 6 16 PEH200UY5100M(1)
350 15000 Z 90 x 220 27.3 79.8 64.4 8 5 16 PEH200UZ515AM(1)
385 220 A 35 x 51 2.1 14.6 9.3 330 150 12 PEH200XA3220M(1)
385 330 C 35 x 75 2.7 17.0 12.0 220 97 12 PEH200XC3330M(1)
385 470 D 35 x 95 3.3 19.1 14.2 150 69 12 PEH200XD3470M(1)
385 470 G 50 x 49 3.6 20.9 12.8 160 78 16 PEH200XG3470M(1)
385 680 H 50 x 75 4.7 26.8 18.4 110 51 16 PEH200XH3680M(1)
385 1000 J 50 x 95 5.9 31.7 22.8 76 35 16 PEH200XJ4100M(1)
385 1500 K 50 x 105 7.1 34.1 24.7 52 25 16 PEH200XK4150M(1)
385 2200 O 65 x 105 9.6 36.7 26.1 38 20 16 PEH200XO4220M(1)
385 2200 L 75 x 78 10.0 42.7 28.8 38 20 17 PEH200XL4220M(1)
385 3300 T 75 x 105 12.8 52.5 37.4 25 13 17 PEH200XT4330M(1)
385 3300 M 90 x 78 13.3 52.6 36.0 26 14 16 PEH200XM4330M(1)
385 4700 V 75 x 145 15.2 57.6 43.9 19 11 17 PEH200XV4470M(1)
385 4700 N 90 x 98 16.6 62.4 44.4 19 10 16 PEH200XN4470M(1)
385 6800 Y 90 x 145 20.9 74.8 57.2 14 8 16 PEH200XY4680M(1)
385 6800 X 75 x 220 17.4 58.9 47.0 14 8 17 PEH200XX4680M(1)
400 220 A 35 x 51 2.2 11.4 9.6 310 130 12 PEH200VA3220M(1)
400 330 C 35 x 75 2.8 14.3 12.6 210 90 12 PEH200VC3330M(1)
400 470 D 35 x 95 3.4 16.5 14.8 140 63 12 PEH200VD3470M(1)
400 470 G 50 x 49 3.7 15.0 12.7 150 73 16 PEH200VG3470M(1)
400 680 H 50 x 75 4.9 21.2 18.3 110 55 16 PEH200VH3680M(1)
400 1000 J 50 x 95 5.9 24.2 21.3 76 38 16 PEH200VJ4100M(1)
400 1500 O 65 x 105 9.1 49.1 35.1 53 27 16 PEH200VO415AQ(1)
400 1500 L 75 x 78 8.8 34.0 29.0 52 27 17 PEH200VL4150M(1)
400 2200 O 65 x 105 9.6 29.1 25.6 39 21 16 PEH200VO4220M(1)
400 2200 M 90 x 78 11.8 44.1 37.1 36 19 16 PEH200VM4220M(1)
400 3300 O 65 x 105 11.0 30.5 26.7 29 16 16 PEH200VO433AM(1)
400 3300 U 75 x 115 13.8 52.0 45.7 22 10 17 PEH200VU433AQ(1)
400 3300 N 90 x 98 14.9 52.8 45.2 25 13 16 PEH200VN4330M(1)
400 3300 T 75 x 105 13.0 41.5 36.3 26 14 17 PEH200VT4330M(1)
400 4700 V 75 x 145 15.6 57.0 42.5 18 10 17 PEH200VV447AM(1)
400 6800 X 75 x 220 17.6 51.2 47.7 13 8 17 PEH200VX4680M(1)
400 6800 Y 90 x 145 21.4 64.1 56.8 13 7 16 PEH200VY4680M(1)
400 10000 Z 90 x 220 24.7 69.2 64.0 9 5 16 PEH200VZ5100M(1)
420 150 A 35 x 51 1.8 12.1 7.8 400 170 12 PEH200OA3150M(1)
420 220 C 35 x 75 2.3 14.3 10.3 270 110 12 PEH200OC3220M(1)
420 330 D 35 x 95 2.9 16.3 12.3 180 76 12 PEH200OD3330M(1)
420 330 G 50 x 49 3.2 20.4 12.6 190 80 16 PEH200OG3330M(1)
420 470 H 50 x 75 4.2 24.8 17.0 140 62 16 PEH200OH3470M(1)
420 680 J 50 x 95 5.1 28.1 20.4 96 44 16 PEH200OJ3680M(1)
420 1000 K 50 x 105 6.3 32.0 23.2 67 31 16 PEH200OK4100M(1)
420 1500 O 65 x 105 8.8 38.9 28.4 47 23 16 PEH200OO4150M(1)
420 1500 L 75 x 78 9.1 42.3 28.5 47 23 17 PEH200OL4150M(1)
420 2200 T 75 x 105 11.5 51.6 37.0 32 16 17 PEH200OT4220M(1)
420 2200 M 90 x 78 12.2 52.7 36.0 33 17 16 PEH200OM4220M(1)
420 2700 O 65 x 105 12.4 57.3 40.1 24 10 16 PEH200OO427AM(1)
420 3300 V 75 x 145 14.0 57.5 43.7 22 11 17 PEH200OV4330M(1)
420 3300 N 90 x 98 15.4 61.9 44.0 22 12 16 PEH200ON4330M(1)
420 4700 X 75 x 220 15.7 57.6 46.8 16 8 17 PEH200OX4470M(1)
420 4700 Y 90 x 145 18.2 62.2 47.5 17 9 16 PEH200OY4470M(1)
420 8200 Z 90 x 220 23.8 77.3 63.1 10 5 16 PEH200OZ4820M(1)
450 150 A 35 x 51 2.0 14.6 9.3 350 150 12 PEH200YA3150M(1)
450 220 C 35 x 75 2.5 16.8 11.9 240 99 12 PEH200YC3220M(1)
450 330 D 35 x 95 3.1 19.4 14.5 160 66 12 PEH200YD3330M(1)
450 330 G 50 x 49 3.5 20.8 12.7 170 75 16 PEH200YG3330M(1)
450 470 H 50 x 75 4.5 25.5 17.5 120 58 16 PEH200YH3470M(1)
450 680 J 50 x 95 5.5 28.8 20.8 86 41 16 PEH200YJ3680M(1)
450 1000 K 50 x 105 6.7 32.7 23.6 60 29 16 PEH200YK4100M(1)
450 1500 O 65 x 105 9.3 39.2 28.2 43 22 16 PEH200YO4150M(1)
450 1500 L 75 x 78 9.6 42.3 28.5 43 22 17 PEH200YL4150M(1)
450 1800 O 65 x 105 10.6 47.8 34.0 43 22 17 PEH200YO418AM(1)
450 2200 T 75 x 105 12.1 50.1 35.6 29 15 17 PEH200YT4220M(1)
450 2200 M 90 x 78 12.7 52.4 35.8 30 16 16 PEH200YM4220M(1)
450 3300 V 75 x 145 14.7 57.3 43.7 20 10 17 PEH200YV4330M(1)
450 3300 N 90 x 98 16.1 61.9 43.9 21 11 16 PEH200YN4330M(1)
450 4700 X 75 x 220 16.8 59.3 47.6 14 8 17 PEH200YX4470M(1)
450 4700 Y 90 x 145 18.9 61.4 46.9 16 9 16 PEH200YY4470M(1)
450 8200 Z 90 x 220 24.9 77.7 63.4 10 5 16 PEH200YZ4820M(1)
500 100 A 35 x 51 1.5 6.1 3.9 1290 760 12 PEH200ZA3100M(1)
500 150 B 35 x 60 1.9 7.5 4.9 670 390 12 PEH200ZB3150M(1)
500 220 C 35 x 75 2.3 8.4 5.8 570 345 12 PEH200ZC3220M(1)
500 220 G 50 x 49 2.5 10.1 6.1 595 365 12 PEH200ZG3220M(1)
500 330 D 35 x 95 2.9 10.7 7.7 390 234 12 PEH200ZD3330M(1)
500 470 H 50 x 75 4.2 15.8 10.5 280 165 16 PEH200ZH3470M(1)
500 680 J 50 x 95 5.1 18.4 12.8 195 115 16 PEH200ZJ3680M(1)
500 1000 O 65 x 105 6.8 21.4 15.5 130 79 16 PEH200ZO4100M(1)
500 1500 T 75 x 105 9.2 29.8 21.0 90 57 17 PEH200ZT4150M(1)
500 1800 O 65 x 105 10.6 40.9 28.2 71 45 16 PEH200ZO418HM(1)
500 2200 V 75 x 145 11.1 33.7 25.1 62 40 17 PEH200ZV4220M(1)
500 3300 X 75 x 220 12.8 36.5 29.0 43 28 17 PEH200ZX4330M(1)
500 3300 Y 90 x 145 15.7 46.9 35.4 38 24 16 PEH200ZY4330M(1)
500 5600 Z 90 x 220 19.6 53.4 42.6 31 21 16 PEH200ZZ4560M(1)
Méně
Přečtěte si více
Komentáře (0)
