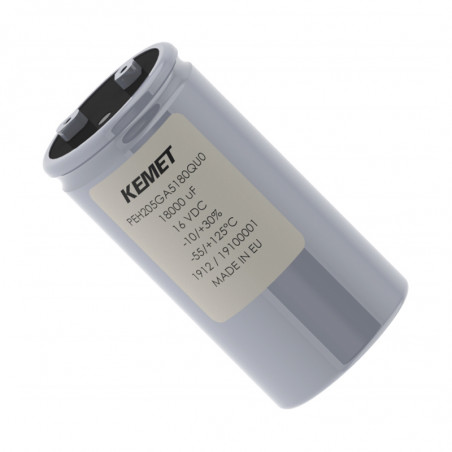

PEH205 Series, + 125 ° C
  • PEH205 Series, + 125 ° C

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: KEMET

PEH205 Series, + 125 ° C

Series PEH205, +125°C



Marking method

PEH205 G A 518 0 Q U0
Series Rated voltage (VDC) Casing Code Capacitance Code (μF) Version Capacitance Tolerance Mounting Method
Electrolytic Capacitor G = 16
H = 25
K = 40
L = 55
M = 63
P = 100		 See table The last two digits represent significant figures. The first digit specifies the total number of digits. 0 = Standard Q = −10 + 30%

U0 = without fastening screw
B0 = clamping screw

Special features

Item Special features
Capacitance range 1,500 – 390,000 µF
Voltage range 16 – 100 VDC
Operating Temperature −55 to +125°C
Capacity tolerance −10/+30% at 100 Hz/+20°C
Life Time D (mm) VN i IR w +125°C (h)
D ≤ 50 4,000
D > 50 8,000
Storage time 2,000 hours at +85°C or 30,000 hours at +40°C 0 VDC
Norms IEC 60384–4 long

Tabela wymiarów


  Reference Size (mm)   Casing Dimensions in [mm] Weight [g]
D L1 L3 a Fixing screw (M x H)
±0.4 ±1.0 ±1.0 ±0.5 Nominal
35 x 51 A 35.0 51.5 58.0 13.0 M8 x 12 70.0
35 x 75 C 35.0 73.5 80.0 13.0 M8 x 12 105.0
35 x 95 D 35.0 94.5 101.0 13.0 M8 x 12 130.0
50 x 75 H 50.0 74.5 81.0 22.0 M12 x 16 180.0
65 x 105 O 65.0 106.0 111.3 28.5 M12 x 16 415.0
75 x 105 T 75.0 106.0 111.3 32.0 M12 x 16 585.0
75 x 145 V 75.0 146.0 151.3 32.0 M12 x 16 800.0

Type of Terminals

Reference Diameter Thread Style Dimensions in [mm]
d b
35 M5 Okrągły 8
50 M5 Owalne 15 13
65 M5 Owalne 15 13
75 M5 Owalne 15 13
UN
VDC		 CN Casing Dimensions Ripple current ESR Max Maximun Impedance Type
100 Hz 20°C (µF) D x L (mm) 100 Hz 125°C (A) 100 Hz 85°C (A) 100 Hz 40°C (A) 100 Hz 20°C (mΩ) 10 kHz 20°C (mΩ)
16 18000 A 35 x 51 6.2 17.2 24.2 23 16 PEH205GA5180Q(1)
16 33000 C 35 x 75 8.1 22.5 31.6 15 11 PEH205GC5330Q(1)
16 39000 D 35 x 95 8.5 23.6 33.1 13 9 PEH205GD5390Q(1)
16 68000 H 50 x 75 13.7 37.8 53.1 10 8 PEH205GH5680Q(1)
16 180000 O 65 x 105 17.4 48.1 67.5 6 7 PEH205GO6180Q(1)
16 270000 T 75 x 105 22.9 63.3 80.0 6 8 PEH205GT6270Q(1)
16 390000 V 75 x 145 24.8 68.8 80.0 6 8 PEH205GV6390Q(1)
25 10000 A 35 x 51 5.3 14.7 20.7 27 17 PEH205HA5100Q(1)
25 18000 C 35 x 75 7.0 19.4 27.2 17 11 PEH205HC5180Q(1)
25 22000 D 35 x 95 7.5 20.6 29.0 15 10 PEH205HD5220Q(1)
25 39000 H 50 x 75 12.0 33.4 46.8 11 8 PEH205HH5390Q(1)
25 120000 O 65 x 105 19.8 54.8 76.9 7 7 PEH205HO6120Q(1)
25 180000 T 75 x 105 20.8 57.7 80.0 7 8 PEH205HT6180Q(1)
25 270000 V 75 x 145 23.5 65.1 80.0 6 8 PEH205HV6270Q(1)
40 4700 A 35 x 51 4.8 13.2 18.5 32 17 PEH205KA4470Q(1)
40 10000 C 35 x 75 6.8 18.9 26.6 18 10 PEH205KC5100Q(1)
40 15000 D 35 x 95 8.1 22.4 31.5 15 9 PEH205KD5150Q(1)
40 22000 H 50 x 75 11.7 32.4 45.5 11 8 PEH205KH5220Q(1)
40 47000 O 65 x 105 18.1 50.1 70.4 7 7 PEH205KO5470Q(1)
40 68000 T 75 x 105 19.9 55.2 77.6 7 8 PEH205KT5680Q(1)
40 100000 V 75 x 145 22.2 61.5 80.0 6 8 PEH205KV6100Q(1)
55 3300 A 35 x 51 4.4 12.2 17.2 40 23 PEH205LA4330Q(1)
55 5600 C 35 x 75 5.8 16.1 22.7 25 15 PEH205LC4560Q(1)
55 8200 D 35 x 95 7.0 19.3 27.1 19 12 PEH205LD4820Q(1)
55 12000 H 50 x 75 10.3 28.4 39.9 17 9 PEH205LH5120Q(1)
55 33000 O 65 x 105 17.3 48.0 67.4 8 8 PEH205LO5330Q(1)
55 47000 T 75 x 105 19.0 52.7 74.0 8 8 PEH205LT5470Q(1)
55 68000 V 75 x 145 21.7 60.0 80.0 7 8 PEH205LV5680Q(1)
63 2200 A 35 x 51 4.1 11.4 16.1 43 24 PEH205MA4220Q(1)
63 4700 C 35 x 75 6.1 17.0 23.8 24 14 PEH205MC4470Q(1)
63 6800 D 35 x 95 7.2 19.9 28.0 19 11 PEH205MD4680Q(1)
63 10000 H 50 x 75 10.1 27.9 39.2 14 9 PEH205MH5100Q(1)
63 22000 O 65 x 105 16.3 45.2 63.4 9 8 PEH205MO5220Q(1)
63 33000 T 75 x 105 18.0 49.7 69.9 9 9 PEH205MT5330Q(1)
63 47000 V 75 x 145 20.7 57.3 80.0 7 8 PEH205MV5470Q(1)
100 1500 A 35 x 51 3.0 8.4 11.7 83 53 PEH205PA4150Q(1)
100 2200 C 35 x 75 3.7 10.3 14.4 56 36 PEH205PC4220Q(1)
100 3300 D 35 x 95 4.7 13.0 18.3 37 26 PEH205PD4330Q(1)
100 4700 H 50 x 75 6.9 19.0 26.7 29 19 PEH205PH4470Q(1)
100 15000 O 65 x 105 13.4 37.0 51.9 13 10 PEH205PO5150Q(1)
100 22000 T 75 x 105 15.2 42.0 59.0 11 10 PEH205PT5220Q(1)
100 33000 V 75 x 145 18.5 51.2 71.8 9 9 PEH205PV5330Q(1)

(1) Fastening code: U0 = without fastening screw, B0 = fastening screw

Marking
