Výrobce: FLEXTEC

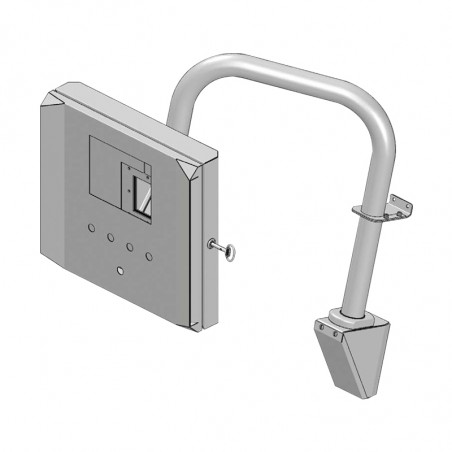

SideCom - z nerezové oceli suspenze

Application
Range of tubular fixtures of variable size.

Costruction
Tubular arms in stainless steel available in 48.5mm and 60.5 mm
diameter, thickness of 3.0mm, curvature radius 180°.
Available in 4 different formats:
L-shaped, code FML
J-shaped, code FMJ
S-shaped, code FMS
straight, code FMI
custom length.

Optionals
Product can be customized to client's specifics needs:
holes, cutouts and different sizes as per your drawings
with AISI 316 and specialty stainless steels.
Micropeened finish.

Accessories
Joint
Flange
Wall-mounting brackets for joints


Graphical representation of the decrease in the tube according to the weight applied and its overhang.



Dimension

sideCOM - system zawieszeń ze stali nierdzewnej wymiary


Product code * Dimensions
A mm B mm C mm

FMJ

 min 450 min 245 min 300

FML

 min 245 min 245 //

FMS

 min 250 min 245 min 245

FMI

 // min 300 //
* minimum requested size

Adjustable joints, flanges

sideCOM - system zawieszeń ze stali nierdzewnej akcesoria
Product code Description Q.ty

SND 48

 Adjustable Joint 360° Ø 48,3 mm 1

SND 60

 Adjustable Joint 360° Ø 60,3 mm 1

SNF 48

 Joint Ø 48,3 mm 1

SNF 60

 Joint Ø 60,3 mm 1

SNF 48 01

 Wall-mounting bracket Ø 48,3 mm 1

SNF 60 01

 Wall-mounting bracket Ø 60,3 mm 1

SNF 48 02

 Arm fixing flange Ø 48,3 mm 1

SNF 60 02

 Arm fixing flange Ø 60,3 mm 1
