Výrobce: Flexelec

Kabely izolované s CS2 silikonovým elastomerem - CS2 / T - CS2 / tw

Aplications

CS2, CS2/T and CS2/TW heating cables are mainly used in the household electrical and refrigeration industries and for machines where protection against freezing or temperature maintenance is necessary. To ensure that these heating elements enjoy a long service life, we recommend using a control device.


Characterictics

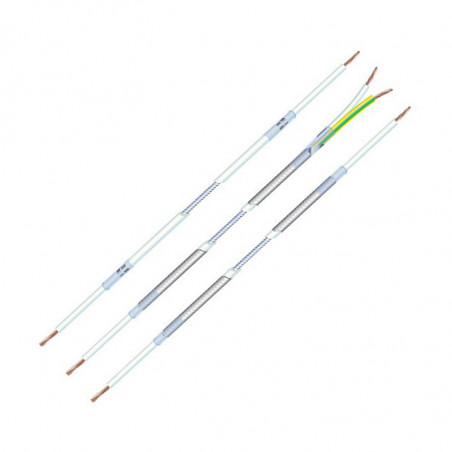

  • Power cable: standard length: 1 m.
  • CS2: silicon elastomer insulated heating elements.
  • CS2/T: silicon elastomer insulated heating elements with tinned copper braid and earthing conductor.
  • CS2/TW: silicon elastomer insulated heating elements with tinned copper braid for mechanical protection, no earthing conductor.


  CS CS2/T   CS2/TW
Heating wire nickel-copper or nickel-chrome
Insultaion Silicon elastomer
Diameter 2.3 to 3.5 mm 3 mm to 4 mm
Max. power 30 W/m
Voltage Any voltage on requestup to 500 V
Permissible surface temperature from - 70°C to + 200°C
Tolerances Resistance ± 10 %
Diameter + 0.2 /- 0.1 mm
Length: ± 1 %
Connection insulation Heat-shrink sheath with adhesive
