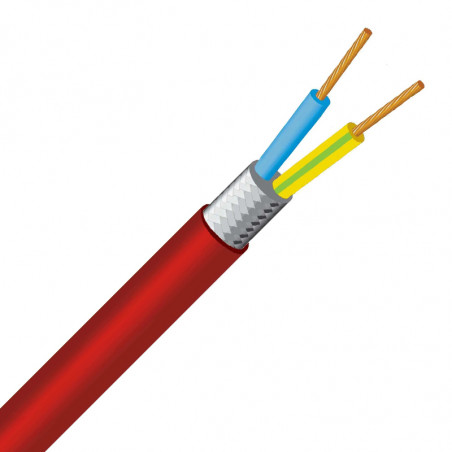

SILIFLAM TX-500 K - ohnivzdorné kabely
  • SILIFLAM TX-500 K - ohnivzdorné kabely

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: OMERIN

SILIFLAM TX-500 K - ohnivzdorné kabely

Characteristics

  • Rated voltage: 300/500 V.
  • Maximum core temperature: +90 °C.
  • Minimum bending radius: 10 x diameter

Standard products

  • Outer sheath: brick red.

Approvals - standards

  • Fire-resistant as per NF C 32-070 CR1 test (voltage 300/500 V).
  • Fire-resistant as per IEC 60331-21 90 minutes (voltage 600/1000 V).
  • Fire retardant as per NF C 32-070 test C1, IEC 60332-3-22 and IEC 60332-3-24.
  • Flame retardant as per NF C 32-070 test C2 and IEC 60332-1-2.
  • Halogen free as per IEC 60754-1.
  • No smoke corrosiveness as per IEC 60754-2.
  • Low smoke opacity as per IEC 61034-2.
  • Accepted to the NF-USE certification mark as per standards NF C 32-070 and NF C 32-310.

Applications

  • Fire safety circuits in public-access or high-rise buildings.

Options

  • Electrical shielding: tin-plated copper braid: reference SILIFLAM 500 TX-K BE.
  • Solid or stranded bare copper core: reference PYRISOL 500 EN.
SILIFLAM 500 TX- kable ognioodporne

1 • Flexible bare copper core, class 5 as per IEC 60228
2 • EI2 fire-resistant elastomer insulation
3 • Outer sheath in fire-resistant elastomer.


Conducting core/sheath*
Cross-sections Stranding Outside diameter (mm)
2 x 1.5 30 x 0.25 9.6
3 x 1.5 30 x 0.25 10.2
4 x 1.5 30 x 0.25 11.1
5 x 1.5 30 x 0.25 12.3
2 x 2.5 50 x 0.25 10.8
3 x 2.5 50 x 0.25 11.5
4 x 2.5 50 x 0.25 12.8
5 x 2.5 50 x 0.25 13.6
2 x 4 56 x 0.30 12.6
3 x 4 56 x 0.30 13.4
4 x 4 56 x 0.30 14.5
5 x 4 56 x 0.30 16.0
1 x 6 84 x 0.30 5.7
2 x 6 84 x 0.30 14.0
3 x 6 84 x 0.30 14.9
4 x 6 84 x 0.30 16.3
5 x 6 84 x 0.30 18.0
1 x 10 80 x 0.40 7.3
2 x 10 80 x 0.40 17.4
3 x 10 80 x 0.40 18.5
4 x 10 80 x 0.40 20.4
5 x 10 80 x 0.40 22.6
1 x 16 126 x 0.40 8.6
2 x 16 126 x 0.40 20.2
3 x 16 126 x 0.40 21.5
4 x 16 126 x 0.40 23.7
5 x 16 126 x 0.40 26.3
1 x 25 196 x 0.40 13.5
2 x 25 196 x 0.40 24.0
3 x 25 196 x 0.40 25.6
4 x 25 196 x 0.40 28.3
5 x 25 196 x 0.40 31.5
1 x 35 276 x 0.40 11.6
1 x 50 396 x 0.40 13.4
1 x 70 360 x 0.50 15.9
1 x 95 485 x 0.50 17.9
1 x 120 608 x 0.50 19.8
1 x 150 756 x 0.50 22.9
1 x 185 944 x 0.50 25.0
1 x 240 1221 x 0.50 27.5
