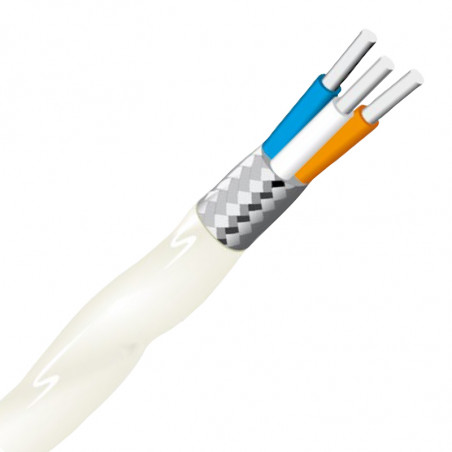

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: OMERIN

SILIFLON KU-03 KU-04 KU-05 KU-06 -55 ° C až + 150 ° C

Characteristics

  • Continuous operating temperatures: -55 °C to +150 °C
  • Excellent resistance to aggressive chemical environments.
  • Excellent resistance to humidity and UV
  • Excellent mechanical strength.
  • Rated voltage: 600V AC/850V DC,
  • Test voltage:

KU 03 i KU 04 – 3400V AC
KU 05 i Ku 06 – 1500V AC

Standard products

  • Standard conductor colours of the pair: white and blue.
  • Standard conductor colours of the triple: white, blue and orange.
  • Standard outer sheath colour: white.

Approvals - standards

  • NF approval as per standard NF C 93-523 – Approval certificate no. NF/96-026.

Applications

  • Wires used in aeronautical, electronic and all instrumentation applications requiring high resistance to high temperatures and to chemical influences.

Options

  • Other colours: contact us.

PRZEWODNIK ( TYP KU 01) KU-03 KU-04 KU-05 KU-06
Nominal cross-section AWG (mm²) Nominal stranding Maximum linear resistance at 20 °C (Ω/km) Nominal diameter (mm) Nominal diameter (mm) Approximate linear weight (kg/km) Nominal diameter (mm) Approximate linear weight (kg/km) Nominal diameter (mm) Approximate linear weight (kg/km) Nominal diameter (mm) Approximate linear weight (kg/km)
30 0.05 7 x 0.10 365.4 0.63 1.26 1.8 1.36 2.7 2.10 8.7 2.31 10.2
28 0.09 7 x 0.13 208.0 0.69 1.38 2.6 1.48 3.9 2.22 9.8 2.43 11.6
26 0.15 19 x 0.10 128.7 0.81 1.62 3.8 1.74 5.8 2.47 11.8 2.68 13.9
24 0.25 19 x 0.13 76.6 0.91 1.82 5.7 1.96 8.5 2.76 15.0 2.89 18.5
22 0.38 19 x 0.16 50.3 1.10 2.20 8.5 2.37 12.7 3.14 21.0 3.30 25.3
20 0.60 19 x 0.20 32.1 1.52 3.04 13.9 3.27 20.9 3.97 30.4 4.22 38.4
18 0.93 19 x 0.25 20.6 1.80 3.60 21.2 3.87 31.8 4.54 42.5 4.82 51.3
16 1.34 19 x 0.30 14.3 2.00 4.00 29.1 4.30 43.6 4.94 5.24 5.24 65.9
14 1.82 37 x 0.25 10.6 2.36 4.72 39.4 5.08 59.1 5.72 67.7 6.09 90.9
12 3.00 37 x 0.32 6.5 2.89 5.78 72.9 6.22 109 6.78 114 7.24 146
