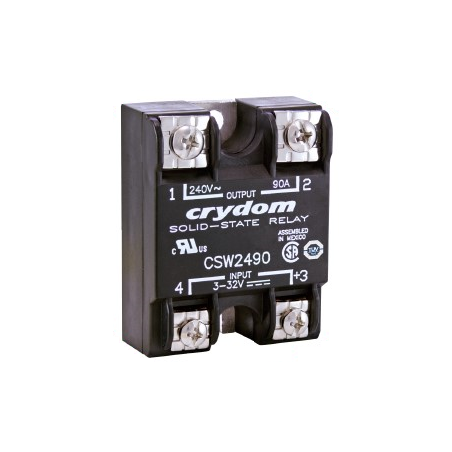

SÉRIE CSW
  • SÉRIE CSW

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: Crydom

SÉRIE CSW

Features

  • Range from 10 A to 90 A at 24-280 VAC
  • Input range: 3-32 VDC
  • Low leakage current in off-state (zero-crossing)
  • SCR output for high industrial loads
  • EMC compliance for reliable operation in harsh environments
  • Replaces CSD and CSE relay series
  • Improved SEMS screws and washer
  • Redesigned housing with anti-rotation barriers
  • Direct connection to copper base
  • Direct power connection
  • Construction without epoxy resin

Product Selection

Control Voltage 10 A 25 A 50 A 75 A 90 A
3-32 VDC CSW2410 CSW2425 CSW2450 CSW2475 CSW2490


Series
CSW
Load Voltage
240: 24-280 VAC
Rated Load Current
10: 10 amperes
25: 25 amperes
50: 50 amperes
75: 75 amperes
90: 90 amperes
Mounting
Puste: screws
F: Quick Connect (up to 50 amperes, single pair (up to 25 amperes), double pair (up to 50 amperes))
K: Hex bases for PCB mounting
Surge Protection
Puste: not included
P: included
Input LED Status
Puste: not included
G: included
Surge Suppressor
Puste: not included
H: included
Thermal Pad
Puste: not included
H: included
Switching Type
Empty: Zero-crossing
-10: Instant-on


Required for valid part number
Only optional and not required for valid part number

Output Specification

Description 10 A 25 A 50 A 75 A 90 A
Operating Voltage (47-63Hz) [Vrms] 24-280 24-280 24-280 24-280 24-280
Transient Overvoltage [Vpk] 600 600 600 600 600
Maximum Leakage Current at Rated Voltage [mArms] 1 1 1 1 1
Minimum dV/dt in OFF-state at Maximum Rated Voltage [V/μsec] 500 500 500 500 500
Maximum Load Current [Adc] 10 25 50 75 90
Minimum Load Current [mArms] 150 150 150 150 150
Maximum Single Half-cycle Surge Current (50/60Hz) [Apk] 115/120 239/250 597/625 954/1000 111/91
Maximum Voltage Drop during ON-state at Rated Load Current [V] 1.15 1.15 1.15 1.15 1.15
Thermal Resistance Junction-Case (Rjc) [°C/W] 1.03 0.8 0.45 0.3 0.27
Maximum I2t for Fusing (½ cycle) (50/60Hz) [A2sec] 66/60 285/259 1770/1621 4555/4150 6560/5976
Minimum Power Factor (at Maximum Load) 0.5 0.5 0.5 0.5 0.5


Input Specification

Description Parameters
Control Voltage Range 3-32 VDC
Minimum Turn-On Voltage 3 VDC
Required Turn-Off Voltage 1.0 VDC
Maximum Reverse Voltage -32 VDC
Typical Input Current 10 mA at 12 VDC
Rated Input Impedance Active current limiting
Maximum Turn-On Time [msec] ½ cycle
Maximum Turn-Off Time [msec] ½ cycle


General Specification

Description Parameters
Dielectric Strength, Input to Output (50/60Hz) 4000 Vrms
Minimum Insulation Resistance (at 500V DC) 109 Ohms
Maximum Capacitance, Input/Output 8pF
Ambient Temperature Range, Operating -40 to 80 degrees Celsius
Ambient Temperature Range, Storage -40 to 125 degrees Celsius
Weight (Typical) 74.9 g
Enclosure Material UL94 V-0
Base Plate Material Aluminium
Input Terminal Screw Torque (Nm) 1.5-1.7
Load Terminal Screw Torque (Nm) 2-2.2
Mounting Screw Torque for SSR (Nm) 2-2.2
Input/Load Screw Torque Range (Nm) with option K: 0.9-1.13
Thread Size of Input/Output Terminal Screw #6-32 UNC / #8-32 UNC
Humidity for IEC 60068-2-78 93% non-condensing
LED Status Indicator With option G: green
MTBF (Mean Time Between Failures) at 40 degrees Celsius ambient 11,641,553 hours (1,328 years)
MTBF (Mean Time Between Failures) at 60 degrees Celsius ambient 7,210,376 hours (823 years)
