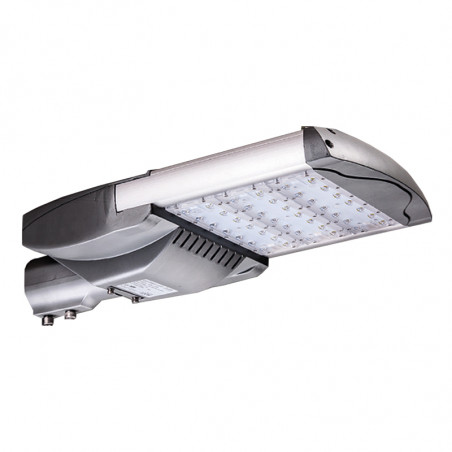

LED pouliční lampy

The light distribution of the pole light-series is generated by a special optic. Because of this optic a traditional re ector is not needed anymore. By using these optics the lumen loss gets reduced and the whole lamp e ciency getsbetter. By using asymmetric wide beam optics we can create light distributions for almost every scenario. Mounting heights of 20 metres are not a problem for these lamps. The photometrical  les of these luminaires can be downloaded on our homepage.

To get a relieable and e cient light source we have chosen a diode from the well known company Philips. These LEDs have great light quality, high e ciency and long life span. This means low maintenance intervals and thus for a cost-e ective and economic use outdoors.


Technical details:

• Compact and light weight design,
• different power options between 35 W- 235 W,
• lumen output between 3.325- 21.850 lumens,
• standard light color 5.000 Kelvin (others on request),
• high CRI >70 (higher on request),
• dimmable ballast optional available,
• perfect thermal managment,
• high protection grade IP65 / IK08
• up to 95 lm/W total efficiency,
• long lifespan - 60.000 h at T 25°C
• light creates high contrast outdoors,
• 100% light power by switching on,
• great light distribution

Product number	Optyka	Lumeny [lm]	Moc [W]	Waga [kg]	Ilosc LED
ML-21030-5000-HE	Asymmetric wide beam	3.325	35	5,3	14
ML-21060-5000-HE	Asymmetric wide beam	6.175	65	6,1	28
ML-21090-5000-HE	Asymmetric wide beam	9.500	100	7,3	42
ML-21120-5000-HE	Asymmetric wide beam	12.825	135	8,2	56
ML-21150-5000-HE	Asymmetric wide beam	15.675	165	9,0	70
ML-21180-5000-HE	Asymmetric wide beam	19.000	200	9,9	84
ML-21210-5000-HE	Asymmetric wide beam	21.850	230	10,8	98

ML - 21030 - 5000 - HE installation advice: 4 - 6 metres	ML - 21060 - 5000 - HE installation advice: 5 - 8 metres
ML - 21090 - 5000 - HE installation advice: 7 - 10 metres	ML - 21120 - 5000 - HE installation advice: 8 - 12 metres
ML - 21150 - 5000 - HE installation advice: 10 - 13 metres	ML - 21180 - 5000 - HE installation advice: 10 - 15 metres
ML - 21210 - 5000 - HE installation advice: 12 - 20 metres

• color temperature LEDs 5.000 K/750 (others optional)
• simple electronic driver without functions
• mounting accessories for entry and top mounting for pole diameter Φ60mm
• optional with a dimmable electronic driver, dimmable over 1-10V DC interface, PWM or resistance, on request also DALI-interface
• optional with built-in photocell for automatically switch-on and switch-o
